Re: HB W.29 Aircraft 2760 in British Markings
« Reply #30 on: February 16, 2021, 03:22:37 AM »
It's great to see an update on this build. The engine is looking good.

                                                                       Kevin

I agree with Kevin. Your added details are excellent!
RAGIII

THank you. I am trying to get there.

Offline fredjocko

  • Sr. Member
  • ****
  • Posts: 436
Re: HB W.29 Aircraft 2760 in British Markings
« Reply #31 on: February 16, 2021, 03:23:03 AM »
I've been missing this build, very fine wood parts and painting of fabric covered parts. Well done with the new engine.
Ciao
Giuseppe

Thank you so much.

Offline fredjocko

  • Sr. Member
  • ****
  • Posts: 436
Re: HB W.29 Aircraft 2760 in British Markings
« Reply #32 on: February 16, 2021, 03:26:10 AM »
Great work so far - I'm extremely impressed with your painted-on wing roundels.
Cheers,
Gary

Thank you. The whole painted markings thing has really gotten me started. My wife gave me a Silouhette Portrait cutter for Christmas so I can make stencils more accurately. I'm thinking tracing is easier and cutting by hand...

Offline fredjocko

  • Sr. Member
  • ****
  • Posts: 436
Re: HB W.29 Aircraft 2760 in British Markings
« Reply #33 on: February 16, 2021, 03:26:35 AM »
Fantastic progress with the engine , lovely details !


Alexis

Thank you

Offline fredjocko

  • Sr. Member
  • ****
  • Posts: 436
Re: HB W.29 Aircraft 2760 in British Markings
« Reply #34 on: February 16, 2021, 03:45:20 AM »
I got side-tracked form the engine to work on the front radiator since it is different from the Bz.III. I have started scratch-building the radiator to hopefully use to make some 3D printed parts.

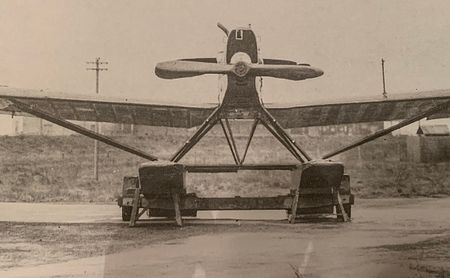

The Benz Bz.IIIa radiator:



The Bz.III radiator



My start on the radiator:



I just need to cut the existing radiator off the front cowling part and attach the new one. Unfortunately, I may need to drink copious amounts of bourbon to get the nerve to cut it...



Offline RAGIII

  • Hero Member
  • *****
  • Posts: 18793
Re: HB W.29 Aircraft 2760 in British Markings
« Reply #35 on: February 16, 2021, 04:43:55 AM »
Nice work on the new radiator. Have fun getting ready to make that cut  ;D
RAGIII
"A man has to know his limitations": Harry Callahan

"Don't slop it on" Lynda Geisler

Offline lone modeller

  • Hero Member
  • *****
  • Posts: 5300
Re: HB W.29 Aircraft 2760 in British Markings
« Reply #36 on: February 16, 2021, 04:50:02 AM »
Yes cutting up a good kit is not always easy, but grit your teeth and just cut - it will be better than you think!

Stephen.

Offline fredjocko

  • Sr. Member
  • ****
  • Posts: 436
Re: HB W.29 Aircraft 2760 in British Markings
« Reply #37 on: February 16, 2021, 05:38:13 AM »

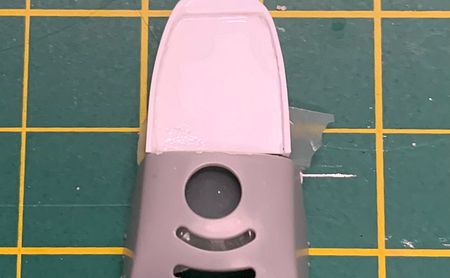

Well...I did it!! Looks better than I thought. Thanks Rick and Stephen for the vote of confidence.



I taped the two together and I think this will work. Now, I just need to find a radiator mesh and cut the hole for the coolant hose. May be this whole scratch-building thing isn't so bad...


Offline RAGIII

  • Hero Member
  • *****
  • Posts: 18793
Re: HB W.29 Aircraft 2760 in British Markings
« Reply #38 on: February 16, 2021, 06:15:30 AM »
Nice results ! Congrats on getting up the nerve  8)
RAGIII
"A man has to know his limitations": Harry Callahan

"Don't slop it on" Lynda Geisler

Offline fredjocko

  • Sr. Member
  • ****
  • Posts: 436
Re: HB W.29 Aircraft 2760 in British Markings
« Reply #39 on: February 16, 2021, 08:42:39 PM »

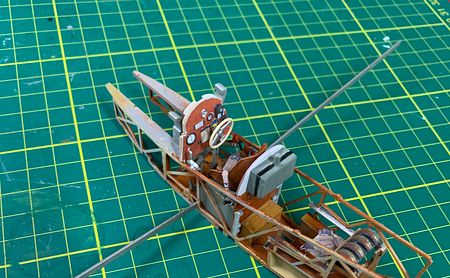

While I was pondering my next step with the new radiator I decided to assemble the cockpit. Its amazing that I started this in late 2020 and I noticed I apparently, I lost two parts so far... the rear bulkhead, A26, and the late production elevator, B5,... I hate it when I mess it myself... I fashioned a new bulkhead with some spare sheet plastic and I'll figure out the elevator later. Anyway, the cockpit framing is assembled and the fuselage together!! It is starting to look like an airplane!!!











Offline Alexis

  • Hero Member
  • *****
  • Posts: 7947
  • Love the self
Re: HB W.29 Aircraft 2760 in British Markings
« Reply #40 on: February 17, 2021, 12:15:44 AM »
Nice work in the pit ! Your not the only one who loses parts  ;)


Alexis
Hurra ! , Ich Leben Noch
Body and life is a vessel we use to travel the planet . Femininity is the gift , The miracle comes from what we do with it .

Offline RAGIII

  • Hero Member
  • *****
  • Posts: 18793
Re: HB W.29 Aircraft 2760 in British Markings
« Reply #41 on: February 17, 2021, 12:34:53 AM »
Your cockpit looks Awesome! I also lose parts. The condition of MY desk makes it inevitable  :-[ You made a nice recovery with the scratch built version of the bulkhead! The Model is really taking shape now!
RAGIII
"A man has to know his limitations": Harry Callahan

"Don't slop it on" Lynda Geisler

Offline fredjocko

  • Sr. Member
  • ****
  • Posts: 436
Re: HB W.29 Aircraft 2760 in British Markings
« Reply #42 on: February 17, 2021, 12:38:58 AM »
Nice work in the pit ! Your not the only one who loses parts  ;)


Alexis

Thank you. Nice to know to I'm in good company... :)

Offline fredjocko

  • Sr. Member
  • ****
  • Posts: 436
Re: HB W.29 Aircraft 2760 in British Markings
« Reply #43 on: February 17, 2021, 12:41:01 AM »
Your cockpit looks Awesome! I also lose parts. The condition of MY desk makes it inevitable  :-[ You made a nice recovery with the scratch built version of the bulkhead! The Model is really taking shape now!
RAGIII

Thank you. The bad thing is I put pieces in various containers so I don't lose them... I am always surprised how fast everything moves when the woodwork is done.

Offline fredjocko

  • Sr. Member
  • ****
  • Posts: 436
Re: HB W.29 Aircraft 2760 in British Markings
« Reply #44 on: February 17, 2021, 01:47:18 AM »
Another update. I placed the Bz.IIIa engine in the engine compartment and the locating pins on the bottom of the engine line up perfectly with the notches in the support. I temporarily attached the front cowling and everything fit pretty well. I do need to notch a bit off the cowling lip some for a closer fit.
