Author Topic: Wingnut Wings Halberstadt  (Read 1179 times)

Offline RAGIII

  • Hero Member
  • *****
  • Posts: 10714
Re: Wingnut Wings Halberstadt
« Reply #60 on: February 14, 2019, 01:43:14 PM »
Lovely work on the tail stripes and fuselage band. A scheme after my own heart  8) The Aviattic lozenge should look stunning over your prepared wings!
RAGIII
"A man has to know his limitations": Harry Callahan

"Don't slop it on" Lynda Geisler

Offline Gisbod

  • Hero Member
  • *****
  • Posts: 1518
Re: Wingnut Wings Halberstadt
« Reply #61 on: February 15, 2019, 12:36:16 AM »
Thanks Rick  :)

Daily update.

Lozenge complete. The Aviattic cookie cut lozenge really is a treat. Great to work with, tough yet very thin...





Stickers on, weathered & sealed in. Now, I did have major problems with the Wingnut decals; not a statement I thought Iíd ever use. But, they took an age to soak off, nearly all cracked with handling and I had some adhesion issues too. Even after they were finally stuck down I found some areas on the national markings lifting in small pockets, even though theyíd been sealed in.

Iíve emailed Richard at Wingnutís for info. Itís a shame, because although all looks fine in the photos (with a little PS touch up) it doesnít quite cut it to the naked eye, which means I would be loathe to put it on a competition table (which I enjoy doing at Telford every year ::) )

Iíd be interested if anyone else has this issue. Incidentally, I mentioned it to Richard at Aviattic, and he said thereís, believe it or not, a worldwide issue with rubberising agent...

Anyway, all looks ok in the pics...





Actually, you can just see a little of the lifting I mentioned towards the top of the Ď4í if you look closely...

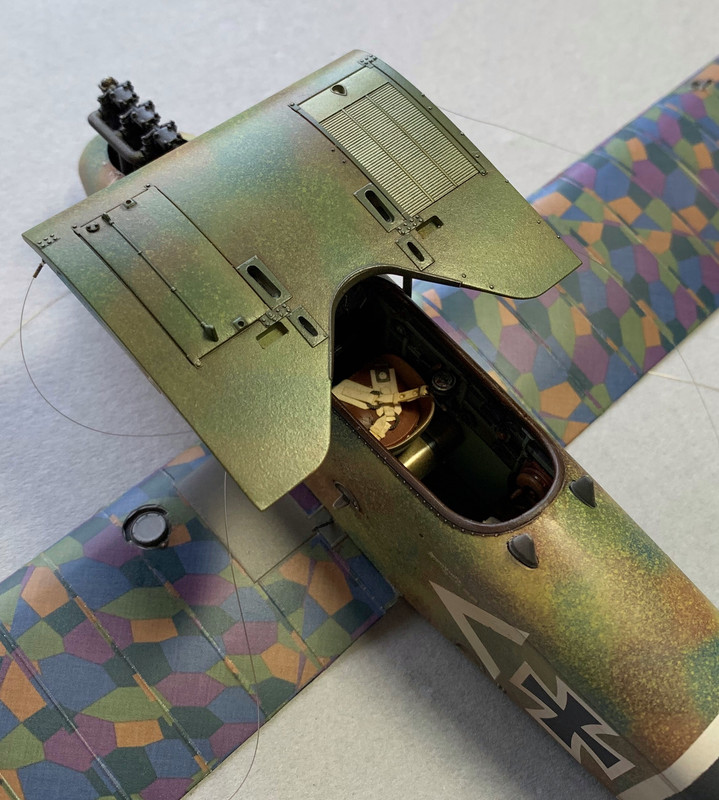

Quick view of the cockpit before I put the scarff ring on...





Thanks



Guy


« Last Edit: February 15, 2019, 04:04:45 AM by Gisbod »

Offline Ryan

  • Sr. Member
  • ****
  • Posts: 297
Re: Wingnut Wings Halberstadt
« Reply #62 on: February 15, 2019, 01:01:11 AM »
More Guy goodness, thanks for the update and I see the lifting in the shot.

Ryan
In Progress: 1/32 Albatross DV (Richthofen); 1/32 Morane Saulnier Type N
Upcoming:1/32 WNW DH.9

Online Juan

  • Hero Member
  • *****
  • Posts: 1816
  • All gave some, some gave all.
Re: Wingnut Wings Halberstadt
« Reply #63 on: February 15, 2019, 01:43:04 AM »
Wow Guy, great update, those Aviattic cookie cut lozenge look awesome along with the rest of your build.

Offline Ryan

  • Sr. Member
  • ****
  • Posts: 297
Re: Wingnut Wings Halberstadt
« Reply #64 on: February 15, 2019, 01:54:53 AM »
Guy I wanted to mention I have used Elmers Glue for ever as a decal base and have had great results. I'm not sure this would help the lifting but you might try it.

You basically place a thinned puddle of the glue in the decal spot and tamp down the decal until the glue squeezes out. Since the glue is water re-activated any excess can be cleaned off in time.

Another benefit of this process if that the thickish glue will fill in the hills and valleys of a flat paint job and reduce or eliminate silvering.

Ryan
In Progress: 1/32 Albatross DV (Richthofen); 1/32 Morane Saulnier Type N
Upcoming:1/32 WNW DH.9

Offline Ryan

  • Sr. Member
  • ****
  • Posts: 297
Re: Wingnut Wings Halberstadt
« Reply #65 on: February 15, 2019, 02:13:27 AM »
BTW the Elmer's makes a great bush painted ultra flat when thinned down too.

I would go to wide with your brush but it can eliminate super glue glare and so on.

Ryan
In Progress: 1/32 Albatross DV (Richthofen); 1/32 Morane Saulnier Type N
Upcoming:1/32 WNW DH.9

Online monthebiff

  • Newbie
  • *
  • Posts: 3
Re: Wingnut Wings Halberstadt
« Reply #66 on: February 15, 2019, 03:05:49 AM »
Looks fantastic Guy, I am building the late version and can confirm the kit supplied decals are poor as you have experienced. I did try the lozenge initially but the would just not conform so off they came and I went down the Aviattic route but cutting them out of a complete A4 sheet and adding seperate rib tapes before the cookie cut set became available!!

Regards. Andy

Offline Gisbod

  • Hero Member
  • *****
  • Posts: 1518
Re: Wingnut Wings Halberstadt
« Reply #67 on: February 15, 2019, 04:26:30 AM »
Thanks for the tip Ryan, Iíll try that, but the decals are definitely faulty...

Good to know itís not just me Andy! Maybe you could pass on to Richard at Wingnuts? If he gets a few emails they may well address this.


Guy

Offline RAGIII

  • Hero Member
  • *****
  • Posts: 10714
Re: Wingnut Wings Halberstadt
« Reply #68 on: February 15, 2019, 02:42:27 PM »
Really excellent results all around. Glad you have overcome the decal issues! Odd that only in the last year or two have WNW decals had any issues. The roundels on the Camel come to mind and now this kit! Hope they get things sorted out soon!
RAGIII
"A man has to know his limitations": Harry Callahan

"Don't slop it on" Lynda Geisler

Offline gbrivio

  • Hero Member
  • *****
  • Posts: 615
Re: Wingnut Wings Halberstadt
« Reply #69 on: February 15, 2019, 06:41:19 PM »
I'm speechless, not only building so quickly but all done in superb quality. The very guide for building and painting this kit.
And thank you for the advice on the decals.
Ciao
Giuseppe

Online Bughunter

  • Hero Member
  • *****
  • Posts: 656
Re: Wingnut Wings Halberstadt
« Reply #70 on: February 15, 2019, 07:21:31 PM »
Guy, again a great update with result, that makes me speechless!
Really pitty about the decal issue. May be you can put thinned white glue below?

But in one thing you are wrong:
Quick view of the cockpit before I put the scarff ring on...
Since Scarff was a British officer and gunner the weight balanced Scarff ring can be only found on British aircrafts and not on german ones ...
... but I know what you mean ;)

Cheers,
Frank
Wikipedia says: A model is a simplified representation of reality.
So I create downscaled originals.

Offline PrzemoL

  • Hero Member
  • *****
  • Posts: 2742
  • There was Eru... and he made first the Ainur...
    • Przemysław Litewka
Re: Wingnut Wings Halberstadt
« Reply #71 on: February 15, 2019, 08:01:58 PM »
Guy, let me return your words - THIS will be hard to beat! Great modelling!
Ash nazg durbatuluk, ash nazg gimbatul,
Ash nazg thrakatuluk, agh burzum-ishi krimpatul.

Offline Gisbod

  • Hero Member
  • *****
  • Posts: 1518
Re: Wingnut Wings Halberstadt
« Reply #72 on: February 16, 2019, 12:08:48 AM »
Not for you Prze! But thanks..

Frank, yes, youíre quite right of course  ;)

Thank you Giuseppe  ;D

Thanks Rick, letís hope itís not a trend..

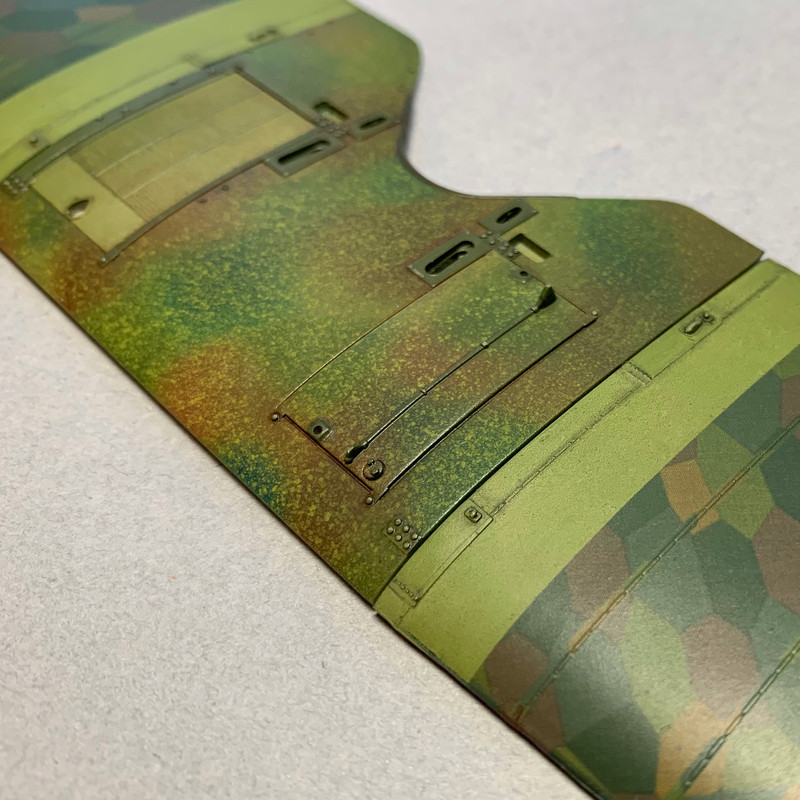

So almost finishing off really... top wing done, decalled and then a green glaze as per Wingnutís recommendations.





Top wing on and a start on the rigging. Iím using Gaspatchís resin anchor points and one end turnbuckles. Beautifully moulded and a little finer than their metal counterparts, but equally a little brittle, but I havenít had any issues so far... will let you know how I go. I find the whole top wing attachment thing infinitely easier when thereís a centre section. At this point Iím pleased I spent the time aligning and masking the struts as the centre section just popped into place - hardly any need for glue even.

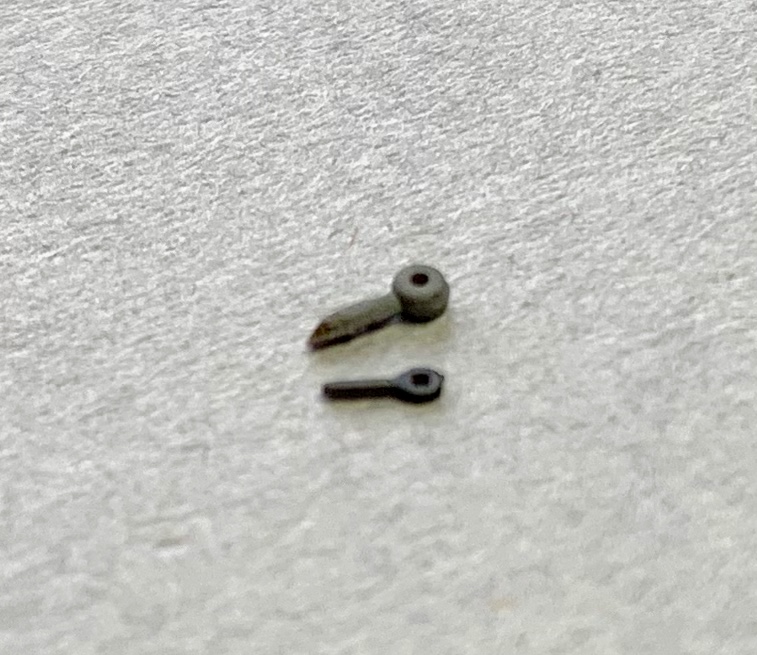

Little out of focus, but this is the resin anchor point next to the kit one...





Cheers

Guy


Offline Ryan

  • Sr. Member
  • ****
  • Posts: 297
Re: Wingnut Wings Halberstadt
« Reply #73 on: February 16, 2019, 12:11:00 AM »
Guy I love the sheen you have on the model, what clear coat have you used?

Ryan
In Progress: 1/32 Albatross DV (Richthofen); 1/32 Morane Saulnier Type N
Upcoming:1/32 WNW DH.9

Offline Daryl_Huhtala

  • Newbie
  • *
  • Posts: 34
Re: Wingnut Wings Halberstadt
« Reply #74 on: February 16, 2019, 02:02:08 AM »
Well color me stippled. That fuselage paint worked really well and you're building the scheme that I want to do.
SUMUS QUOD SUMUS
