Author Topic: Sopwith 5F.1 Dolphin, CSM 1:48, Upd 15.5.2020 Finished, done, over!  (Read 6307 times)

Offline Bughunter

  • Hero Member
  • *****
  • Posts: 1711
Sopwith 5F.1 Dolphin, CSM 1:48


After finishing the SE.5a here are my next project. The order is to finish started projects at first, but this kit was already started some time ago. Many parts was removed from sprue and cleaned up already. So now it's time to glue those parts together.

Until now I have build models from Eduard and Special Hobby, so I wanted to try out also my first kit from Copper State Models. So this is a Sopwith 5F.1 Dolphin in 1/48 in the Premium Edition of the kit.


Regarding sources of information I intend to use:
  • The great manual of the kit
  • The Windsock Datafile 54


  • Dolphin and Snipe Aces of World War I


  • Great book about the Dolphin, including color pictures of the restoration for Hendon

Source: web.ipmsusa3.org

  • The WNW Dolphin manual

Let's start ...

The inside of the fuselage was primed white, followed by alu and linen color MRP-257.



The framing and all the wooden parts a brushed with a acrylics wood color base.



I painted all the wooden parts with some texture, and covered it finally by a layer of clear Orange. Not so clean towards the tail, but this will not be visible later.



The kit includes PE parts for realizing the internal rigging - never seen this before in 1/48!



Internal rigging mostly done, have to respect the seat frame in the middle.



Two fuel caps lathed and milled, right one painted blueish grey already.



Upper tank prepared.



Added some alu foil as straps to the main tank, but don't like the look. So I masked it and sprayed a layer Alclad Steel.



Better.



Both tanks mounted.



Here a view to the upper cap. Fuselage is only dry fitting.



And to the side cap. There is a good picture in the Dolphin-book, which shows a chain, but this detail I left for the WNW builders.



Regarding coloring - I will do the C4131 with the checkerboard pattern on the back, as those decals are part of the Premium Edition.
So, this was the start of building a great kit. Thank you Edgar and colleagues!

I hope, that some of you will like what I trying to do and follow 8)

Cheers,
Frank
« Last Edit: May 16, 2020, 05:48:58 AM by Bughunter »
Wikipedia says: A model is a simplified representation of reality.
So I create downscaled originals.

Offline Borsos

  • Hero Member
  • *****
  • Posts: 2548
Re: Sopwith 5F.1 Dolphin, CSM 1:48
« Reply #1 on: November 27, 2018, 05:40:28 AM »
Awesome start, Frank. Like usually I‘ll follow curiously.
Best regards
Andreas
"Deux armées aux prises, c'est une grande armée qui se suicide."
Barbusse.
"Ein Berg in Deutschland kann doch einen Berg in Frankreich nicht beleidigen. Oder ein Fluß oder ein Wald oder ein Weizenfeld."
Remarque.

Online RAGIII

  • Hero Member
  • *****
  • Posts: 14888
Re: Sopwith 5F.1 Dolphin, CSM 1:48
« Reply #2 on: November 27, 2018, 09:51:33 AM »
Great start Frank! I know we will see a stunning build as you progress!
RAGIII
"A man has to know his limitations": Harry Callahan

"Don't slop it on" Lynda Geisler

Offline Juan

  • Hero Member
  • *****
  • Posts: 2385
  • All gave some, some gave all.
Re: Sopwith 5F.1 Dolphin, CSM 1:48
« Reply #3 on: November 27, 2018, 10:58:22 AM »
Beautiful start Frank, I am sure will be another of your beauties.  Following with popcorn in hand.

Offline Manni

  • Hero Member
  • *****
  • Posts: 1557
    • Der Militärmodellbauer
Re: Sopwith 5F.1 Dolphin, CSM 1:48
« Reply #4 on: November 27, 2018, 04:04:17 PM »
Awww, a typical "Frankenbuild" this will be awsome again and a worthful reference.
Bye,
Manni
"Ich hab' da mal was vorbereitet.": Jean Pütz
"Warum noch mehr Bausätze?!?": meine Frau

Offline Gisbod

  • Hero Member
  • *****
  • Posts: 1989
Re: Sopwith 5F.1 Dolphin, CSM 1:48
« Reply #5 on: November 27, 2018, 05:05:44 PM »
Lovely Frank,

Will be following for another master class!

Guy

Online Dave W

  • Administrator
  • Hero Member
  • ******
  • Posts: 1049
Re: Sopwith 5F.1 Dolphin, CSM 1:48
« Reply #6 on: November 27, 2018, 06:37:53 PM »
An excellent start on a great kit Frank. The CSM Dolphin is a real gem in 48th scale.

Looking forward to your build here.

cheers

Dave Wilson
Gold Coast
Australia
Owner and Administrator of ww1aircraftmodels.com and forum.ww1aircraftmodels.com

Offline andonio64

  • Hero Member
  • *****
  • Posts: 1494
  • There's no hurry
Re: Sopwith 5F.1 Dolphin, CSM 1:48
« Reply #7 on: November 27, 2018, 09:54:49 PM »
I join the line of enthusiastic commenting modellers, the start is awesome and can't wait to seeing the continuation!

Offline Bughunter

  • Hero Member
  • *****
  • Posts: 1711
Sopwith 5F.1 Dolphin, CSM 1:48, Update 27.11.2018 Seat and belts
« Reply #8 on: November 28, 2018, 03:38:51 AM »
Hello my friends, great to see you here following :D
A warm welcome!


Seat and belts


The "wicker chair" is part of the PE of the kit, which I soldered.



There are also PE seat belts, but need to be painted ???
But then I found a HGW set for the Dolphin:
https://hgwmodels.cz/en/seatbelts/564-sopwith-5f1-dolphin-seatbelts-148-148550.html
I don't had it at home, but another one for the Camel which looks identical. It is even cheaper :)
The parts looks really nice, the carrier paper is still on the backside.



The are different mounting options and spare parts. I like the leather look of the part with the 3 rows of holes.



The seat was painted. I added CA gel to upper edge and painted leather color.



Belts are mounted.



The frame is glued into one half and can now continue with the internal rigging.



Cheers,
Frank
Wikipedia says: A model is a simplified representation of reality.
So I create downscaled originals.

Online RAGIII

  • Hero Member
  • *****
  • Posts: 14888
Re: Sopwith 5F.1 Dolphin, CSM 1:48
« Reply #9 on: November 28, 2018, 01:23:59 PM »
Awesome painting of the seat and the belts look FANTATSIC!
RAGIII
"A man has to know his limitations": Harry Callahan

"Don't slop it on" Lynda Geisler

Offline G. Chapuis

  • Jr. Member
  • **
  • Posts: 52
Re: Sopwith 5F.1 Dolphin, CSM 1:48
« Reply #10 on: November 28, 2018, 05:41:41 PM »
Hello

Very nice beginning of construction.

Good continuation

Gérard

Offline andonio64

  • Hero Member
  • *****
  • Posts: 1494
  • There's no hurry
Re: Sopwith 5F.1 Dolphin, CSM 1:48
« Reply #11 on: November 28, 2018, 06:41:02 PM »
Beautiful details Frank!

Antonio

Offline gbrivio

  • Hero Member
  • *****
  • Posts: 1211
Re: Sopwith 5F.1 Dolphin, CSM 1:48
« Reply #12 on: November 28, 2018, 08:26:06 PM »
This promises to be another of your outstanding builds and I'm following with immense pleasure.
Thank you for sharing.
Giuseppe

Offline Bughunter

  • Hero Member
  • *****
  • Posts: 1711
Sopwith 5F.1 Dolphin, CSM 1:48, Update 28.11.2018 Engine
« Reply #13 on: November 29, 2018, 05:14:48 AM »
Thank you Rick, Gérard, Antonio and Giuseppe!
I have now a update, but the further progress will slow down a bit due to lack of time.


Engine


Now I have done the engine.

This are the resin parts of the Premium Edition.



I cleaned the parts, primed with Alclad black and painted according to the manual. Mostly with Alclads, the gloss heads are MRP. The plastic parts are the remaining geared engine of my Eduard SE.5a for comparison.



The small details are painted with brush.



The crankcase is semi matt alu. It needs some graphite and a washing.



It fits and looks ok.



Mostly not visible later.



The front view shows more, but there will be the hub of the airscrew.



There are two parts for the normal kit - the cylinders will be glued into the cowling. But it is also possible to be the engine separately since the manual show both options.



A real highlight are the metal exhausts of the Premium. Fits, but I have not glued them in place to avoid mounting problems later.



The engine is done, now some thoughts about the weapons.

Three types of Vickers MG: PE of Part, a Gaspatch and below the kit part.



I do not like the closed front, the Gaspatch looks more real.



Here in the modified cowling. Also other parts needs to be modified to get the bigger (but in scale) Gaspatch in.



Also in a drawing comparison I like the Gaspatch more.

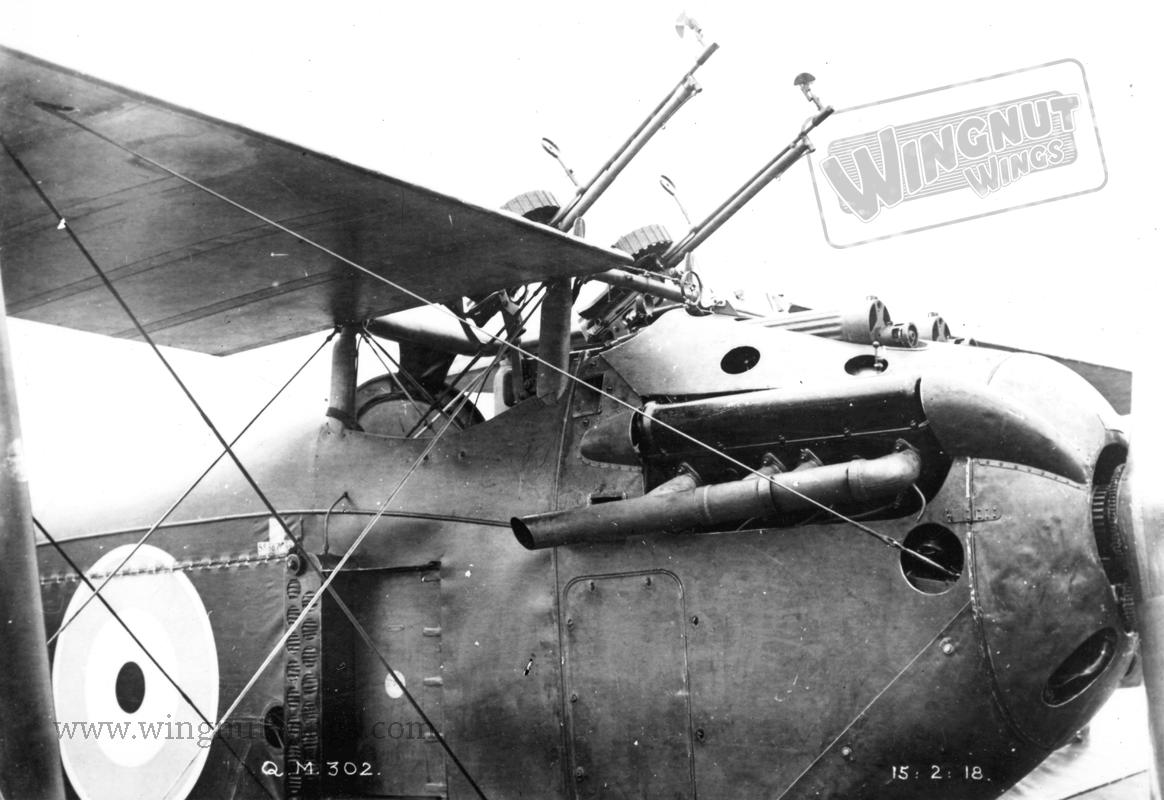

The PE of Parts are not needed. It makes sense, if the cooling jackets has real openings, but on the Dolphin the front is closed and the openings are below the cowling. So there is no need to solder the PE for this model. I have more detail pictures, but no copyright. But the closed jacket can also be seen in this WNW picture.

Quelle: wingnutwings.com


If you have objections or ideas, please speak up!

Cheers,
Frank
Wikipedia says: A model is a simplified representation of reality.
So I create downscaled originals.

Online lcarroll

  • Administrator
  • Hero Member
  • ******
  • Posts: 7848
Re: Sopwith 5F.1 Dolphin, CSM 1:48, Update 28.11.2018 Engine
« Reply #14 on: November 29, 2018, 05:55:27 AM »
Frank,
    Good start and a Build I'll follow closely. I have the Wingnut Wings Kit I'd like to start in the New Year, and I know I can learn a great deal following your work here! :)
Cheers,
Lance
