Hallo everybody!
I am posting a few new result, I did more but not on visible details, I started refining some piece of the tail sub assembly, the propellers to make them fit into the Taurus Le Rhone 9J, and some more study... the visible plastic is shown below!

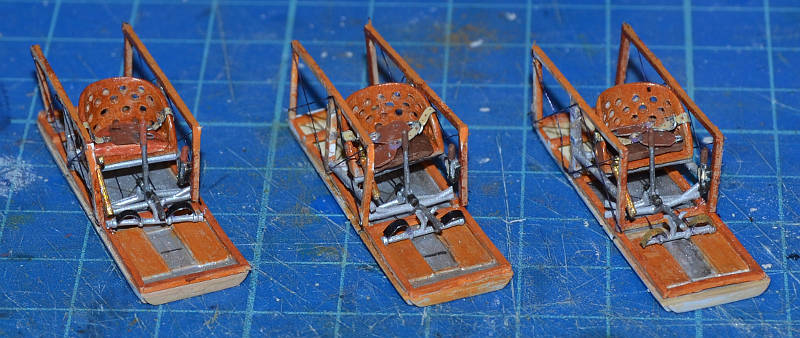

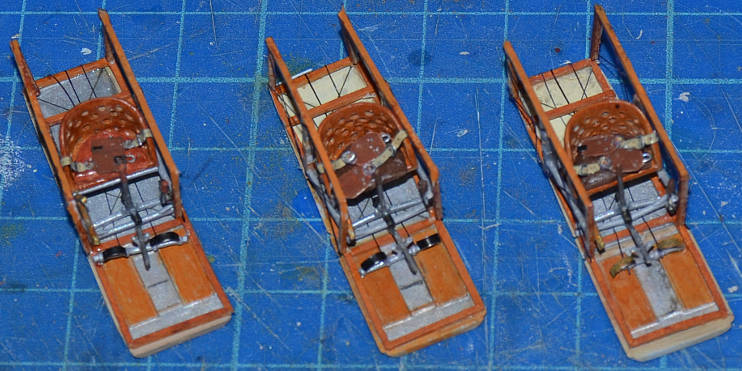

Here are the three finished cockpits
The pictures and the drawings I have show how the controls for the rudder are double cables and come out of the fuselage from a small hole in the fuselage sides near the tail.
The control horns on the rudder have three oles, 2 on the forward side to hook the rudder controls and one behind them to hook a structural cable strengthenng the rudder on both faces.
The elevators control was hooked to a control horn at 90° with respect to the horizonal plan. It was fixed to a tube holding together the 2 elevators.

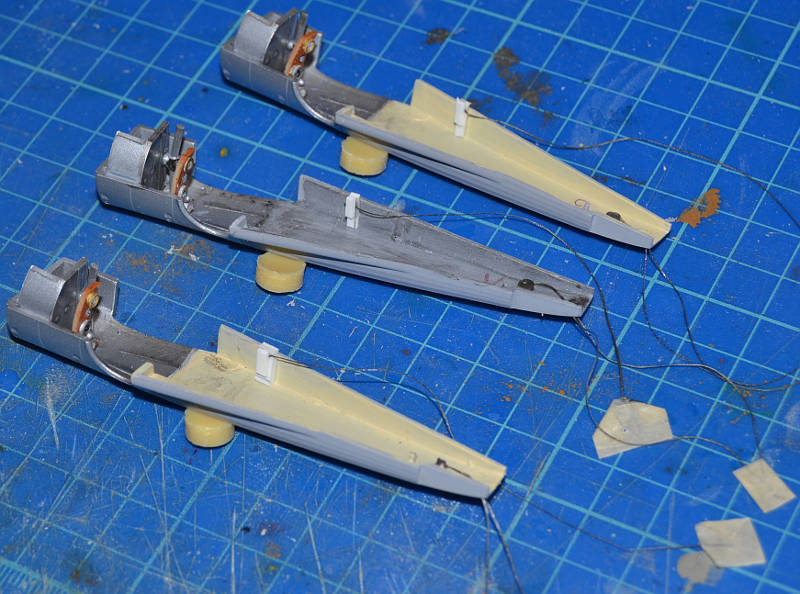

That said (pant! pant!) I glued the elevators control cable to a solid plasticard block, that will prevent the cockpit sub assembly to slip backwards.

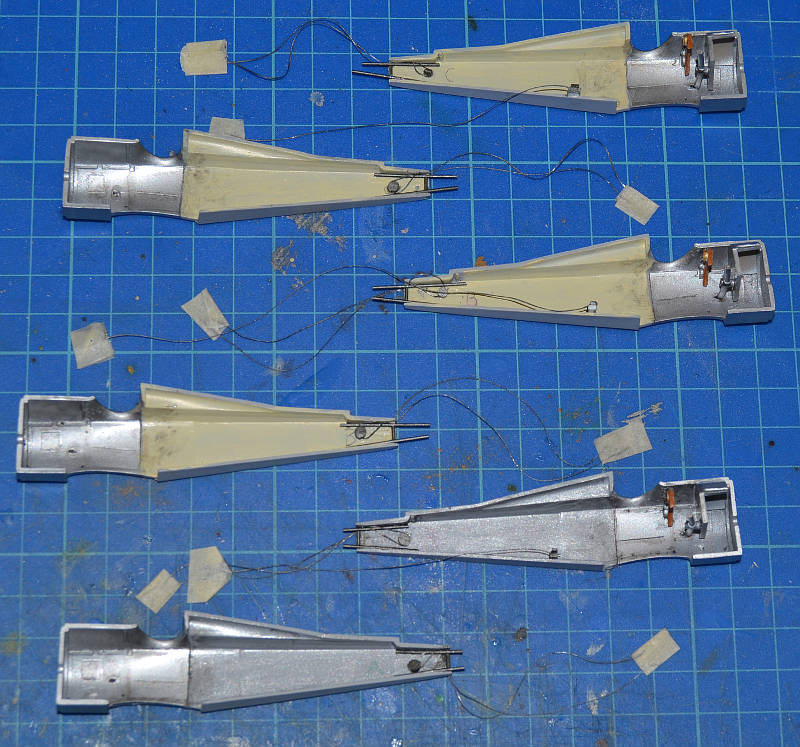

Here are the three fuselages with the control cables in place.
I used a .8mm diam. plasticard rod to re-create the tail structure inside the fuselage. Once closed the fuselage it will be trimmed to fit the tail sub assembly measurements.

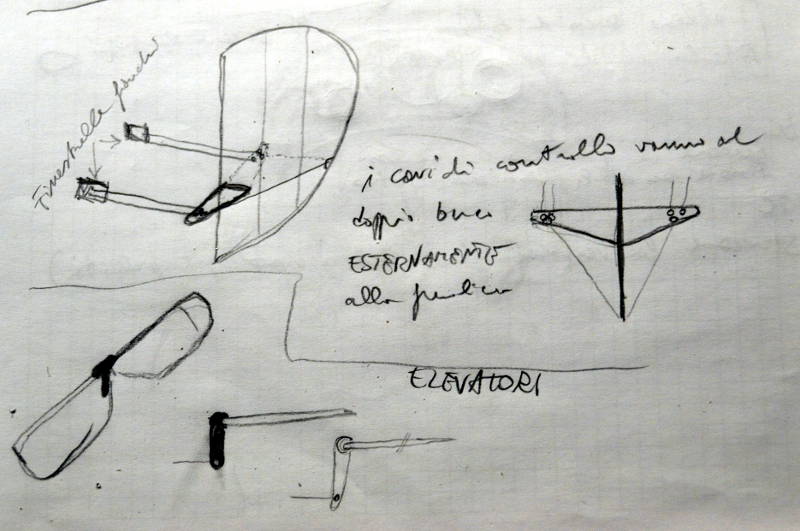

This is the drawing I posted earlier.
Happy Sunday everybody.
Ciao and thanks for looking!!!!!
AnDonio
