I am drawing the 3d of the S.I.A.Farman MF1914 with Fiat A.10 engine, to obtain the two-dimensional drawings of the paper model.
I want to make the 1/33 scale model.










soon,
matt77

Online Gene K

  • Sr. Member
  • ****
  • Posts: 333
Re: Farman MF1914 1/33
« Reply #1 on: April 14, 2020, 02:13:57 AM »
My hat has always been off to you -- another marvelous creation.

Gene K

Offline lone modeller

  • Hero Member
  • *****
  • Posts: 5300
Re: Farman MF1914 1/33
« Reply #2 on: April 14, 2020, 02:38:49 AM »
This will be a very interesting, not to write challenging model. Looking forward to seeing this one take shape.

Stephen.

Offline RAGIII

  • Hero Member
  • *****
  • Posts: 18793
Re: Farman MF1914 1/33
« Reply #3 on: April 14, 2020, 07:56:38 AM »
I am looking forward to your Mastery!
RAGIII
"A man has to know his limitations": Harry Callahan

"Don't slop it on" Lynda Geisler

Offline Alexis

  • Hero Member
  • *****
  • Posts: 7947
  • Love the self
Re: Farman MF1914 1/33
« Reply #4 on: April 14, 2020, 10:20:02 AM »
Interesting ....



Terri
Hurra ! , Ich Leben Noch
Body and life is a vessel we use to travel the planet . Femininity is the gift , The miracle comes from what we do with it .

Offline AndRoby67

  • Sr. Member
  • ****
  • Posts: 278
Re: Farman MF1914 1/33
« Reply #5 on: April 14, 2020, 11:46:26 PM »
Wow! Another italian subject!
Your 3D drawings are really accurate.
I saw you choose the one with "solid" fins, instead of the one in picture.
If it's useful, here my build of ten years ago with some original photos:
https://www.modellismopiu.it/modules/newbb_plus/viewtopic.php?mode=viewtopic&topic_id=104514&forum=90&start=10&viewmode=flat&order=0
Cheers,
Roberto

Offline matt77

  • Jr. Member
  • **
  • Posts: 80
    • Modellismo in carta
Re: Farman MF1914 1/33
« Reply #6 on: April 15, 2020, 01:37:19 AM »
Wow! Another italian subject!
Your 3D drawings are really accurate.
I saw you choose the one with "solid" fins, instead of the one in picture.
If it's useful, here my build of ten years ago with some original photos:
https://www.modellismopiu.it/modules/newbb_plus/viewtopic.php?mode=viewtopic&topic_id=104514&forum=90&start=10&viewmode=flat&order=0
Cheers,
Roberto

I know your model, I followed it on "Modellismo Più". I'd like to ask you some information.
Does the tail frame have rectangular section oblique beams? Did you insert one or two tanks between the second seat and the engine? Did you know that in the war period the MF1914 had only the factory coloring?

Thanks for your help

Offline AndRoby67

  • Sr. Member
  • ****
  • Posts: 278
Re: Farman MF1914 1/33
« Reply #7 on: April 15, 2020, 04:20:57 AM »
Hi Matt!
There are two Galleries in "Modellismo Più" maybe useful for answer your questions:

https://www.modellismopiu.net/m+gallerie/main.php?g2_itemId=192184&g2_page=2

http://www.modellismopiu.net/m+gallerie/main.php?g2_itemId=212045

Looking at your drawings, it seems that nose is too "rounded" as british Farmans, The Fiat version was more straight in shape.
Roberto

Offline AndRoby67

  • Sr. Member
  • ****
  • Posts: 278
Re: Farman MF1914 1/33
« Reply #8 on: April 16, 2020, 04:38:25 AM »
Hi Matt!
Two, I hope, useful photo.





In both you may see the single petrol tank behind seats and oil tank before engine.
Another thing: the Fiat A.10 was "inspired" by the Mercedes 160hp that we received with 6 Albatros W.1 that our Navy purchased before the war.
Cheers,
Roberto


Offline matt77

  • Jr. Member
  • **
  • Posts: 80
    • Modellismo in carta
Re: Farman MF1914 1/33
« Reply #9 on: April 16, 2020, 05:58:33 AM »
Hi Matt!
Two, I hope, useful photo.





In both you may see the single petrol tank behind seats and oil tank before engine.
Another thing: the Fiat A.10 was "inspired" by the Mercedes 160hp that we received with 6 Albatros W.1 that our Navy purchased before the war.
Cheers,
Roberto

Thanks Roby

As I expected.
The petrol tank has a rounded rectangular section, while the oil tank has a circular section.
It remains a mystery how the latter is hooked, while the former will be housed on a pedestal.

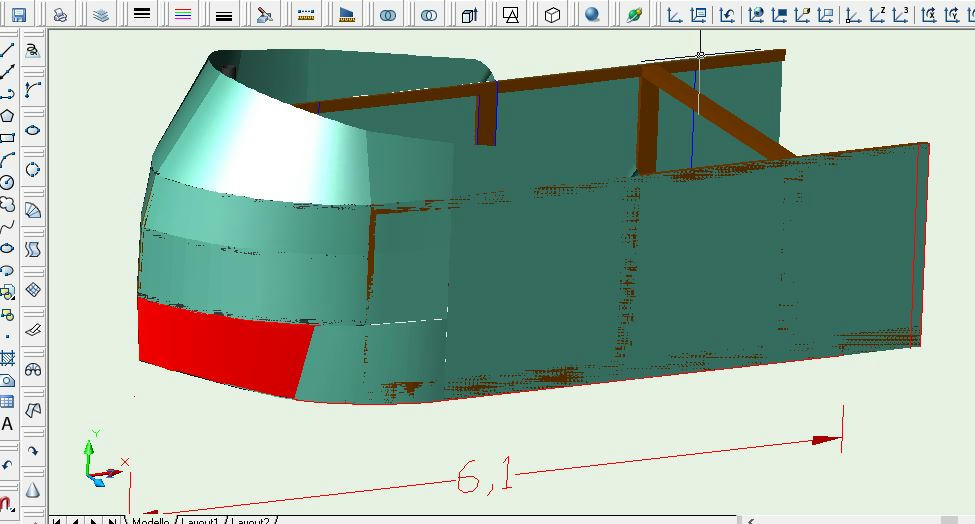

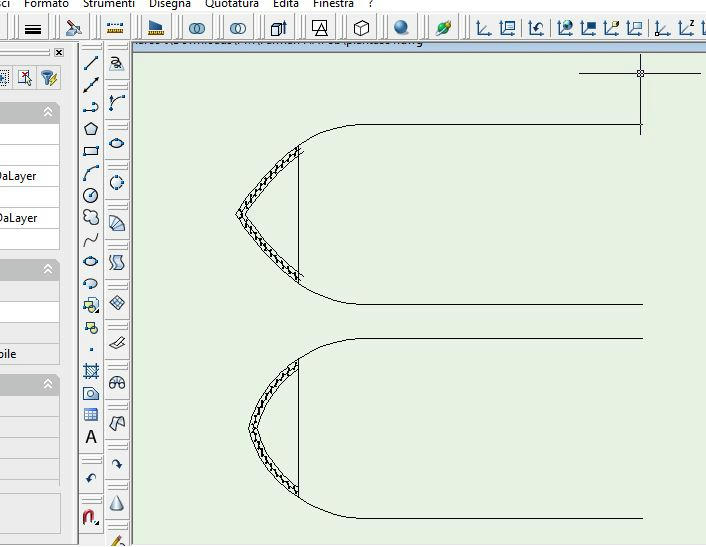

Regarding the "nose" issue, I proceeded to redesign it according to your indications.


I therefore modified the base by lengthening the tip


Offline NinetythirdLiberator

  • Hero Member
  • *****
  • Posts: 1587
Re: Farman MF1914 1/33
« Reply #10 on: April 16, 2020, 01:20:47 PM »
I'm in line for this one too.  So cool I could cry.

Can't wait to see it!

Dan

Offline Borsos

  • Hero Member
  • *****
  • Posts: 3315
Re: Farman MF1914 1/33
« Reply #11 on: April 16, 2020, 06:51:43 PM »
Amazing project! Are there any pics of comparable quality for French build MF. 11’s interiors out there too?
Andreas
"Deux armées aux prises, c'est une grande armée qui se suicide."
Barbusse.
"Ein Berg in Deutschland kann doch einen Berg in Frankreich nicht beleidigen. Oder ein Fluß oder ein Wald oder ein Weizenfeld."
Remarque.

Offline AndRoby67

  • Sr. Member
  • ****
  • Posts: 278
Re: Farman MF1914 1/33
« Reply #12 on: April 17, 2020, 05:11:34 AM »
Hi Matt,
one idea about oil tank fixing is that the tank was placed between radiators.
They are not "suspended" or sustained by piping, you may see a bracing little strut in first photo.
Maybe oil tank is attached to the bar that is behind radiators, a sort of a more rigid structure
radiator/oil tank/radiator.
This time is really "my two cents".
Great work on nose profile.
Roberto

Offline matt77

  • Jr. Member
  • **
  • Posts: 80
    • Modellismo in carta
Re: Farman MF1914 1/33
« Reply #13 on: April 27, 2020, 07:19:03 PM »
Well, the engine parts are ready to be cut out:





Today it starts.

Offline NinetythirdLiberator

  • Hero Member
  • *****
  • Posts: 1587
Re: Farman MF1914 1/33
« Reply #14 on: April 28, 2020, 01:40:40 AM »
Hot Dog!  Can't wait.  Yet another one I want. ;D

Cheers,
Dan
