Elevator and rudder are movable on the model.
The movements are transferred to the movable control stick and the movable rudder bar via control cables (thin fishing line) - or vice versa would be correct.
Of course, it was very important to me when building the model, despite the movable odds and ends, to stay as close as possible to the original.

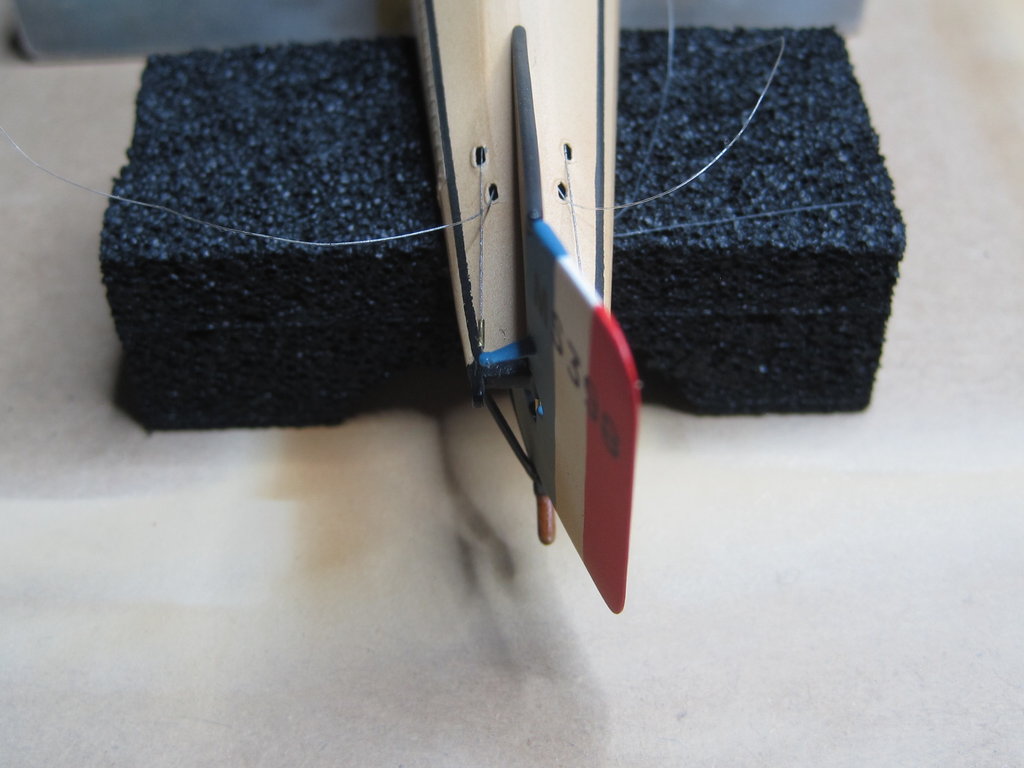

As with the original, here at the upper bearing point of the rudder the screw connection.
A small resin screw was prepared for this.
The shaft of the screw was removed, the screw itself was drilled in the middle (OK, almost in the middle) and provided with a long copper wire.
This wire was then inserted into the rudder hinge (brass tube) from the top.
It was not glued, the screw head and the copper wire hold through the black paint on the model.
