Author Topic: 1/48 Caudron G-4, Paris-Melbourne 1919, Meliusmanu  (Read 29052 times)

Offline huberlu

  • Full Member
  • ***
  • Posts: 214
Re: 1/48 Caudron G-4, Paris-Melbourne 1919, conversion kit Meliusmanu
« Reply #90 on: November 13, 2023, 08:07:54 AM »
Still working on it.

I'm making decals...and it's taking a lot longer than expected.
In vector drawing to be able to modify the size without losing quality. The photo is a scan of the hood and the "Benoist" layered on top (made with free GIMP and Inkscape).

The engine covers must be modified. Their opening is much larger than that of the Kit. I looked for other G4s with similar covers and haven't found any yet.

The one on the left has been modified.






Two superimposed digital images (decals and engine):





« Last Edit: November 13, 2023, 08:11:55 AM by huberlu »

Offline huberlu

  • Full Member
  • ***
  • Posts: 214
Re: 1/48 Caudron G-4, Paris-Melbourne 1919, conversion kit Meliusmanu
« Reply #91 on: November 13, 2023, 08:29:22 AM »
The decals representing the texts are almost all finished.
Flags too.

The Australian flag exists in blue or red. The same goes for the British flag. I'm not sure what color I chose, red.








 The actual size of the print is around 8mm high... I thought we would see the flags better.




The advantage of vector is to be able to modify the size of the image at will without pixelation of the image:






If anyone knows a good brand of printable decal (inkjet) I'm interested.


Regards.


Offline Dutch522

  • Hero Member
  • *****
  • Posts: 975
Re: 1/48 Caudron G-4, Paris-Melbourne 1919, conversion kit Meliusmanu
« Reply #92 on: November 14, 2023, 12:22:20 AM »
Greatly enjoying this build log, Louis, one of my great interests is the long distance "raids" both before and after the Great War. Truly beautiful work, and your attention to detail is inspiring! I have to keep reminding myself that all this is in 1:48 and not 1:32.

All best,

Dutch

Offline Tim Mixon

  • Hero Member
  • *****
  • Posts: 945
  • Main focus is 1/72 WWI
Re: 1/48 Caudron G-4, Paris-Melbourne 1919, conversion kit Meliusmanu
« Reply #93 on: November 14, 2023, 09:32:37 AM »
Museum quality efforts here!  Bravo!

Offline huberlu

  • Full Member
  • ***
  • Posts: 214
Re: 1/48 Caudron G-4, Paris-Melbourne 1919, conversion kit Meliusmanu
« Reply #94 on: December 16, 2023, 08:48:18 PM »
That's it...

A drift complete.
The fonts used are more or less close to reality. You don't see much in the photos, even when reworked a little.
The numbers come from the doc found on the bnf website.

If you see any inconsistencies, I am here to listen to you.

[ /url]

[url=https://servimg.com/view/18281613/219][ /url]

[url=https://servimg.com/view/18281613/223][ /url]

A+

Offline Rookie

  • Hero Member
  • *****
  • Posts: 1024
  • No guts, no glory...
Re: 1/48 Caudron G-4, Paris-Melbourne 1919, conversion kit Meliusmanu
« Reply #95 on: December 18, 2023, 07:03:14 AM »
I applaud the incredible ammount of research and effort you invest in this build Louis.

Truly a beautifilodel in the making.

Willem

Offline huberlu

  • Full Member
  • ***
  • Posts: 214
Re: 1/48 Caudron G-4, Paris-Melbourne 1919, conversion kit Meliusmanu
« Reply #96 on: December 18, 2023, 07:34:38 AM »
In order to prepare for his departure Étienne Poulet does not remain inactive:

September 1919:

https://gallica.bnf.fr/ark:/12148/ bd6t52910t/f3.item.r=%22etienne%20poulet%22.zoom

“The Issy-les-Moulineaux airfield yesterday morning. A Caudron evolves in the gray sky. On the ground, three cinematographic operators are filming... The plane lands lightly, rolls a few more meters and comes to stand in front of the operators. From the cabin jumps out, disheveled, a very blond young woman, who, quickly removing her suit, takes a hat and a coat from the trunk of the aircraft, puts them on hastily and walks away towards a hectic car which waits.
It’s Gaby Deslys, who, before leaving for America in a few days, is “filming” the last episodes of a great cinematographic drama that began this summer in Deauville, and which is said to be marvelous. Its pilot, a tall, young, blond boy, has a frank and friendly face, calm and determined, supervises the re-entry of his aircraft under the hangar while speaking with his mechanic (…)”
The New York herald 25 /09/1919





Poulet, Gaby Deslys and Henry Pouctal  (director) probably during the filming of the film “The God of Chance” (1919).
  Editor's note: There are only a few sequences of the film visible on the internet. The rest of the film is gone




Deauville July 1919



Le Petit Parisien, Sunday September 28, 1919

“Poulet, moreover, has no illusions about the difficulties of his business. I know, he told us yesterday, that from Baghdad to Bangkok, I have to cross immense desert regions. I also know that certain corners of the Philippines are completely unsanitary, and, on my map, I noted, on the islands Moluccas, a distance of 800km by these words “do not land”. Some navigators have in fact told me that in this region I simply risked being put on the spit...and as this prospect hardly appeals to me...(...)”


Authorizations to fly over British territory are slow to be provided to them. The departure scheduled for October 1 is delayed until October 5. After a test flight the day before departure, the aviators decided to change propellers in favor of those manufactured by Chauvière which showed better performance. The departure is therefore postponed until October 12 at dawn.

On October 12 at seven o'clock in the morning the aircraft had already left its hangar on the Issy les Moulineaux field covered in frost and drowned in mist. The mechanics are busy around the plane. Étienne Poulet and Jean Benoist arrive accompanied by Jean Lhermit, the organizer of the raid. The crowd is present to witness the departure. The press, photographers and cameras are there.

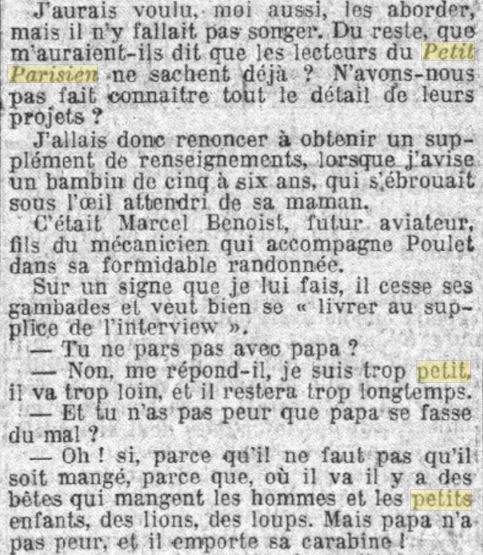

Jean Benoist's wife and his son Marcel also attended the departure.    Postcard/advertisement for the tire manufacturer Hutchinson.  Another advertisement using the Benoist and Poulet raid.



  (...) - Hey, old man, if the sewer workers in Adelaide are                                   .                                                                                                                            on strike we can replace them. (...)



Source: Caudron museum
« Last Edit: December 18, 2023, 07:44:03 AM by huberlu »

Offline huberlu

  • Full Member
  • ***
  • Posts: 214
Re: 1/48 Caudron G-4, Paris-Melbourne 1919, conversion kit Meliusmanu
« Reply #97 on: December 18, 2023, 07:47:21 AM »
A final check and the engines are started. “The fly” (that’s the name of the plane) takes off, it’s 8:16 a.m.

This is unfortunately only a false start. Half an hour later the Caudron returns to land. The very dense fog makes it impossible to see the ground and navigate.
10:30 a.m. the plane leaves, then returns to land at the airfield again.
At 1:30 p.m. the two men set off a third time but this time a faulty magneto forced them to give up.

October 14 at 7:10 a.m. in good weather this time Poulet and Benoist definitely set off.


“Newyork Tribune” P2, 11/16/19


Jacques Mortane the next day in the Petit Journal:

“Obviously, we don’t go to Australia like we go to Asnières. Although it is sometimes difficult to know, when we leave, what time we will arrive in Asnières! Poulet and his mechanic Benoît tried in vain yesterday to start their flight to Melbourne. They actually succeeded in the first 50 kilometers of the 20,000 km raid, but the mist prevented them from continuing their hike. At 8 o'clock. 05, initial test. Back to 9
hours. Waiting for a clearing. Second attempt at 10 a.m. 30. The always blurred weather poses an insurmountable barrier. Finally, third departure at 12:30. Nothing changed.
“Bad times,” we say to the champion.
- Yes, here, but it's the best season there. Until the end of November, the temperature is ideal in the Antipodes. » Alas! to get there, you have to go through here and “here” does not at all seem to encourage the Frenchman's enterprise who finally wants to breathe new life into our failing aviation. Let's wish Poulet best of luck for his test today. The days are short now, the Caudron G.-4 device suffers from the drawback of its quality: it is safe, but relatively fast. So let's not expect a slaughter of speed records. Poulet wants to go far, very far and must, therefore, take care of his horse. »

Offline Mike Norris (UK)

  • Hero Member
  • *****
  • Posts: 2480
  • RAF Old and Bold
    • Mikes WW1 Aircraft Models
Re: 1/48 Caudron G-4, Paris-Melbourne 1919, conversion kit Meliusmanu
« Reply #98 on: December 29, 2023, 08:55:45 PM »
This continues to be an inspiring build.
Bravo,

Mike


Retired - 27 years RAF service then 20 years Military Aerospace Technical Author/editor.

Offline RAGIII

  • Hero Member
  • *****
  • Posts: 19692
Re: 1/48 Caudron G-4, Paris-Melbourne 1919, conversion kit Meliusmanu
« Reply #99 on: December 30, 2023, 09:53:43 AM »
Your details and homemade markings continue to be amazing!
RAGIII
"A man has to know his limitations": Harry Callahan

"Don't slop it on" Lynda Geisler

Offline KiwiZac

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 2869
    • My Linktree
Re: 1/48 Caudron G-4, Paris-Melbourne 1919, conversion kit Meliusmanu
« Reply #100 on: December 31, 2023, 06:47:20 AM »
Magnificent work, and your attention to detail is to be commended. This will be a stunning replica when complete, and I really enjoy reading the true story as we go.
Zac in NZ

Offline huberlu

  • Full Member
  • ***
  • Posts: 214
Re: 1/48 Caudron G-4, Paris-Melbourne 1919, conversion kit Meliusmanu
« Reply #101 on: March 18, 2024, 07:24:38 AM »
I finished the decal sheet. I did a test to see if their sizes were correct before having them printed by one of our colleagues who very kindly offered to print them for me on a good printer.

I used EXPERTS-CHOICE transparent paper. I made two prints, the first with a printer  set to plain paper and standard printing (Epson inkjet). The second set on glossy paper in high definition. Prints are clean with no smudging. The first impression was correct, nothing more, and the second satisfactory.
12 hours of drying later, the paper had absorbed the ink, creating 1mm halos around each drawing, making the decals unusable.

[ /url]


I tried again to dry the ink more quickly with a hairdryer...I didn't even have time this time to take the hairdryer in hand. Halos!!!

I can't print with less ink...I don't think I missed anything in the use of decals since I had to stop at the 1st step...

The Passion 132 after-sales service which sold me the EXPERTS-CHOICE transparent paper contacted the manufacturer for explanations but remains silent despite their reminders.

I tried a new one by sanding the paper before printing with 1000 and 2000 sandpaper until it became matte almost everywhere (the paper is not completely smooth). It took me a good half hour (ordinary paper printing and the best possible quality).
The result is good now even after overnight drying.


[url=https://servimg.com/view/18281613/235]


It's still distressing to have to print 2 A4 sheets to succeed in obtaining 1 correct result. 11euros for 3 sheets with shipping costs.


A few test photos to check that everything fits...before having them printed.
This is not always the case so I gropely resize the drawings. The print quality is a little tight, I think, especially for flags and texts. I hope better on a laser.





A red and a black version, to see what it looks like...











The "Fly", on the nose of the plane.







That's it! I have everything to finish the assembly.

Bruno very kindly printed a decal sheet for me with a laser printer. Thank you so much.





Now I have to get started for real...

I removed all the fittings on the masts and tail beams. I will replace them with paint most likely.
I removed, by pure vice, the "bundles" which serve as shock absorbers and I therefore dug the two small elongated holes to place new "rubber bands" (lead here to test). Allow 3 or 4 hours of work for the train anyway...



They must also be removed from the wheel axle.








Regards
« Last Edit: March 18, 2024, 07:36:49 AM by huberlu »

Offline NigelR

  • Hero Member
  • *****
  • Posts: 1864
Re: 1/48 Caudron G-4, Paris-Melbourne 1919, conversion kit Meliusmanu
« Reply #102 on: March 19, 2024, 02:41:54 AM »
Wow. That is a LOT of work, with a lot of frustration. But the results are going to be worth it I am sure.....

Offline KiwiZac

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 2869
    • My Linktree
Re: 1/48 Caudron G-4, Paris-Melbourne 1919, conversion kit Meliusmanu
« Reply #103 on: March 23, 2024, 12:07:27 PM »
I'm so sorry to see your troubles but the end results will be worth all the drama and expense. I'm excited to see the next steps!
Zac in NZ

Offline PJ Fisher

  • Hero Member
  • *****
  • Posts: 1426
    • Aero Rarities
Re: 1/48 Caudron G-4, Paris-Melbourne 1919, conversion kit Meliusmanu
« Reply #104 on: March 25, 2024, 10:40:46 AM »
I've decided this is my favorite build post of all time.
