Author Topic: FE2b (Late) A5650 "Jess" 100 Sqn. 1:32 WNW  (Read 63671 times)

Offline lcarroll

  • Administrator
  • Hero Member
  • ******
  • Posts: 8659
Re: FE2b (Late) A5650 "Jess" 100 Sqn. 1:32 WNW
« Reply #60 on: February 11, 2016, 01:07:56 AM »
Thank you both, Ryan and Lucas, for visiting the Thread and for your nice comments.
Cheers,
Lance

Offline Trackpad

  • Hero Member
  • *****
  • Posts: 1306
Re: FE2b (Late) A5650 "Jess" 100 Sqn. 1:32 WNW
« Reply #61 on: February 11, 2016, 12:22:24 PM »
+14 ( I think!). What everyone else said, me too! Excellent work on the engine. I'm sure to build a Fee...once I finish the other 43 kits in the cache!  ;)

Good luck with the rest of this build!
Cheers!
Gary

"It was an adventure, a great adventure. And, like all great adventures, we never knew where it would lead or how it would end."

Offline lcarroll

  • Administrator
  • Hero Member
  • ******
  • Posts: 8659
Re: FE2b (Late) A5650 "Jess" 100 Sqn. 1:32 WNW
« Reply #62 on: February 11, 2016, 12:51:11 PM »
    Thanks Gary. Having seen your schedule of future Builds recently I suspect it will be a while before you get to a Fee, but then the Dolphin wasn`t on the agenda, and look at you go! :o
Cheers,
Lance

Offline Gisbod

  • Hero Member
  • *****
  • Posts: 2438
Re: FE2b (Late) A5650 "Jess" 100 Sqn. 1:32 WNW
« Reply #63 on: February 11, 2016, 05:55:57 PM »
Lance,

That engine is superb! Really stands up to the macro test beautifully!

Guy
“Oh! I have slipped the surly bonds of Earth -
Put out my hand, and touched the face of God.”

P.O. John Gillespie Magee 1941

Offline lcarroll

  • Administrator
  • Hero Member
  • ******
  • Posts: 8659
Re: FE2b (Late) A5650 "Jess" 100 Sqn. 1:32 WNW
« Reply #64 on: February 11, 2016, 10:48:43 PM »
    Thanks Guy. There are a few bits of dog fluff and the odd skin blemish apparent, especially to the Builder! Fortunately all but a few disappear when the Optivisor comes off! ;)
Cheers,
Lance

Offline moustique

  • Full Member
  • ***
  • Posts: 242
Re: FE2b (Late) A5650 "Jess" 100 Sqn. 1:32 WNW
« Reply #65 on: February 12, 2016, 01:39:47 AM »
Hi Lance
this engine is absolutly fantastic

Offline lcarroll

  • Administrator
  • Hero Member
  • ******
  • Posts: 8659
Re: FE2b (Late) A5650 "Jess" 100 Sqn. 1:32 WNW
« Reply #66 on: February 12, 2016, 01:46:55 AM »
Thank You, Moustique, your comments are always much appreciated.
Cheers,
Lance

Offline lcarroll

  • Administrator
  • Hero Member
  • ******
  • Posts: 8659
Re: FE2b (Late) A5650 "Jess" 100 Sqn. 1:32 WNW
« Reply #67 on: February 25, 2016, 08:20:00 AM »
   Finally progressed to the point where another update is required.

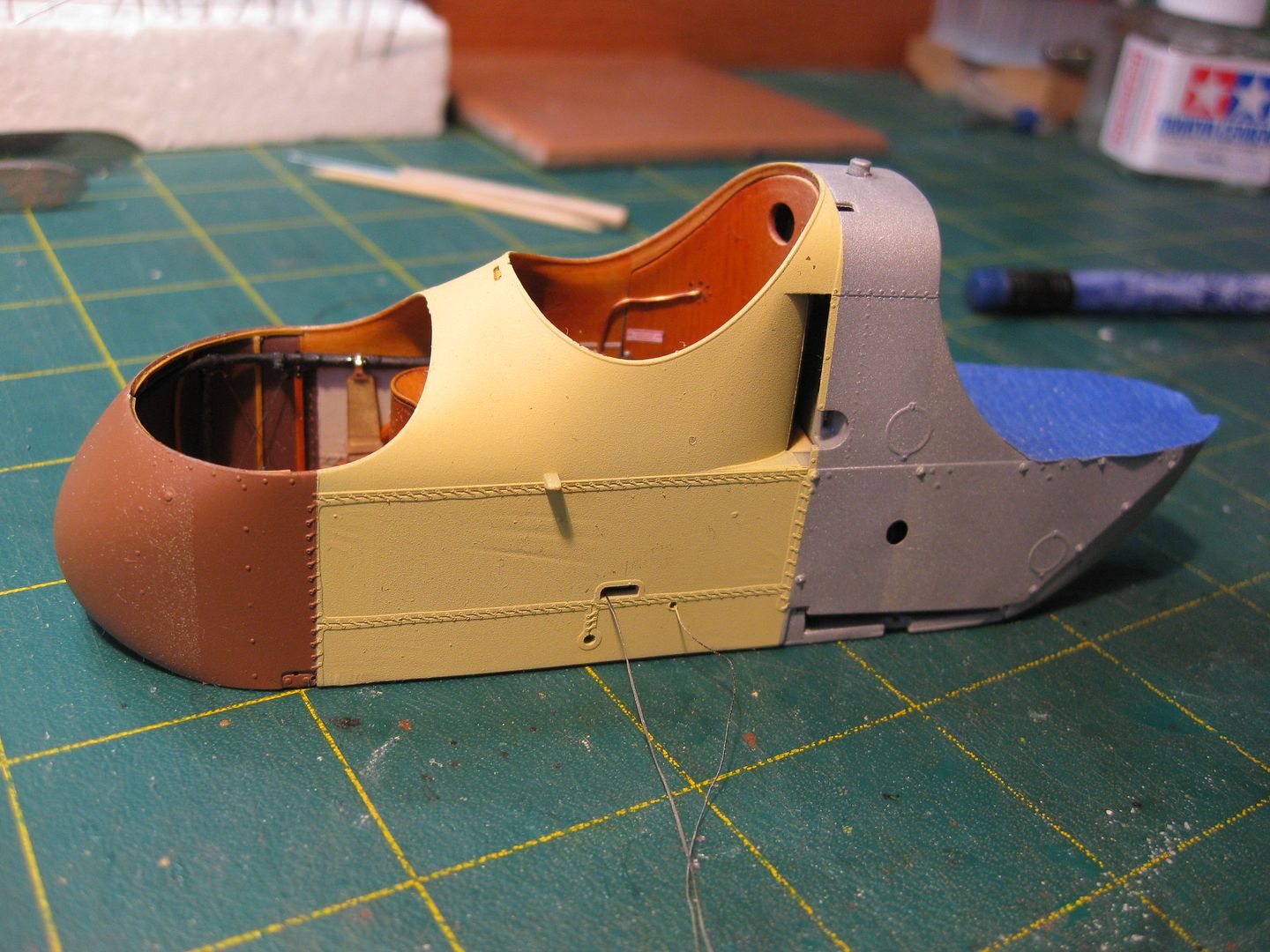

   The nacelle was completed and the engine installed along with the oil tank and "silencer". First step was the base coats for the four separate material sections of the nacelle, the dark wood strips laminated nose cone around the observer's cockpit, the fabric covered plywood around the pilot's cockpit, the aluminum aft section around the fuel and engine areas, and the fabric portion  on the mid lower nacelle. After 24 hours of drying a coat of hairspray was brushed over the entire component to assist in the final paint chipping and weathering step.

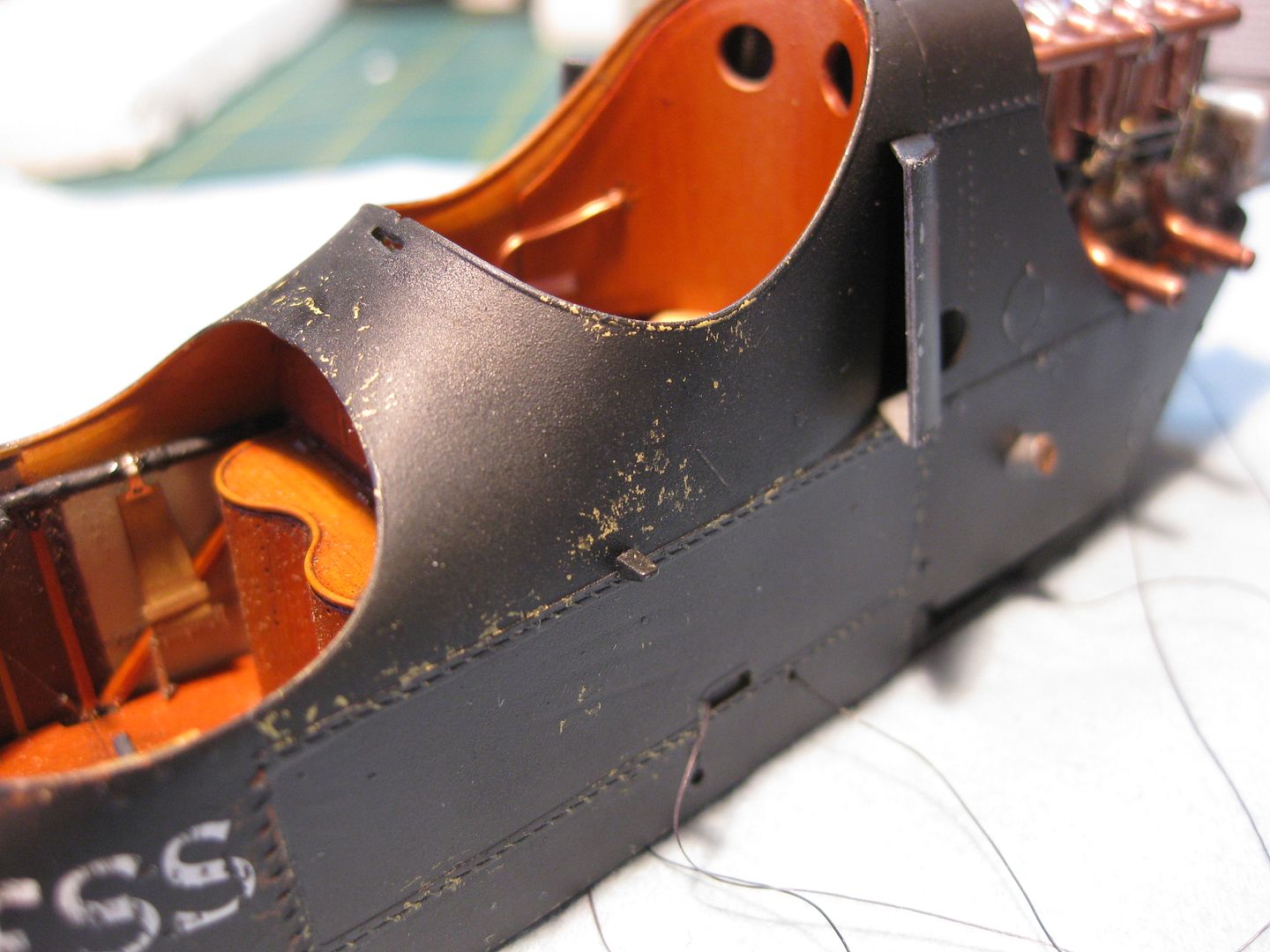

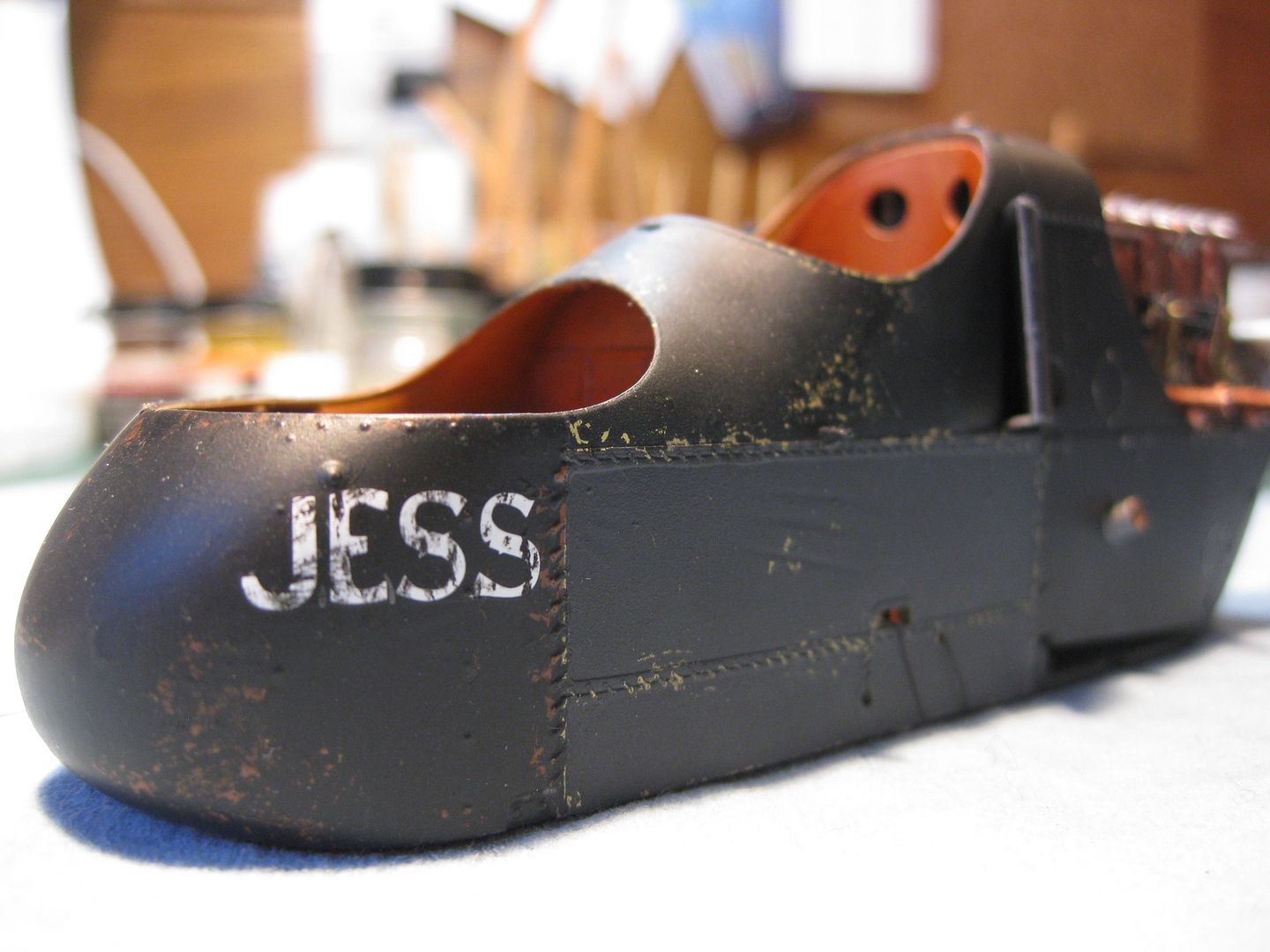

    The description of the original "Jess" in the Kit's Instructions states that "the black finish was weathered considerably and much faded" so I've elected for heavy "wear and tear" on this model. To that end the chipping was done quite heavily to show the underlying different materials. I used three different shades of Tamiya Black (Based on their NATO Black) for the wood and metal areas and a very darkened version of Tamiya "German Grey" for the fabric portion. Once the chipping was completed the surfaces were sprayed with a light protective coat of Vallejo Polyurethane Satin Varnish.

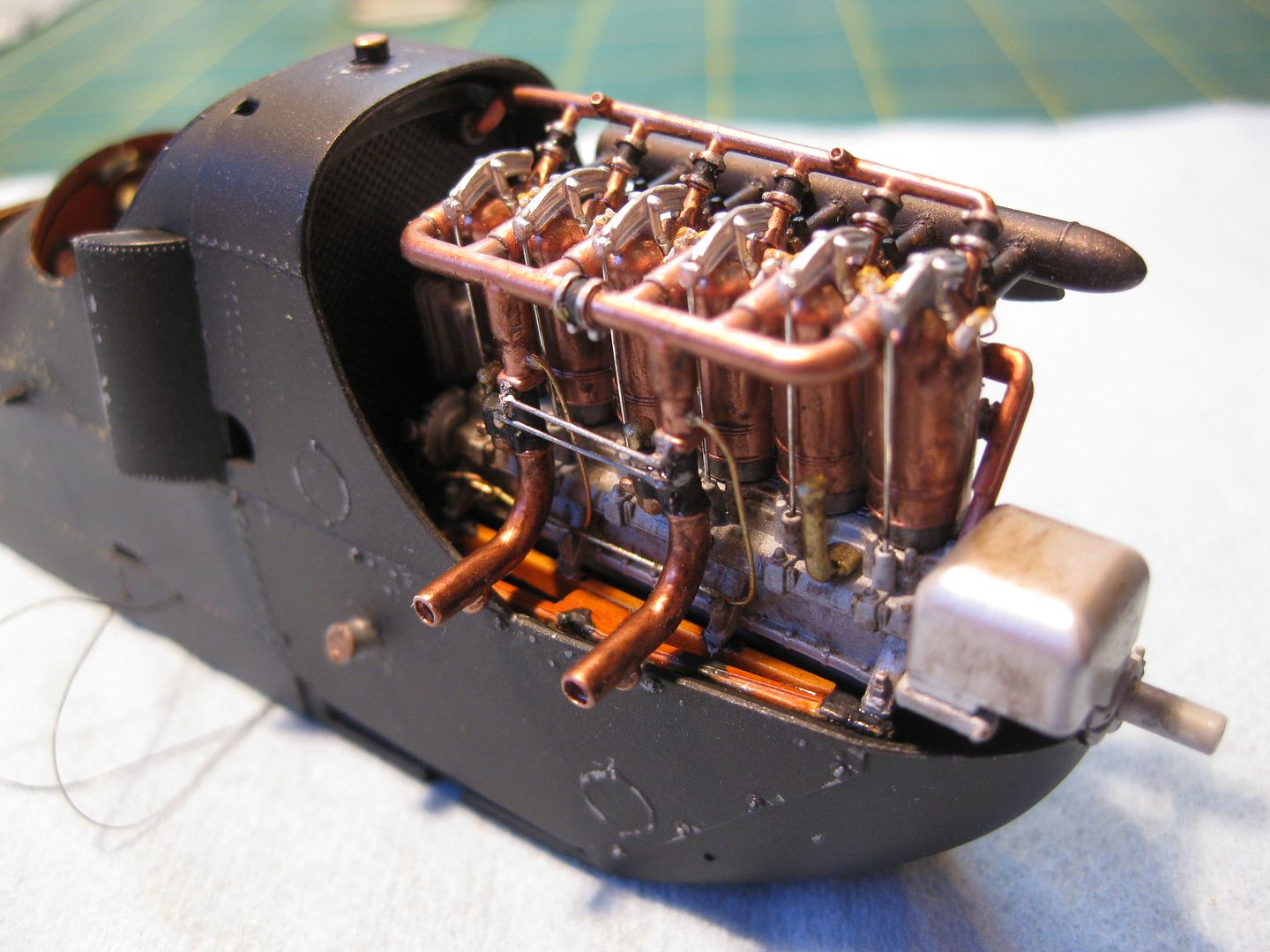

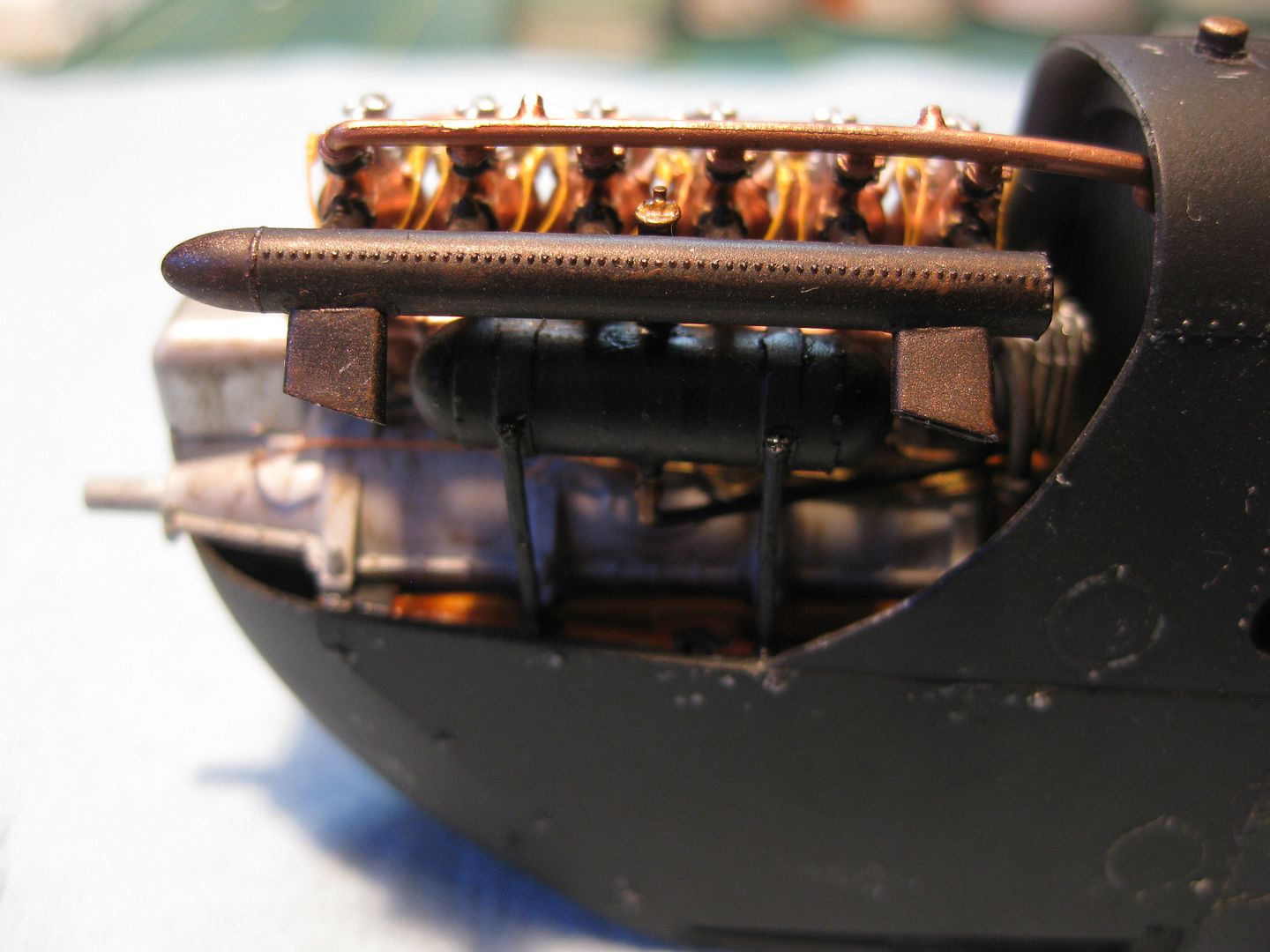

   The engine was installed and the oil tank and silencer followed.

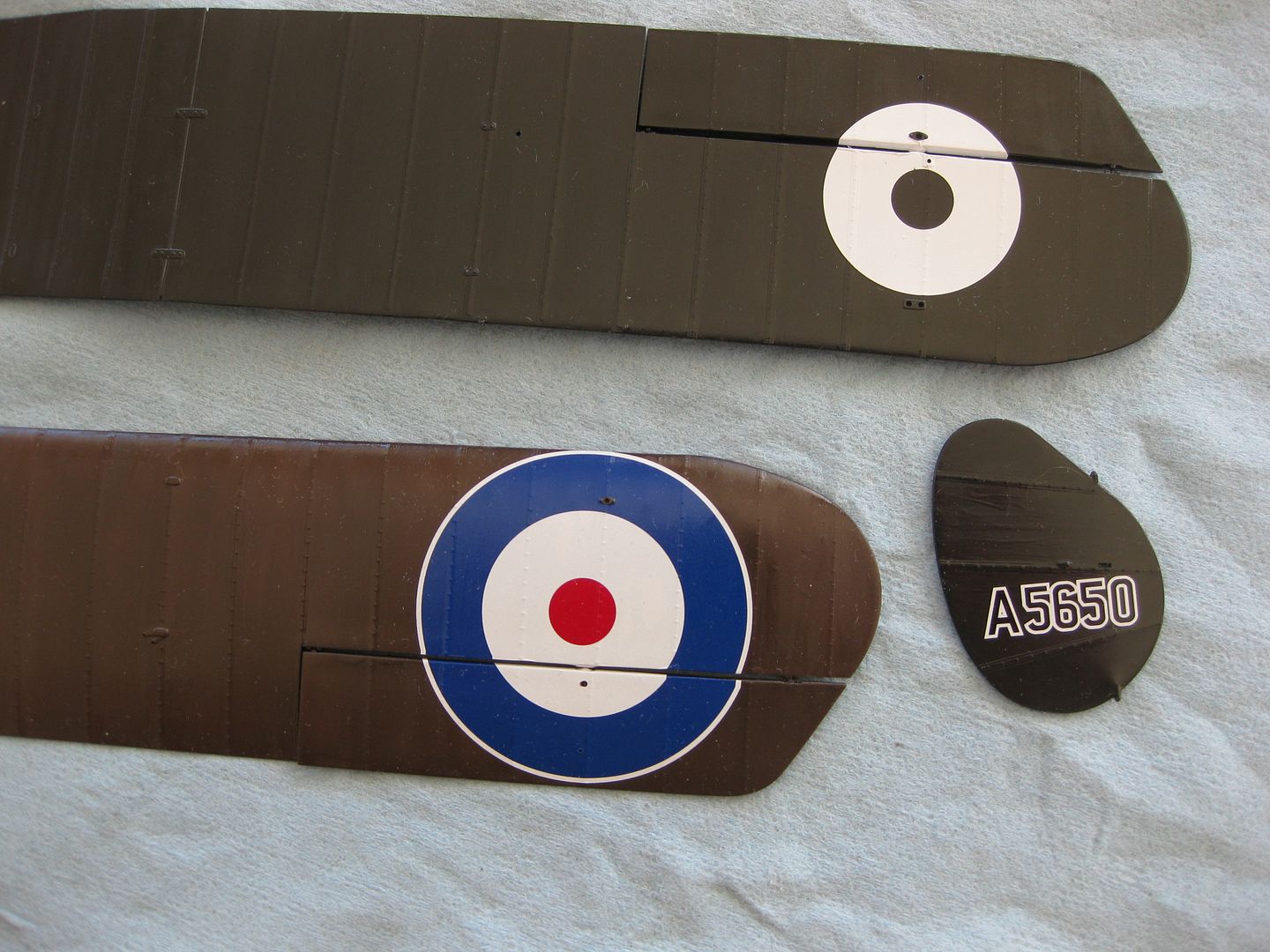

   Last, I managed to get three hand brushed coats of future on the wings and rudder and the decals applied. Once they've had a day or so to dry I'll overspray them with the matt version of the Vallejo Varnish in preparation for post shading.




   It's still a comfortably smooth Build however there's still plenty of time for confusion, carelessness, or disaster to strike! ??? I'll post another update once the shading and some weathering of the flying surfaces is completed.
Cheers,
Lance
« Last Edit: February 25, 2016, 10:16:58 AM by lcarroll »

Offline Des

  • Administrator
  • Hero Member
  • ******
  • Posts: 9325
    • ww1aircraftmodels.com
Re: FE2b (Late) A5650 "Jess" 100 Sqn. 1:32 WNW
« Reply #68 on: February 25, 2016, 08:42:09 AM »
A fantastic update Lance, the work you did on the outside of the nacelle is excellent along with the chipping, looks very authentic. The engine looks great sitting in position, you did a great job on the engine.

Des.
Late Founder of ww1aircraftmodels.com and forum.ww1aircraftmodels.com

Offline radio

  • Hero Member
  • *****
  • Posts: 3952
Re: FE2b (Late) A5650 "Jess" 100 Sqn. 1:32 WNW
« Reply #69 on: February 25, 2016, 08:50:22 AM »
Exellent update Lance.
Cheers
Martin

Offline gedmundson

  • Hero Member
  • *****
  • Posts: 1776
Re: FE2b (Late) A5650 "Jess" 100 Sqn. 1:32 WNW
« Reply #70 on: February 25, 2016, 08:57:36 AM »
Hi Lance,
Great paint chipping on the cockpit section, and that engine is amazing - I absolutely love the detail and paint finish on it.
Cheers,
Gary

Offline RAGIII

  • Hero Member
  • *****
  • Posts: 19694
Re: FE2b (Late) A5650 "Jess" 100 Sqn. 1:32 WNW
« Reply #71 on: February 25, 2016, 09:16:29 AM »
In a word, BRILLIANT!
RAGIII
"A man has to know his limitations": Harry Callahan

"Don't slop it on" Lynda Geisler

Offline lcarroll

  • Administrator
  • Hero Member
  • ******
  • Posts: 8659
Re: FE2b (Late) A5650 "Jess" 100 Sqn. 1:32 WNW
« Reply #72 on: February 25, 2016, 10:14:08 AM »
   Thank you for looking and for commenting Guys, compliments from Builders like yourselves are very much appreciated! :)
Cheers,
Lance

Offline GAJouette

  • Hero Member
  • *****
  • Posts: 3579
  • " Beware of the Spanish Inquisition"
Re: FE2b (Late) A5650 "Jess" 100 Sqn. 1:32 WNW
« Reply #73 on: February 25, 2016, 12:37:01 PM »
 Lance,
Absolutely outstanding update my old friend. What an awesome job you've done detailing her engine,very very impressive. The paint chipping really adds much to her appeal. WELL DONE Lance !
Highest Regards,
Gregory Jouette
" What Me Worry"

Offline stefanbuss

  • Hero Member
  • *****
  • Posts: 976
Re: FE2b (Late) A5650 "Jess" 100 Sqn. 1:32 WNW
« Reply #74 on: February 25, 2016, 03:31:14 PM »
Nice and convincing wear and tear on the nacelle - what are your plans for weathering the wings?

Stefan
