Author Topic: Wingnut Wings Albatros DV  (Read 13649 times)

Offline Epeeman

  • Hero Member
  • *****
  • Posts: 1419
Re: Wingnut Wings Albatros DV
« Reply #45 on: October 27, 2014, 06:37:14 AM »
Thank you, LM!

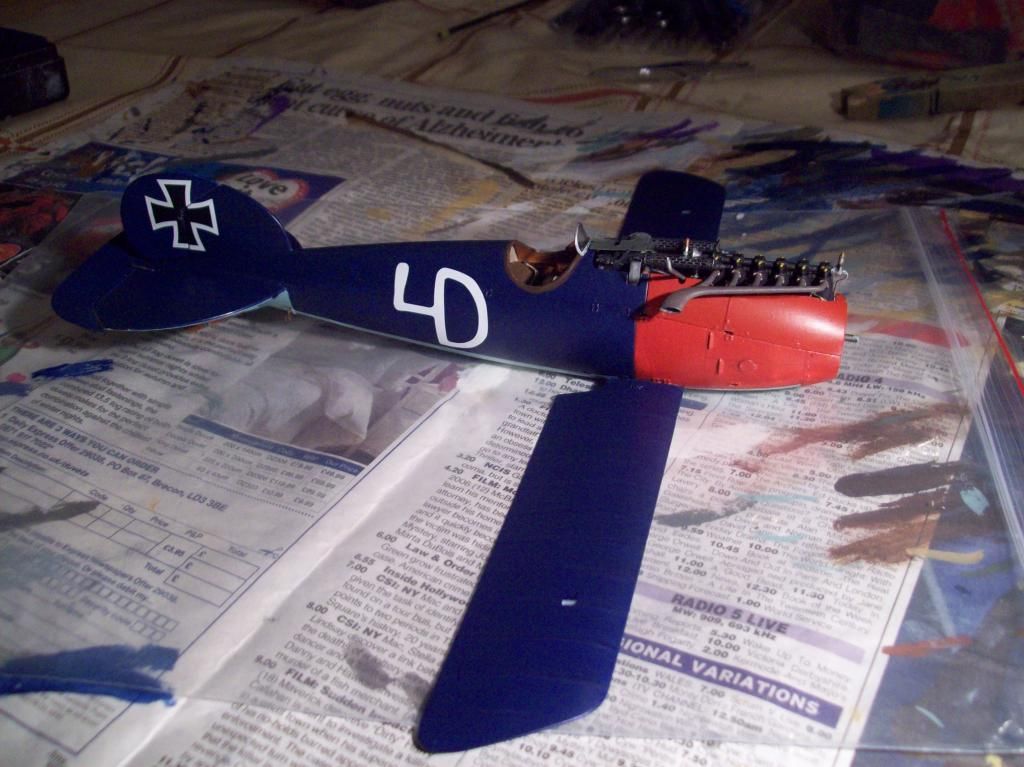

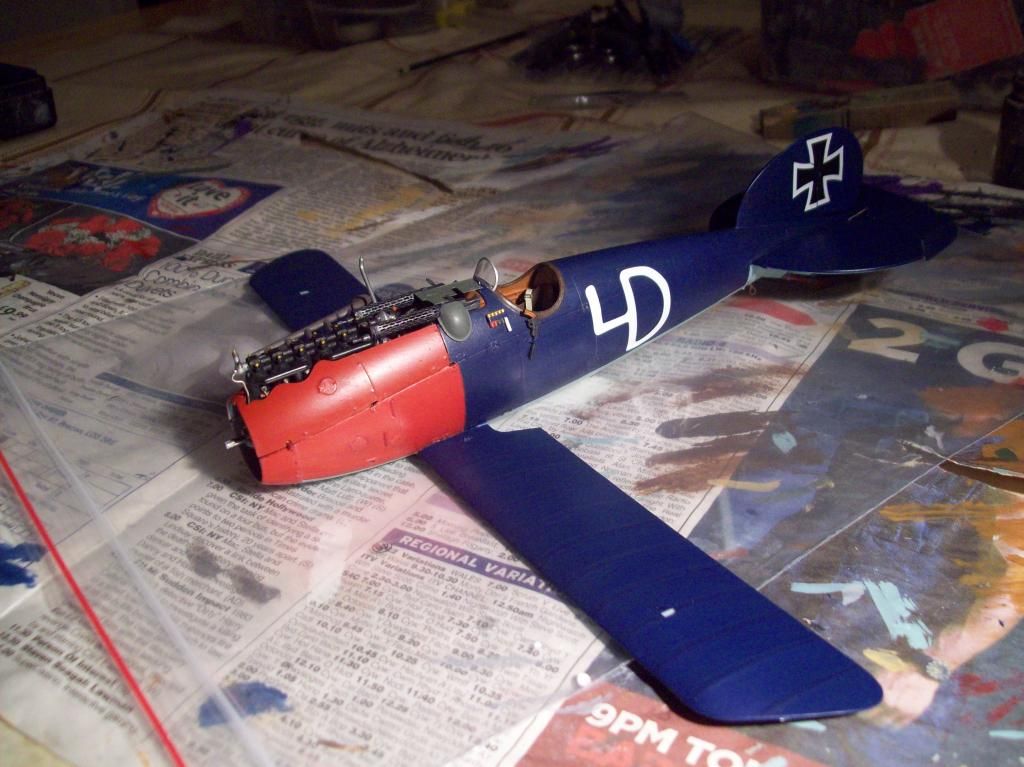

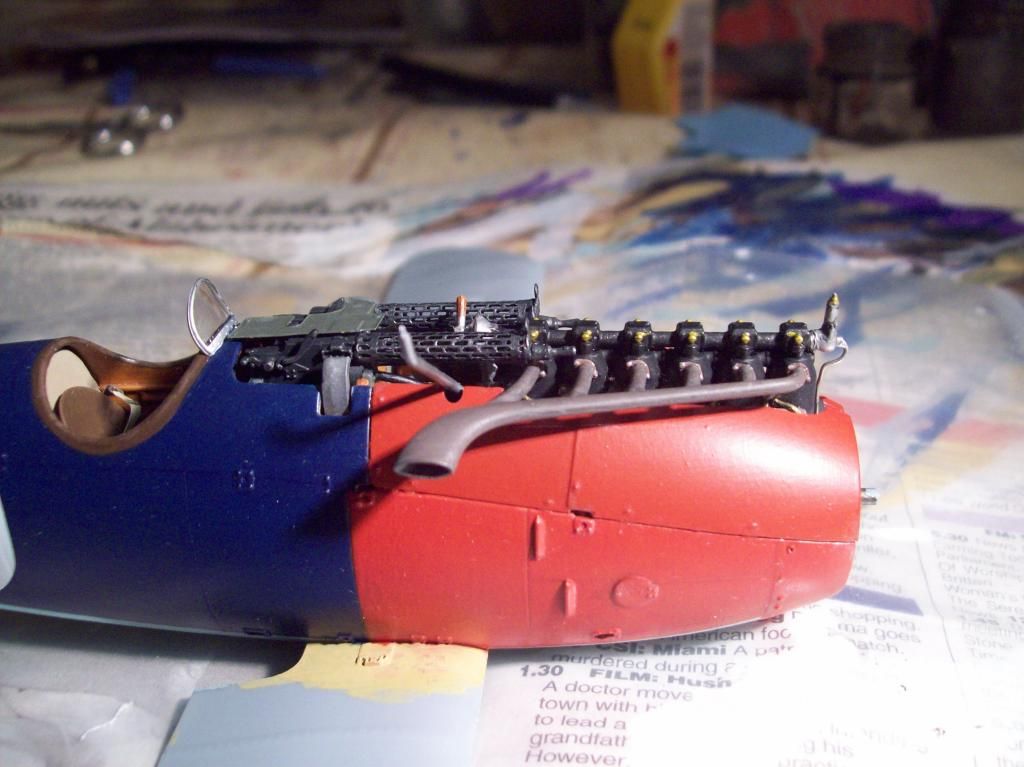

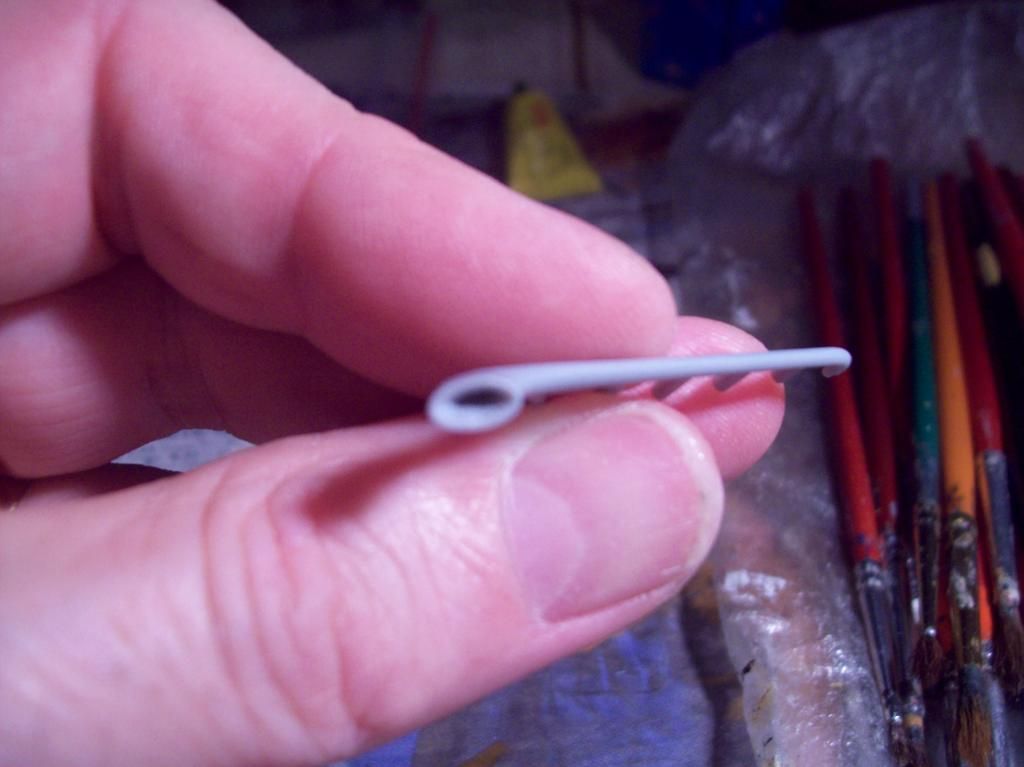

Just some small progress to report.  Painted underside of lower wing and applied decals.   In between painting, hollowed out the end of the exhaust by drilling, trimming with model knife and tidying by using oval file.



This was then painted up and attached to engine when completed.

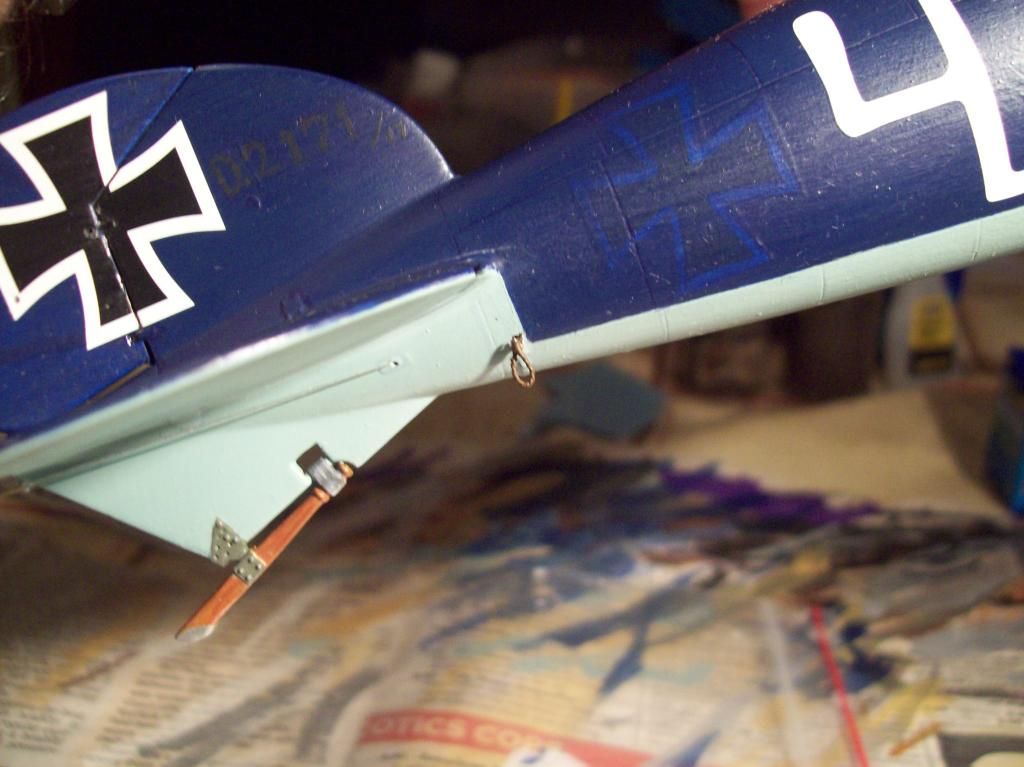

Had a go at knocking up the grab handles at the end of the fuselage.   Accomplished by twisting 5 amp fuse wire to create a cord/rope effect.  Attached to fuselage by making an eyelet from same wire - drilled into fuselage (where they needed to go) and super glued these eyelets in place.  I then threaded through my twisted wire, twisted ends and glued in place on the eyelet.    Handles painted leather brown.



Hopefully these don't look to bad?

Will paint the upper surface of the lower wing tomorrow evening all being well.

Regards

Dave

Logged
As we say in fencing, what's the point?

Offline radio

  • Hero Member
  • *****
  • Posts: 3952
Re: Wingnut Wings Albatros DV
« Reply #46 on: October 27, 2014, 06:44:25 AM »
It is a very fine work Dave.
Martin
Logged

Offline lone modeller

  • Hero Member
  • *****
  • Posts: 5522
Re: Wingnut Wings Albatros DV
« Reply #47 on: October 27, 2014, 08:27:37 AM »
Very fine work indeed. Those look like real grab handles and the exhaust also looks ver good.
Logged

Offline Epeeman

  • Hero Member
  • *****
  • Posts: 1419
Re: Wingnut Wings Albatros DV
« Reply #48 on: October 30, 2014, 08:00:20 AM »
Martin/LM - Thank you both

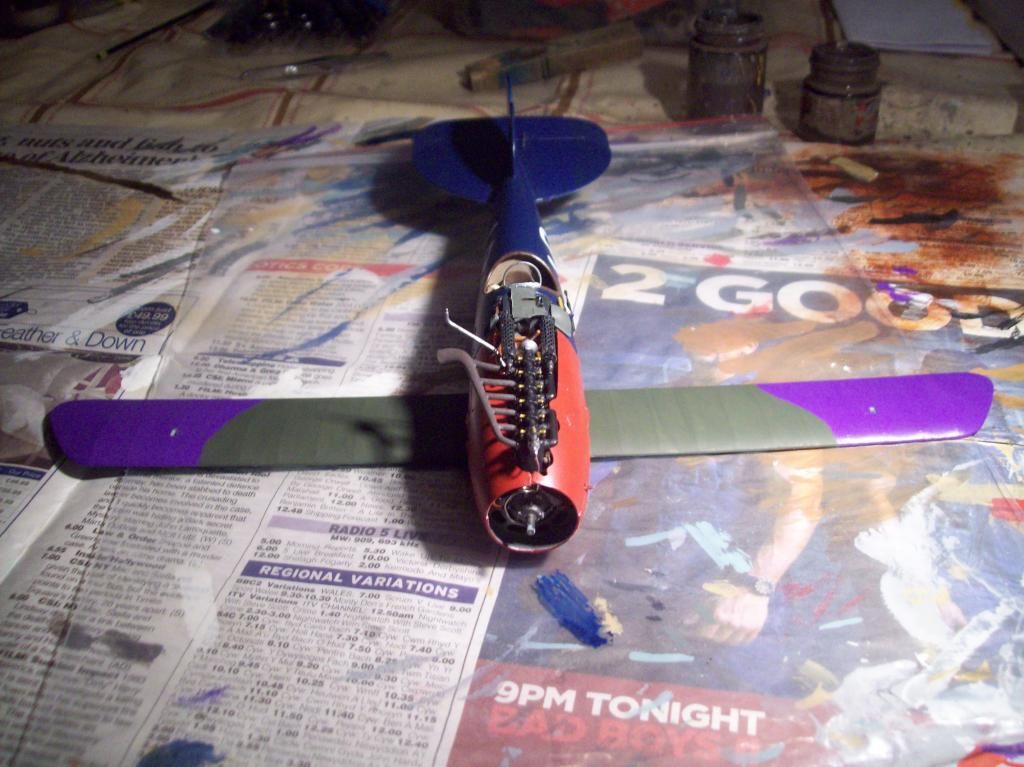

Top side of lower wing was first painted in the purple and green camoflage marking.   Once dry, over painted in the dark blue in attempt to achieve the base colours showing through the top coat.  This has worked but is not visible as I would have liked.  This nows completes the fuselage and lower wing.







Next stage will be to work on the top wing and struts.

Regards

Dave
Logged
As we say in fencing, what's the point?

Offline Des

  • Administrator
  • Hero Member
  • ******
  • Posts: 9325
    • ww1aircraftmodels.com
Re: Wingnut Wings Albatros DV
« Reply #49 on: October 30, 2014, 08:49:28 AM »
Ecellent work so far Dave, the exhaust hollowing and the rope grab handles are excellent details.

Des.
Logged
Late Founder of ww1aircraftmodels.com and forum.ww1aircraftmodels.com

Online lcarroll

  • Administrator
  • Hero Member
  • ******
  • Posts: 8659
Re: Wingnut Wings Albatros DV
« Reply #50 on: October 30, 2014, 09:13:18 AM »
   Absolutely impressed with those handles, Dave. A trick I'll steal with no shame for my next Albie Build!
Nice work all round so far.
Cheers,
Lance
Logged

Offline Alexis

  • Hero Member
  • *****
  • Posts: 8082
  • Love the self
Re: Wingnut Wings Albatros DV
« Reply #51 on: October 30, 2014, 10:25:16 AM »
The rope hand grabs are a very nice touch !





Terri
Logged
Hurra ! , Ich Leben Noch
Body and life is a vessel we use to travel the planet . Femininity is the gift , The miracle comes from what we do with it .

Offline coyotemagic

  • Hero Member
  • *****
  • Posts: 7710
  • "Here's to not buggering it up." -Winston Chuchill
    • My Models
Re: Wingnut Wings Albatros DV
« Reply #52 on: October 30, 2014, 11:42:04 AM »
Outstanding work on the translucent effect of the blue paint.  Looks just right to me.  I agree with the others about the added details.  Very nice.
Cheers,
Bud
Logged
"All men dream: but not equally. Those who dream in the dark recesses of the night awake in the day to find all was vanity. But the dreamers of day are dangerous men, for they may act their dreams with open eyes, and make it possible." -T. E. Lawrence

Offline RAGIII

  • Hero Member
  • *****
  • Posts: 19693
Re: Wingnut Wings Albatros DV
« Reply #53 on: October 30, 2014, 02:35:33 PM »
Amazing hand painting as always! How you do it is a Mystery to me!!
RAGIII
Logged
"A man has to know his limitations": Harry Callahan

"Don't slop it on" Lynda Geisler

Offline stefanbuss

  • Hero Member
  • *****
  • Posts: 976
Re: Wingnut Wings Albatros DV
« Reply #54 on: October 30, 2014, 06:52:17 PM »
What did you use for the mauve/purple colour?

Stefan
Logged

Offline Epeeman

  • Hero Member
  • *****
  • Posts: 1419
Re: Wingnut Wings Albatros DV
« Reply #55 on: October 31, 2014, 03:57:42 AM »
Des, Lance, Terri, Bud, Rick and Stefan -

Many thanks all!

Lance - No problem, mate use away with my pleasure.

Rick - To be honest, on this occasion, I have not achieved such a smooth paint finish on the fuselage this time round as I would have liked.

Stefen - the purple is Humbrol acrylic matt 5042 as Revell don't have a purple colour in their paint range.

More in due course

Regards

Dave
Logged
As we say in fencing, what's the point?

Offline Epeeman

  • Hero Member
  • *****
  • Posts: 1419
Re: Wingnut Wings Albatros DV
« Reply #56 on: November 06, 2014, 08:57:15 AM »
Quick update -

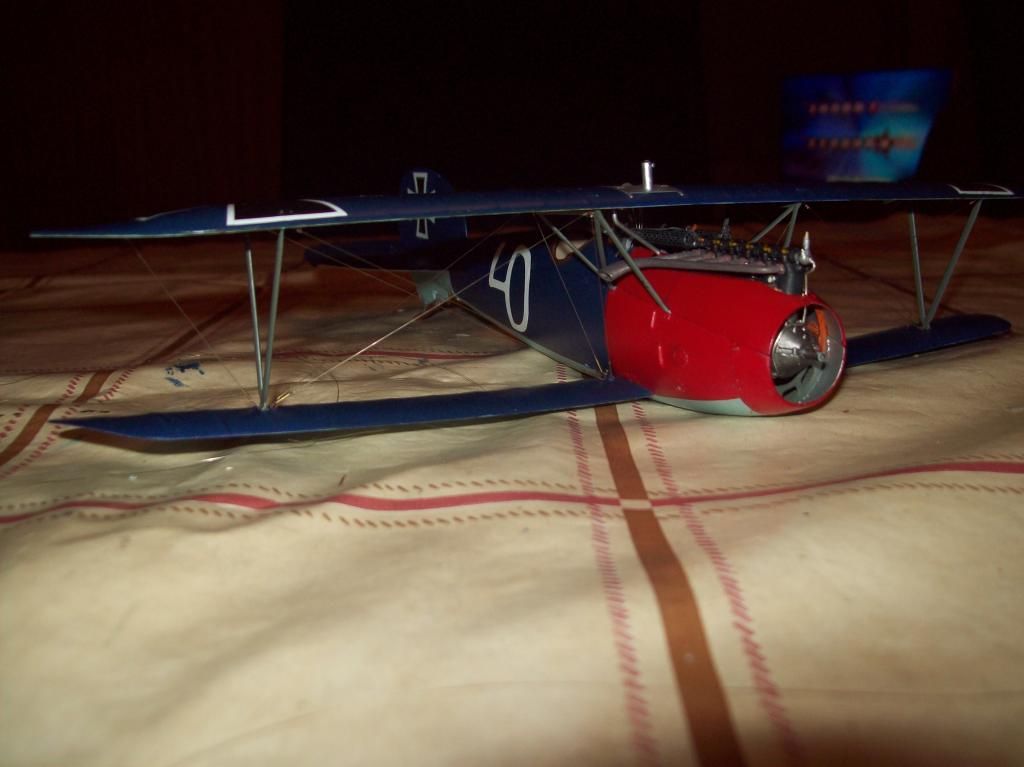

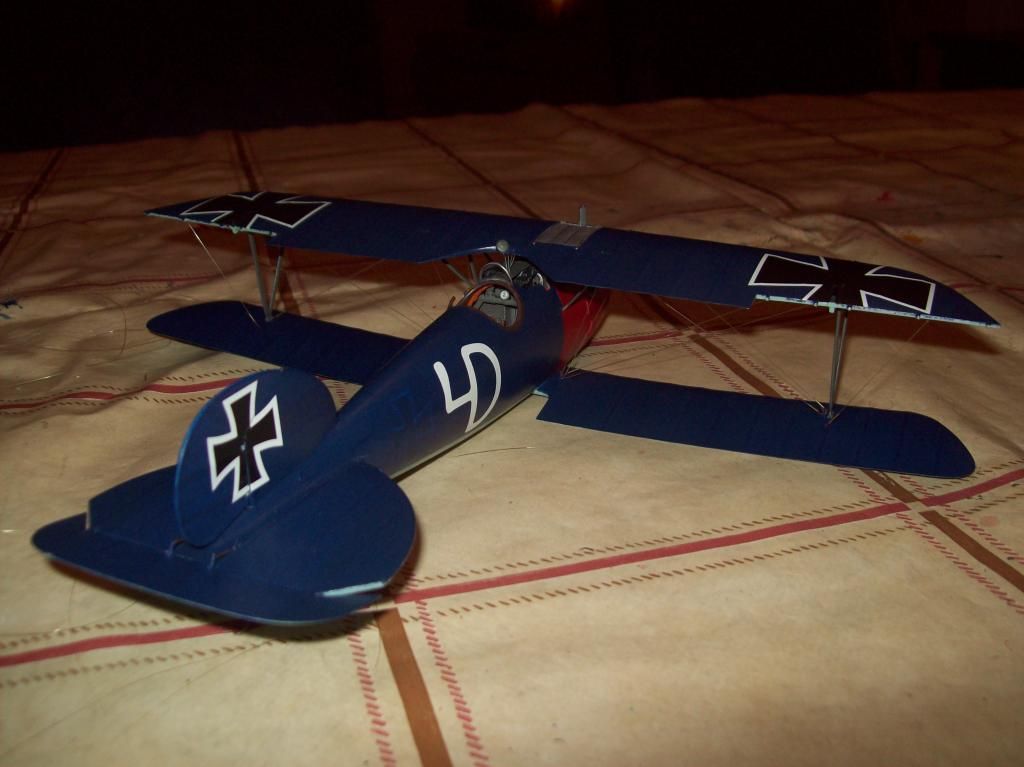

Top wing installed and have made a start on the main wing rigging.   Rigging was accomplished by using 'Bobs Buckles' turnbuckles - my first attempt at using these.   I've made a few mistakes fitting them (sorry Bob!) but I really got to grips with them after a while.  In fact, using these  made rigging a lot easier and quicker.  I really like them! - hopefully, by my next build, I will make a neater job with them.






Next stage will be to paint the rigging lines before moving on to the undercarriage.

Regards

Dave

Logged
As we say in fencing, what's the point?

Offline RAGIII

  • Hero Member
  • *****
  • Posts: 19693
Re: Wingnut Wings Albatros DV
« Reply #57 on: November 06, 2014, 09:40:14 PM »
The rigging is looking fantastic! You are  almost at the finish line now. Lovely work!
RAGIII
Logged
"A man has to know his limitations": Harry Callahan

"Don't slop it on" Lynda Geisler

Offline TomR1981

  • Full Member
  • ***
  • Posts: 153
Re: Wingnut Wings Albatros DV
« Reply #58 on: November 06, 2014, 10:17:39 PM »
Dave,

You're doing a great job on this, the rigging and finish are very impressive. I'm looking forward to seeing the finished model.

Tom
Logged

Offline radio

  • Hero Member
  • *****
  • Posts: 3952
Re: Wingnut Wings Albatros DV
« Reply #59 on: November 07, 2014, 02:38:08 AM »
Very nice painting Dave.
Martin
Logged
