Author Topic: "Shelf Queen 2025 GB" Eduard 1/48 Hannover CL.IIIa....FINI...  (Read 4854 times)

Online Allan31

  • Hero Member
  • *****
  • Posts: 584
"Shelf Queen 2025 GB" Eduard 1/48 Hannover CL.IIIa....FINI...
« on: February 13, 2025, 04:47:37 AM »
This actually started as somebody else's "shelf queen" but it IS already started. I woke up and didn't want to go another day without a Hannover on the shelf.
Evilbay offered this up for $34.99. Already started, it's qualified for the "Shelf Queen" GB.



Came with usable kit decals and an additional set that would have been included with the Koster Aero Enterprises Hannover kit.

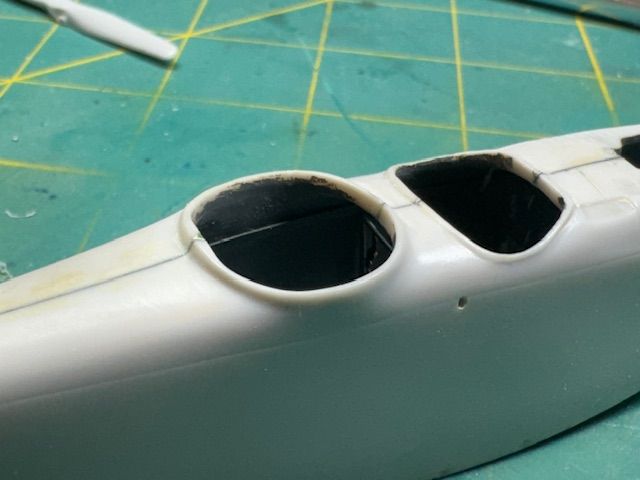

Fuselage and cockpit is already together and painted dark grey, should be varnished wood, I hope I can get in there.



Several bits have come loose in the cockpit. An inventory of parts revealed everything is complete in the box except one itty bitty cylinder head.



I have 5, I need 6. I hope I can fix these after being damaged. I will try and fake something up and put on the last cylinder hidden under the wing.



I will re-imagine these intakes with round material instead of the P-E stuff.

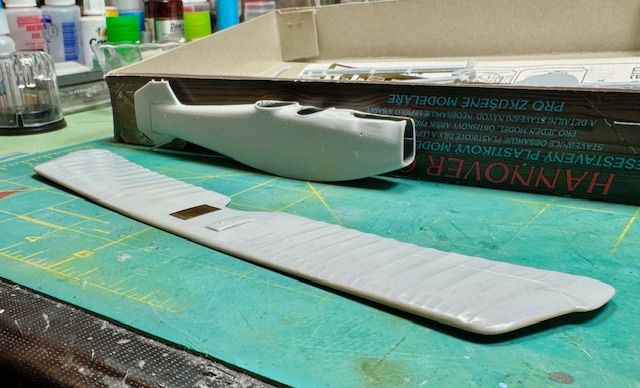

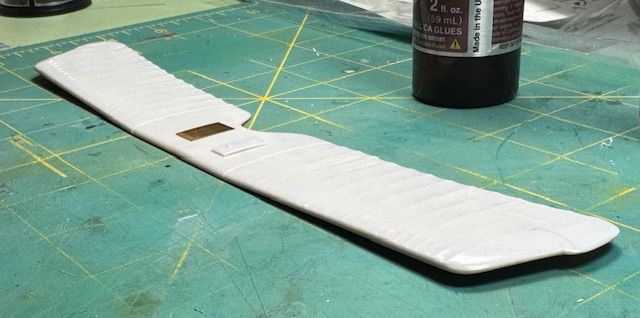

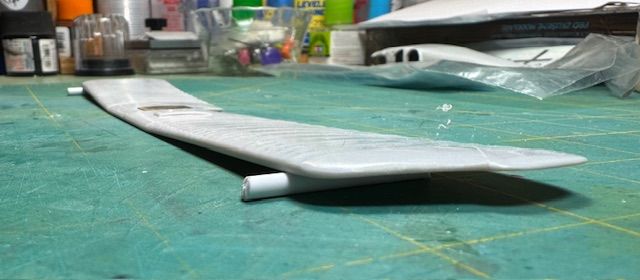

The wing is incorrectly made as one long sweeping curve. The Hannover had 3 separate sections of straight upper wing.

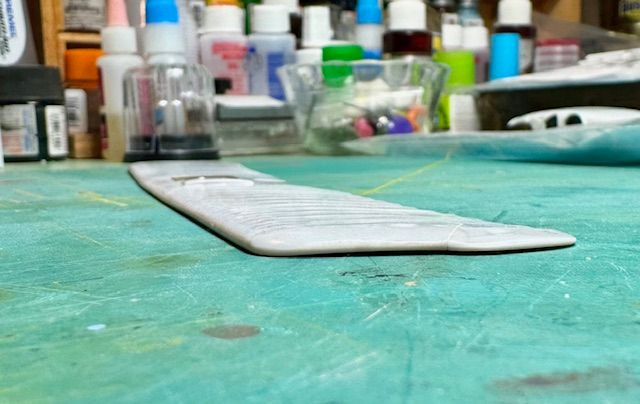

Boiling water allowed me to soften enough to straighten and flatten.

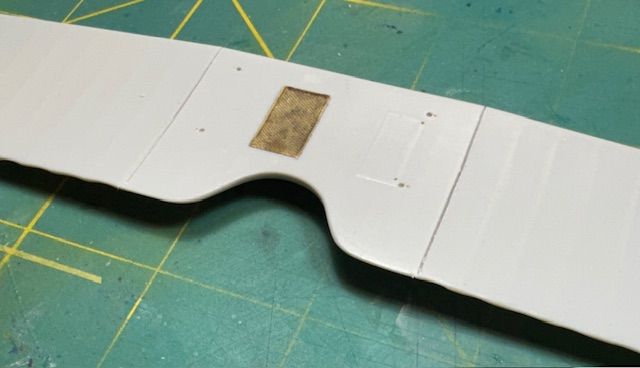

I then made deep cuts on the bottom and super glued in correct position. (Notice the holes for the cabane struts are not equidistance from the center line of the wing, put a pin in that for now...)

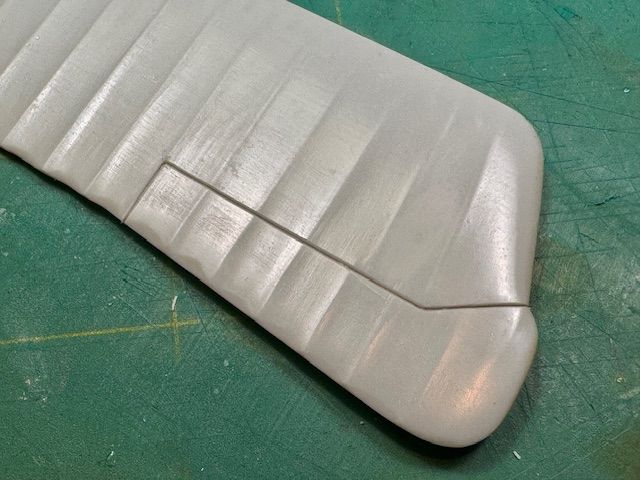

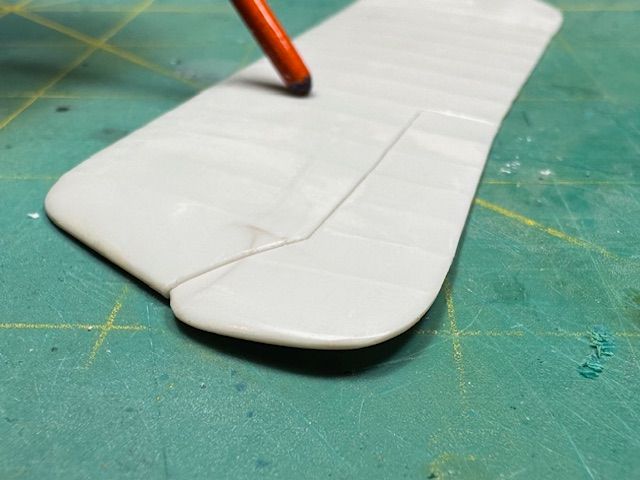

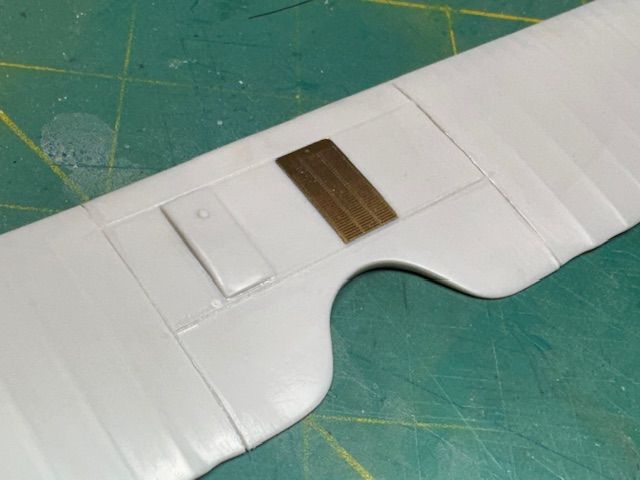

Apparently all early Eduard kits were timid on panel lines so all those have been re-scored deeper along with the missing ones on the top wing. I will add the missing hinges with my furnace tape.

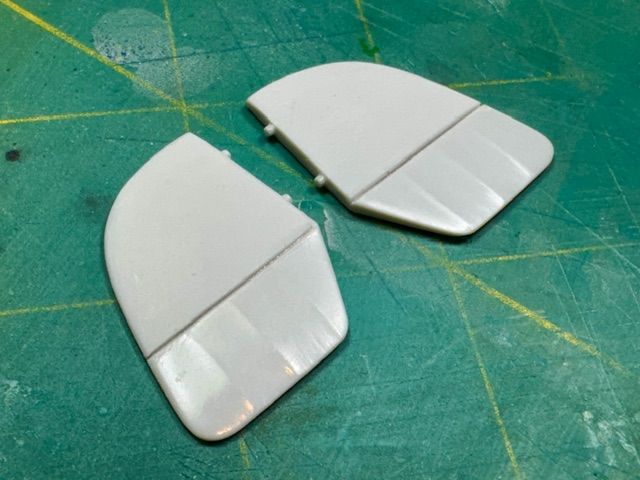

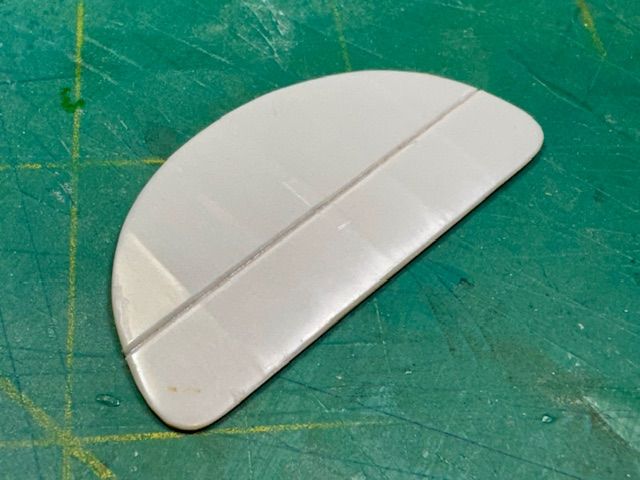

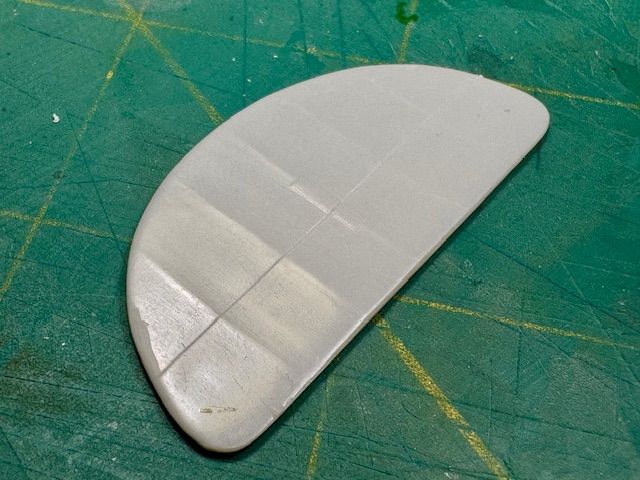

Bottom stabilizer was fabric covered wood so no ribs.





Just like the Pup, early Eduard kits had good bones and plenty of room to improve.

More soon.
« Last Edit: April 18, 2025, 11:11:54 AM by Allan31 »
Thanks,
Allan Buttrick

Youth, talent, hard work, and enthusiasm are no match for old age and treachery.

Offline Dirigible-Al

  • Hero Member
  • *****
  • Posts: 837
Re: "Shelf Queen 2025 GB" Eduard 1/48 Hannover CL.IIIa....
« Reply #1 on: February 13, 2025, 06:04:06 AM »
Looks like you are putting in a lot of effort to correct the shortcomings of this kit. I have seen these Hanovers end up looking really good so I am looking forward to seeing the progress of your one.
Alan.
I heard that it all started when a bloke called Archie Duke shot an ostrich 'cause he was hungry!

Offline andonio64

  • Hero Member
  • *****
  • Posts: 1792
  • There's no hurry
Re: "Shelf Queen 2025 GB" Eduard 1/48 Hannover CL.IIIa....
« Reply #2 on: February 13, 2025, 06:49:43 AM »
Nice re-start Alan!

Offline Tim Mixon

  • Hero Member
  • *****
  • Posts: 961
  • Main focus is 1/72 WWI
Re: "Shelf Queen 2025 GB" Eduard 1/48 Hannover CL.IIIa....
« Reply #3 on: February 13, 2025, 09:53:04 AM »
Th his id going to be a treat to watch Allan. Lots of colorful options to paint it.

Offline NigelR

  • Hero Member
  • *****
  • Posts: 1930
Re: "Shelf Queen 2025 GB" Eduard 1/48 Hannover CL.IIIa....
« Reply #4 on: February 15, 2025, 07:27:22 PM »
Excellent work on this. This kit is definitely worth the effort IMO, so it's great to see you doing it justice.

Online Allan31

  • Hero Member
  • *****
  • Posts: 584
Re: "Shelf Queen 2025 GB" Eduard 1/48 Hannover CL.IIIa....
« Reply #5 on: February 16, 2025, 11:52:39 PM »

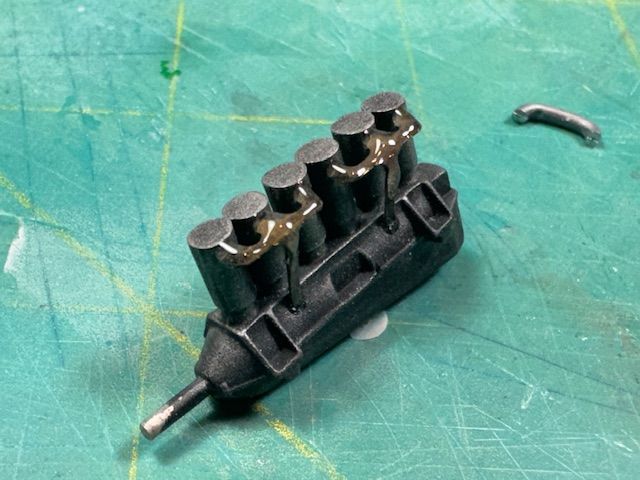

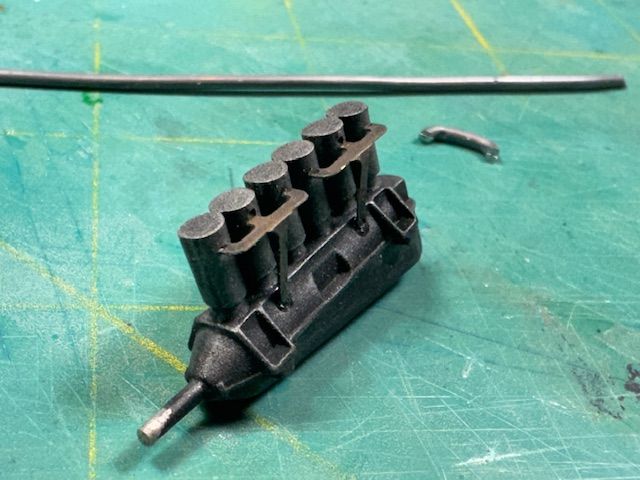

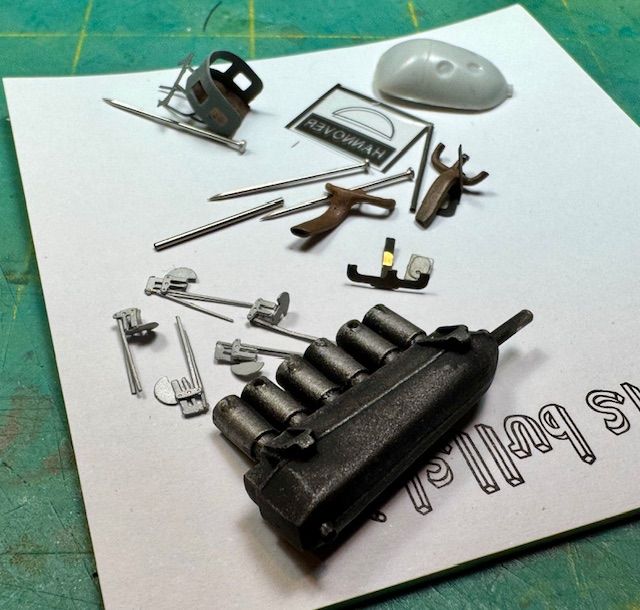

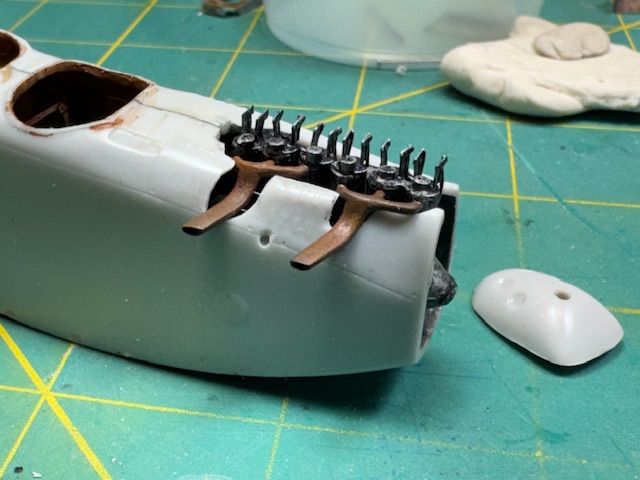

I tried to make my own intake manifolds but it wasn't working out so I used the kits P-E.



I tried to give it some dimension beyond the flat brass by adding some 5-minute epoxy.

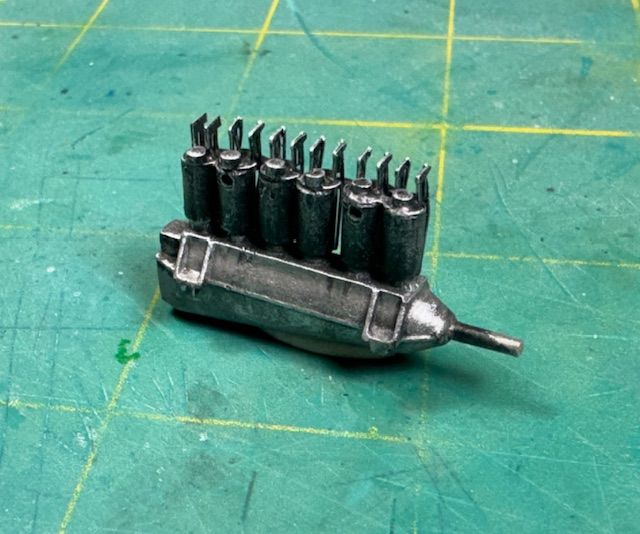

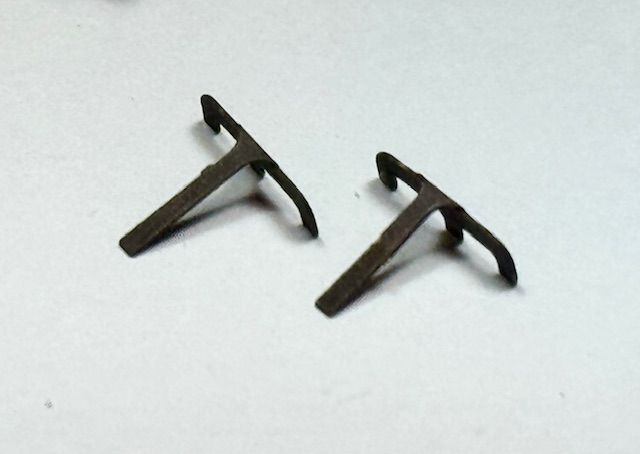

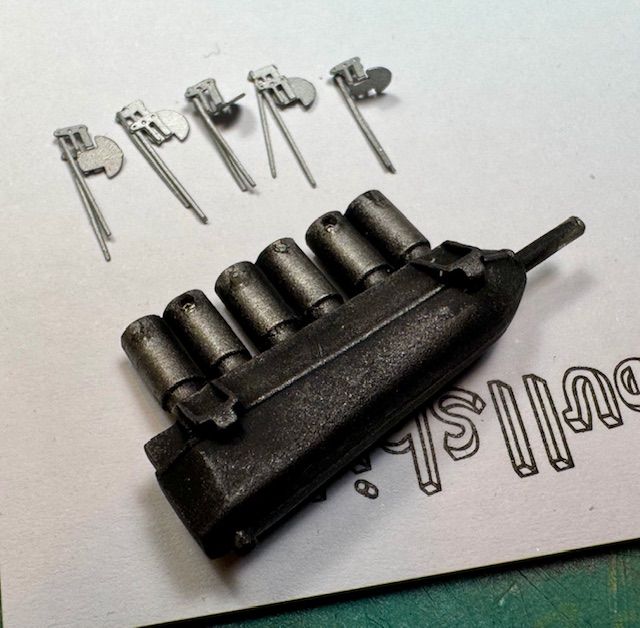

I was able to straighten out the rocker arms that came bent in the kit. I made the missing rocker arm set from sheet plastic.





This should be fine since so much engine is hidden by covers.

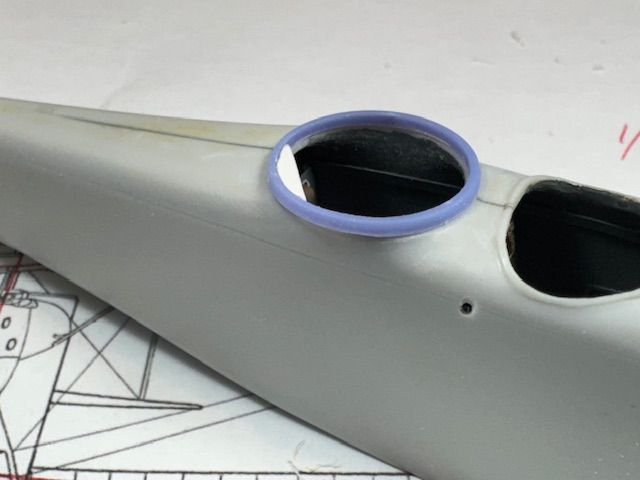

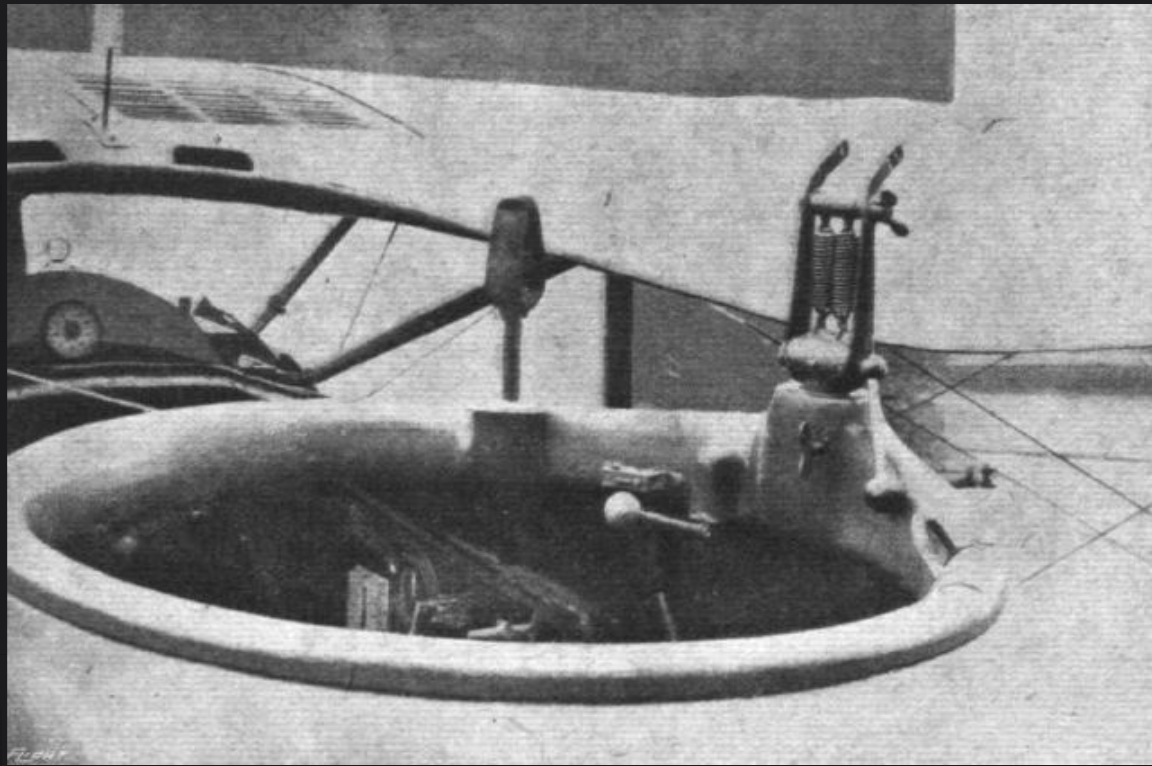

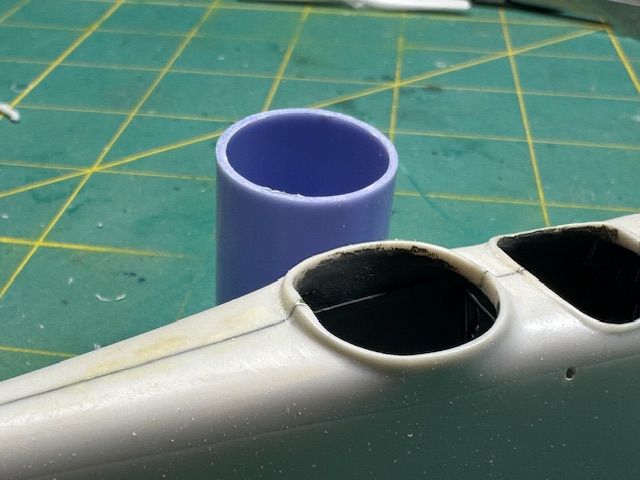

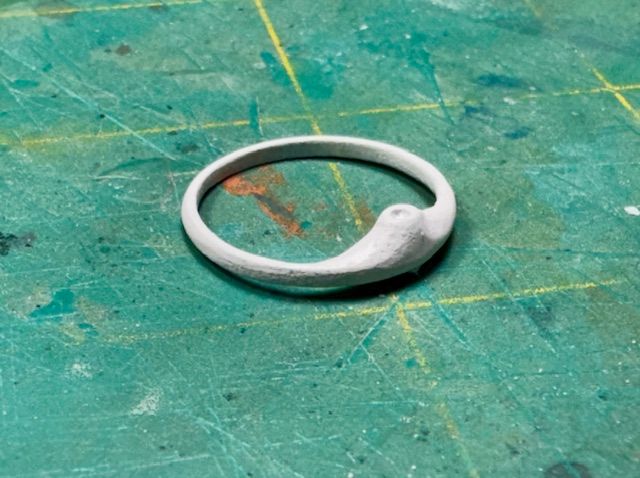

I was surprised (perhaps I shouldn't be) that Eduards did not include any kind of separate gun ring for the rear cockpit.

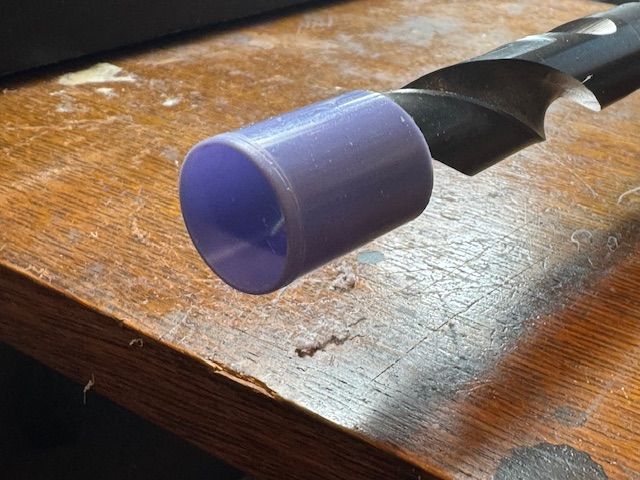

Years ago I found somekind of knitting needles or something at the craft store bargin bin for pennies. I bought them for the variety of sizes and made from plastic tubes.

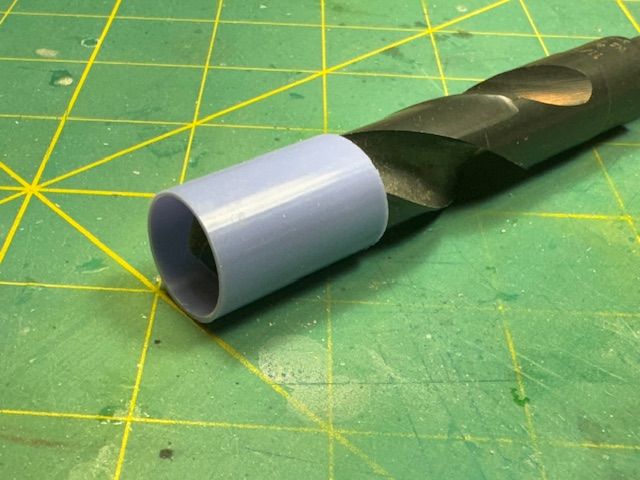

I found a bit the correct size to hold the tube and mounted it in my drill to use as a lath.



I used the back of a x-acto blade to cut off a ring.

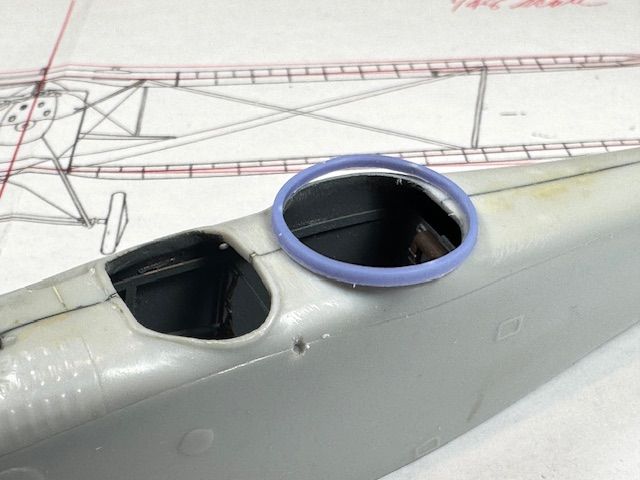

Still a bit large, I removed a small section to lessen the diameter.







Close enough.



I'm working on the interior and trying to decide if I want to try and add the warpage or washout to the ailerons. More hot water on the kitchen stove....
Thanks,
Allan Buttrick

Youth, talent, hard work, and enthusiasm are no match for old age and treachery.

Offline Dirigible-Al

  • Hero Member
  • *****
  • Posts: 837
Re: "Shelf Queen 2025 GB" Eduard 1/48 Hannover CL.IIIa....
« Reply #6 on: February 17, 2025, 01:53:36 AM »
Great bit of scratch building.
Alan.
I heard that it all started when a bloke called Archie Duke shot an ostrich 'cause he was hungry!

Offline NigelR

  • Hero Member
  • *****
  • Posts: 1930
Re: "Shelf Queen 2025 GB" Eduard 1/48 Hannover CL.IIIa....
« Reply #7 on: February 17, 2025, 07:27:06 PM »
Now that really is clever scratchbuilding, well done! And your fix for the intake manifolds looks great, the flat lower part will be hidden anyway.

Online Allan31

  • Hero Member
  • *****
  • Posts: 584
Re: "Shelf Queen 2025 GB" Eduard 1/48 Hannover CL.IIIa....
« Reply #8 on: February 21, 2025, 10:08:52 AM »
A bit more progress.

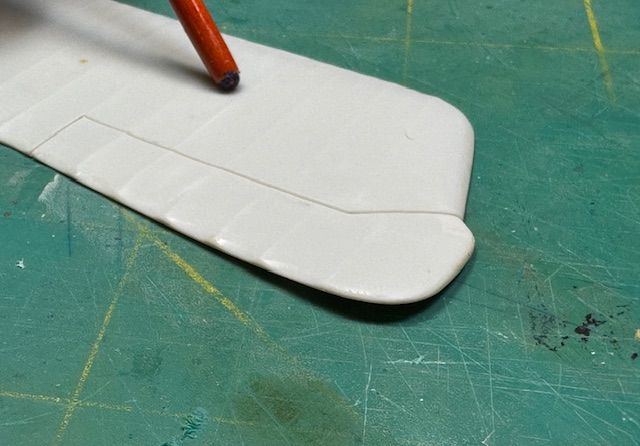

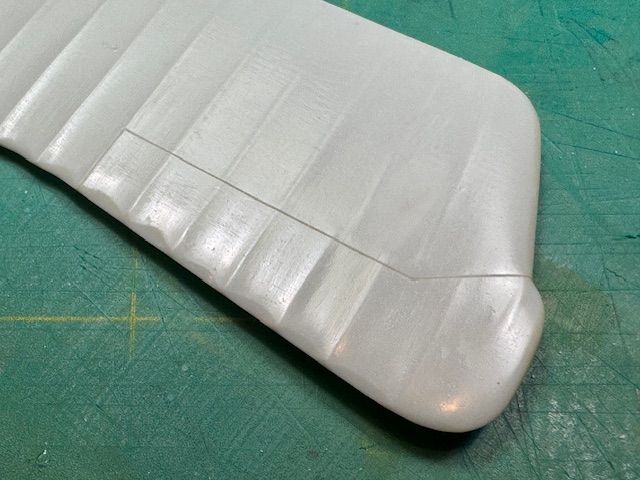

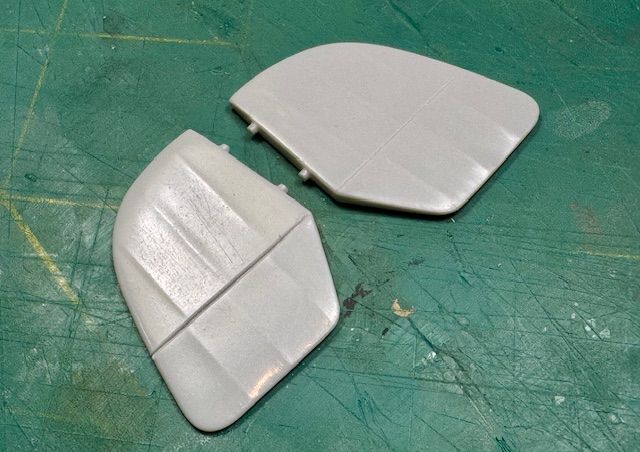

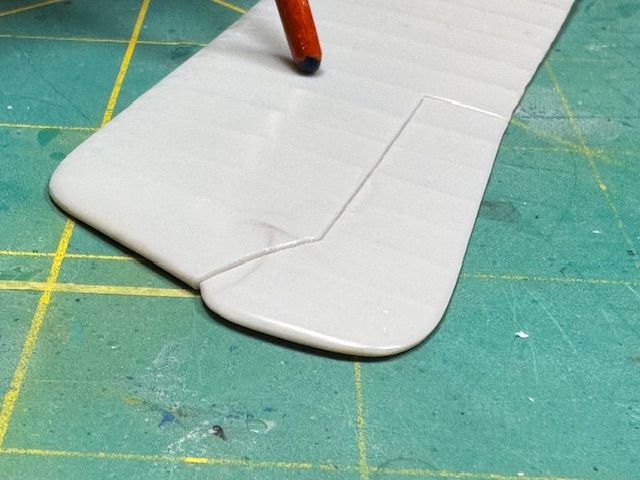

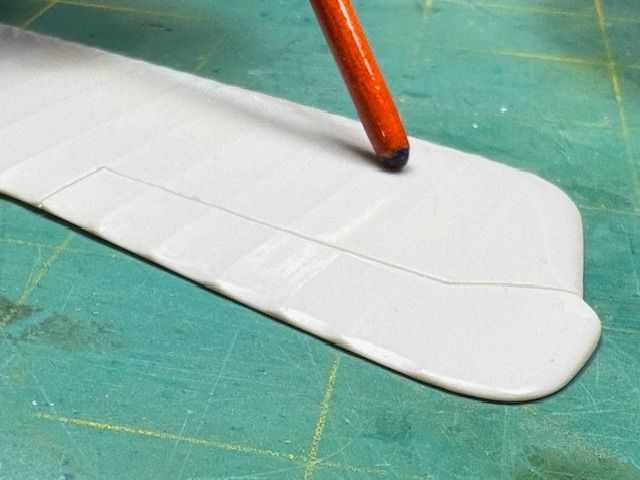

There is noticeable wash-out ( correct word?) on the ailerons. Out with the boiling water again.

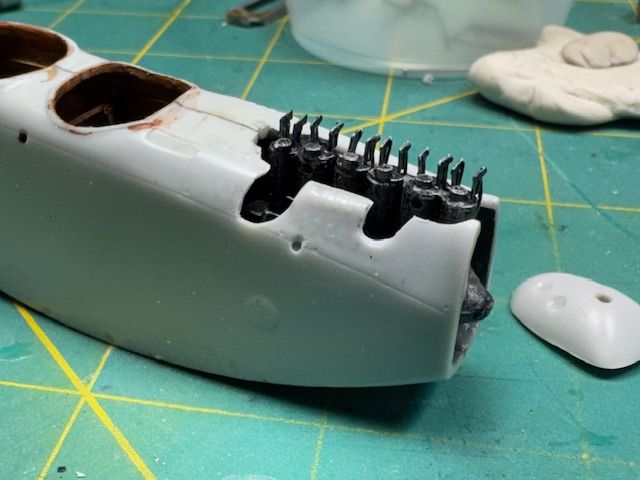

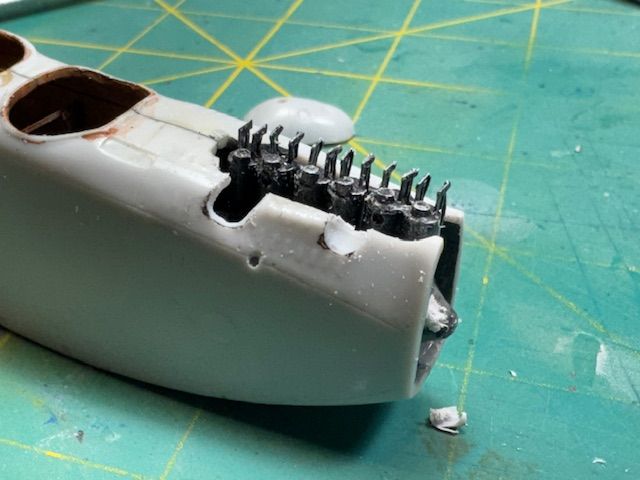

Eduard would have you hang the exhaust entirely outside the engine covers. Hannover had cut outs for the exhaust.







I think I'm about ready to start painting, I'll start with lozenges on the upper wing.

More soon.
Thanks,
Allan Buttrick

Youth, talent, hard work, and enthusiasm are no match for old age and treachery.

Offline Tim Mixon

  • Hero Member
  • *****
  • Posts: 961
  • Main focus is 1/72 WWI
Re: "Shelf Queen 2025 GB" Eduard 1/48 Hannover CL.IIIa....
« Reply #9 on: February 21, 2025, 12:47:21 PM »
That?s looking really good Allan. You have about as much corrections and scratch building as I had with the 1/72 Airfix kit!
Keep up the great work!

Online Allan31

  • Hero Member
  • *****
  • Posts: 584
Re: "Shelf Queen 2025 GB" Eduard 1/48 Hannover CL.IIIa....
« Reply #10 on: February 22, 2025, 03:12:38 PM »
Where can we find your Hannover, would love to see it.
« Last Edit: February 22, 2025, 11:47:18 PM by Allan31 »
Thanks,
Allan Buttrick

Youth, talent, hard work, and enthusiasm are no match for old age and treachery.

Offline Tim Mixon

  • Hero Member
  • *****
  • Posts: 961
  • Main focus is 1/72 WWI
Re: "Shelf Queen 2025 GB" Eduard 1/48 Hannover CL.IIIa....
« Reply #11 on: February 23, 2025, 12:15:55 AM »
It?s here on this site as well as the 1/72 Hyperscale website.

https://forum.ww1aircraftmodels.com/index.php?topic=13661.msg252704#msg252704

All the best,
Tim

Offline RAGIII

  • Hero Member
  • *****
  • Posts: 19694
Re: "Shelf Queen 2025 GB" Eduard 1/48 Hannover CL.IIIa....
« Reply #12 on: February 27, 2025, 03:21:51 AM »
Having owned but not built one of these I admire what you are doing here! Outstanding work on the corrections and additions. Moving along quite well!
RAGIII
"A man has to know his limitations": Harry Callahan

"Don't slop it on" Lynda Geisler

Online Allan31

  • Hero Member
  • *****
  • Posts: 584
Re: "Shelf Queen 2025 GB" Eduard 1/48 Hannover CL.IIIa....
« Reply #13 on: March 02, 2025, 02:32:29 PM »
Thanks all for following along.

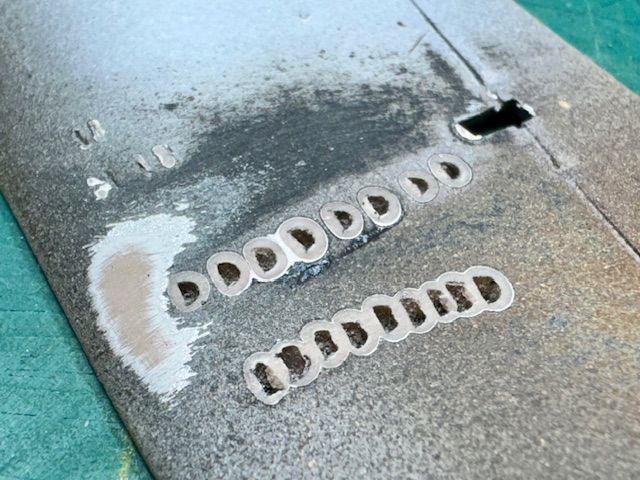

There are about 50 little rear facing exhaust louvers around the cowling.



Eduard has these wrong and I was attempting to correct them but I just can not figure out a good way to do it.

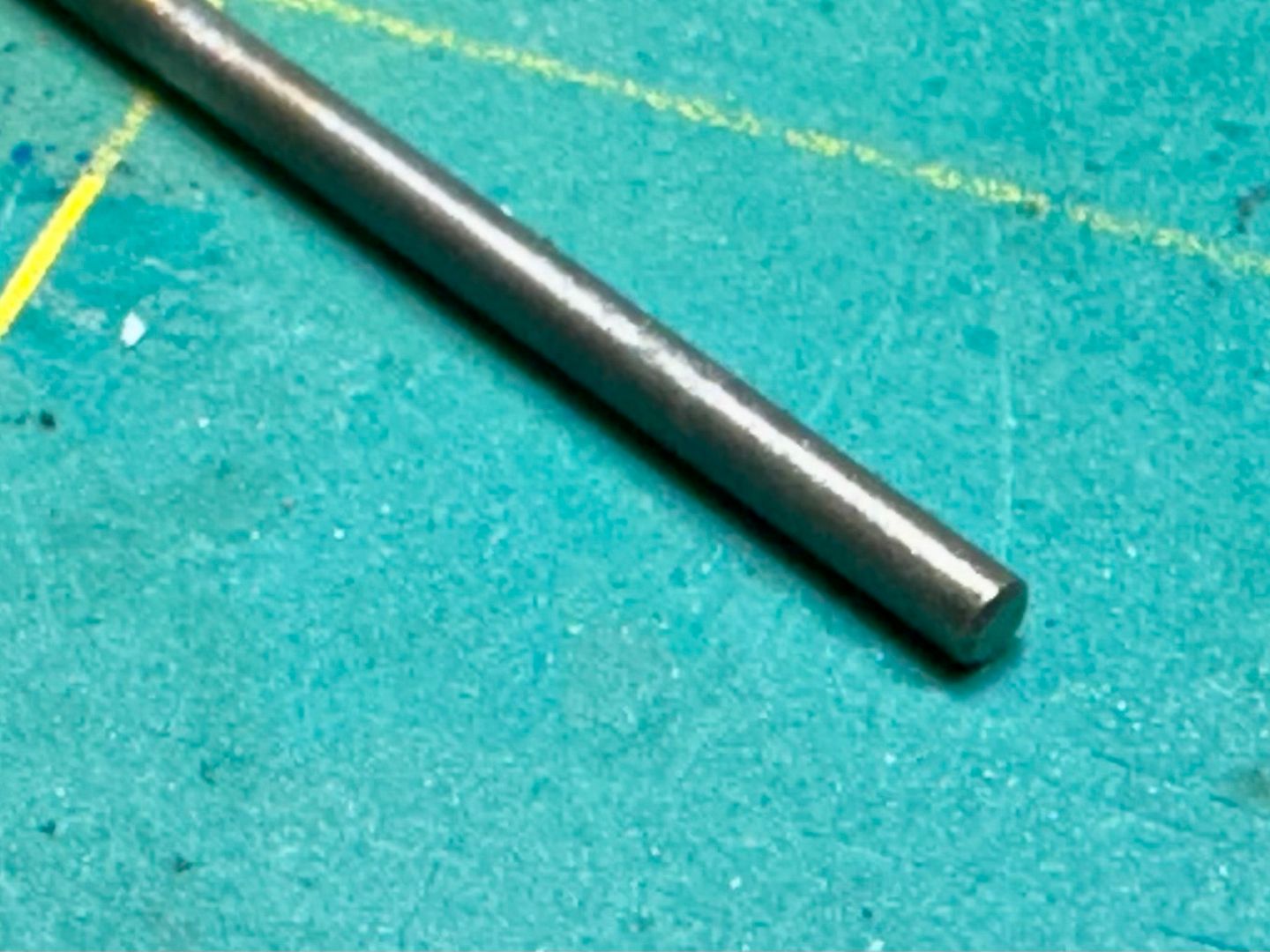

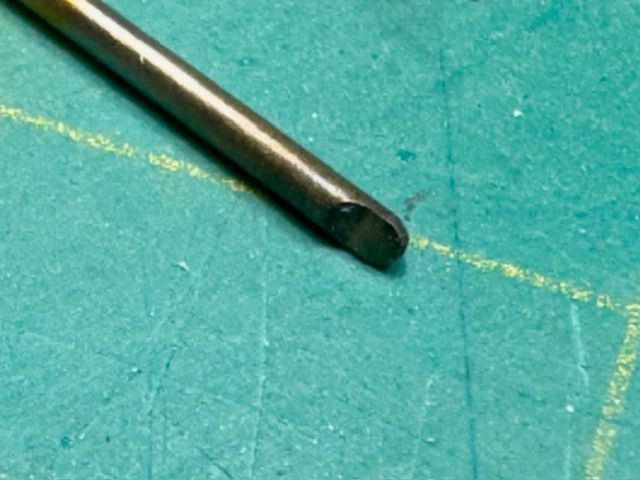

I did take a 1/16" drill bit and ground down the end to the shape I needed.



I heated it up and tried it out but I can do a few but not 50 consistantly.



I will get some "Archer Transfers" louvers and be wrong but be done.

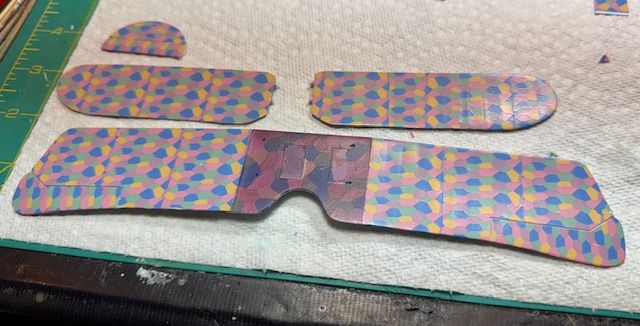

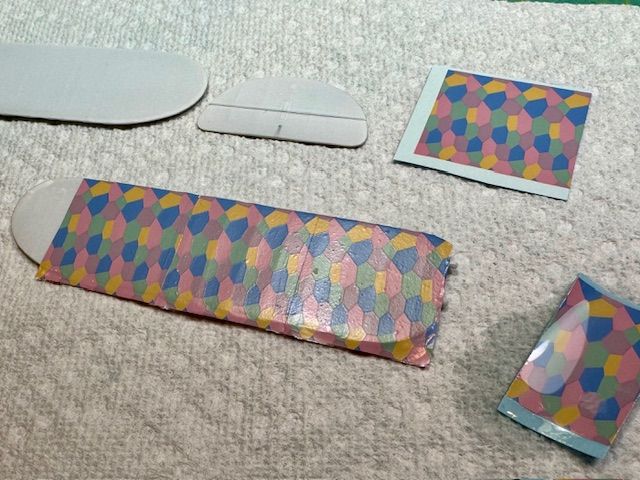

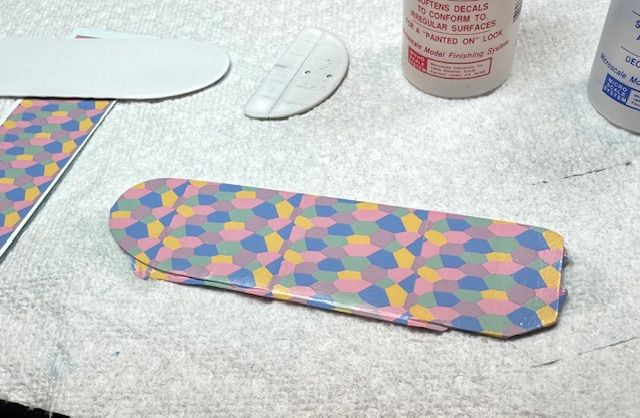

The only ever experience with lozenge I've had was the Fokker D.VIII I did a couple of months ago. I started on the lower wing and wondered why it looked funny.



Duh..... I fixed it and moved on.

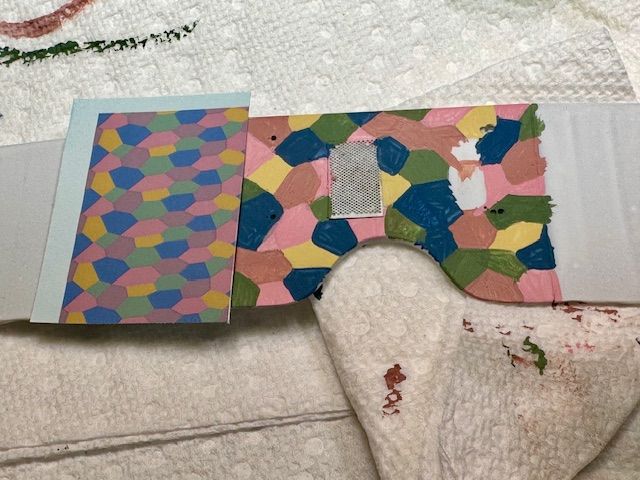

I hand painted the center section. On the real aircraft, this section photographs very dark so I overlaid some violet. But it may be the same Prussian blue on top for all I know.

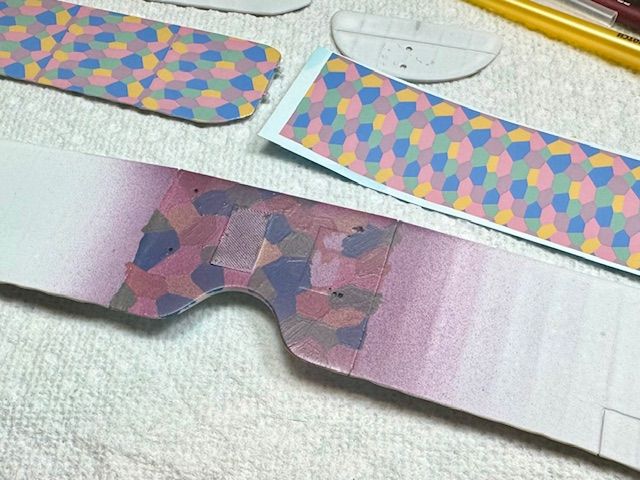

And this where we are tonight.



I may go back and redo the field repaired part of the lower wing in 4 color lozenge as they might have done.
I'm going to mask and airbrush the top of the wing as I don't want brush marks.

And then......rib tapes....
Thanks,
Allan Buttrick

Youth, talent, hard work, and enthusiasm are no match for old age and treachery.

Offline NigelR

  • Hero Member
  • *****
  • Posts: 1930
Re: "Shelf Queen 2025 GB" Eduard 1/48 Hannover CL.IIIa....
« Reply #14 on: March 02, 2025, 07:26:44 PM »
Good progress, those louvres look like they will be troublesome. Best of luck with the Archer approach.
