Author Topic: Zeppelin Staaken R.VI (1/72) from Germany (Read 8765 times)

chowhound · « **on:** July 27, 2019, 05:48:53 AM »

Hello friends,
Today I start my construction report in a different way. I hope you agree.

cheers
Jürgen

RAGIII · « **Reply #1 on:** July 27, 2019, 05:58:11 AM »

I LOVE YOUR STYLE! Looking forward to the build

RAGIII

Alexis · « **Reply #2 on:** July 27, 2019, 01:40:38 PM »

COOL !

Juan · « **Reply #3 on:** July 27, 2019, 01:50:42 PM »

Too funny (and as Terri stated - Cool). Looking forward to seeing this giant (I saw one built up before and was very impressive).

lone modeller · « **Reply #4 on:** July 28, 2019, 07:54:05 AM »

I have built a fairly large model in this scale (Dornier Rs II flying boat) but I know that that would be dwarfed by the Staaken, so I am going to follow with great interest.

PS: C. Dornier was working for Count Zeppelin when he designed the flying boat, so our models also have a name in common as well as size!

Stephen.

chowhound · « **Reply #5 on:** August 01, 2019, 02:58:49 PM »

Quote

Dear participants of the construction report of the Zeppelin-Staaken,
As we have heard from several sites, there are comments on the manufacturer's Lozenge pattern. The main point of criticism is that the pattern can not be processed without offset due to its non-linear division on three sheets (especially since all sheets are identical) when the supplied stencils are used. Our solution proposal looks like this. Copy the templates and patterns on one Din A3 sheet (color or SW, possibly in a copy shop or similar, if no Din A3 printer / copier is available)
Now cut out the stencils and glue them onto the patterned lozenge pattern as shown in the following pictures.

If necessary, this newly created stencil can additionally be copied again. Now the decals can be cut halfway offset. This is especially recommended for the upper wings and heights / rudder. Due to the shape of the hull, unfortunately, it will not be 100% possible. Since the upper two-part wing is longer than the single Decal sheet, two sheets must be placed side by side so that the right sheet is rotated 180 degrees. The cut edge is then not quite as noticeable. The lower wings are not critical as they are separated by the hull.
Yours sincerely
Construction management Dallgow-Döberitz

RAGIII · « **Reply #6 on:** August 01, 2019, 08:47:11 PM »

excellent work by the factory on the layout for the lozenge. Looking forward to the next update!
RAGIII

chowhound · « **Reply #7 on:** September 20, 2019, 01:15:49 AM »

RAGIII · « **Reply #8 on:** September 20, 2019, 03:07:19 AM »

Nice to see your progress! excellent work adding the fuel lines!!
RAGIII

lone modeller · « **Reply #9 on:** September 20, 2019, 04:23:11 AM »

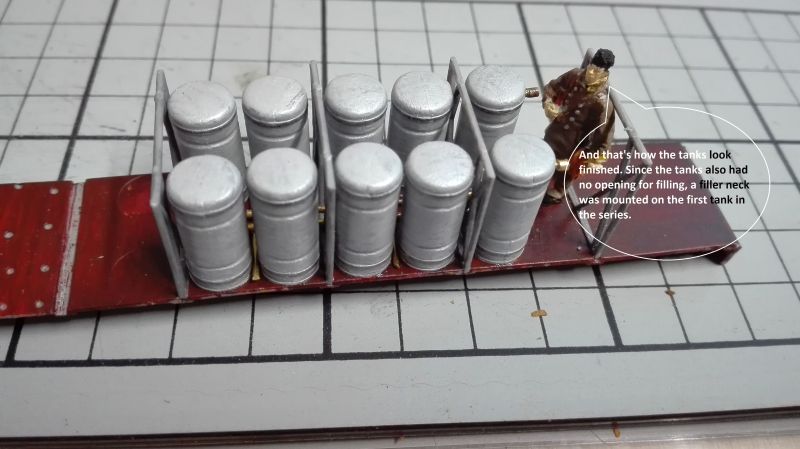

I do like your unique presentation! The fuel tank details are very interesting - nice additions.

Stephen.

chowhound · « **Reply #10 on:** September 20, 2019, 10:38:59 PM »

RAGIII · « **Reply #11 on:** September 23, 2019, 12:07:45 AM »

The ladders and seats look great!
RAGIII

chowhound · « **Reply #12 on:** September 24, 2019, 04:49:05 PM »

chowhound · « **Reply #13 on:** September 29, 2019, 01:46:02 AM »

chowhound · « **Reply #14 on:** September 30, 2019, 04:32:40 PM »

A brief information of the aircraft shipyard Dallgow-Döberitz!

On Friday we received a letter from Roden. Of course, we do not want to withhold the content from the participants in this construction report. (Hauptmann von Bombe was of course already taught)

We think we can live with that.

Kind regards
Construction management Aircraft shipyard Dallgow-Döberitz
