Author Topic: FE2b (Late) A5650 "Jess" 100 Sqn. 1:32 WNW  (Read 63823 times)

Offline Ernie

  • Hero Member
  • *****
  • Posts: 3961
  • "Once more into the breach"
Re: FE2b (Late) A5650 "Jess" 100 Sqn. 1:32 WNW
« Reply #210 on: April 10, 2016, 08:06:25 AM »
Jess is looking better all the time, Lance!  Your weathering is awesome and looking
at it on it's feet, it really shows off the amazing job you have done, my friend!

Cheers,
Ernie :)
The new old guy, take two...

Offline lcarroll

  • Administrator
  • Hero Member
  • ******
  • Posts: 8659
Re: FE2b (Late) A5650 "Jess" 100 Sqn. 1:32 WNW
« Reply #211 on: April 10, 2016, 10:31:52 PM »
Thanks Ernie, your positive comments are much appreciated. :)
Cheers,
Lance

Online uncletony

  • Hero Member
  • *****
  • Posts: 4387
    • Aircraft In Pixels
Re: FE2b (Late) A5650 "Jess" 100 Sqn. 1:32 WNW
« Reply #212 on: April 10, 2016, 10:53:24 PM »
Really like the chipping you achieved on the struts, Lance. Very convincing.

Offline lcarroll

  • Administrator
  • Hero Member
  • ******
  • Posts: 8659
Re: FE2b (Late) A5650 "Jess" 100 Sqn. 1:32 WNW
« Reply #213 on: April 10, 2016, 11:48:57 PM »
Thanks Bo!
Cheers,
Lance

Offline radio

  • Hero Member
  • *****
  • Posts: 3952
Re: FE2b (Late) A5650 "Jess" 100 Sqn. 1:32 WNW
« Reply #214 on: April 11, 2016, 01:50:54 AM »
Love this great work Lance.
Cheers
Martin

Offline lcarroll

  • Administrator
  • Hero Member
  • ******
  • Posts: 8659
Re: FE2b (Late) A5650 "Jess" 100 Sqn. 1:32 WNW
« Reply #215 on: April 11, 2016, 02:33:10 AM »
    Thanks for looking Martin, and for your comment. :)
Cheers,
Lance

Online RAGIII

  • Hero Member
  • *****
  • Posts: 19694
Re: FE2b (Late) A5650 "Jess" 100 Sqn. 1:32 WNW
« Reply #216 on: April 11, 2016, 08:19:20 AM »
Very convincing chipping on the gear Lance! Outstanding rigging!!
RAGIII
« Last Edit: April 11, 2016, 08:46:03 AM by RAGIII »
"A man has to know his limitations": Harry Callahan

"Don't slop it on" Lynda Geisler

Offline Jeff T

  • Newbie
  • *
  • Posts: 24
Re: FE2b (Late) A5650 "Jess" 100 Sqn. 1:32 WNW
« Reply #217 on: April 11, 2016, 08:28:35 AM »
   Sorry Jeff, I'd forgotten our earlier exchange on control line routing. Are you going to open a Build Log on yours?
Cheers,
Lance

😄....no worries Lance!.... Yes mate, the cockpit is done on mine, bar the seat belts, as soon as they are painted, I will start a build thread.

Yours is looking absolutetly brilliant!!

Cheer's,
Jeff.

Offline lcarroll

  • Administrator
  • Hero Member
  • ******
  • Posts: 8659
Re: FE2b (Late) A5650 "Jess" 100 Sqn. 1:32 WNW
« Reply #218 on: April 11, 2016, 08:38:52 AM »
Rick,
   Thanks; I'm assuming you mean the landing "Gear". ;)

Jeff,
   Thanks for the endorsement; I'll look forward to seeing your Build Log.
Cheers,
Lance




Offline moustique

  • Full Member
  • ***
  • Posts: 242
Re: FE2b (Late) A5650 "Jess" 100 Sqn. 1:32 WNW
« Reply #219 on: April 12, 2016, 03:39:53 AM »
fantastic  job

Offline lcarroll

  • Administrator
  • Hero Member
  • ******
  • Posts: 8659
Re: FE2b (Late) A5650 "Jess" 100 Sqn. 1:32 WNW
« Reply #220 on: April 12, 2016, 05:13:32 AM »
Thanks Moustique, I much appreciate your comment.
Cheers,
Lance

Offline lcarroll

  • Administrator
  • Hero Member
  • ******
  • Posts: 8659
Re: FE2b (Late) A5650 "Jess" 100 Sqn. 1:32 WNW
« Reply #221 on: April 15, 2016, 02:53:05 AM »

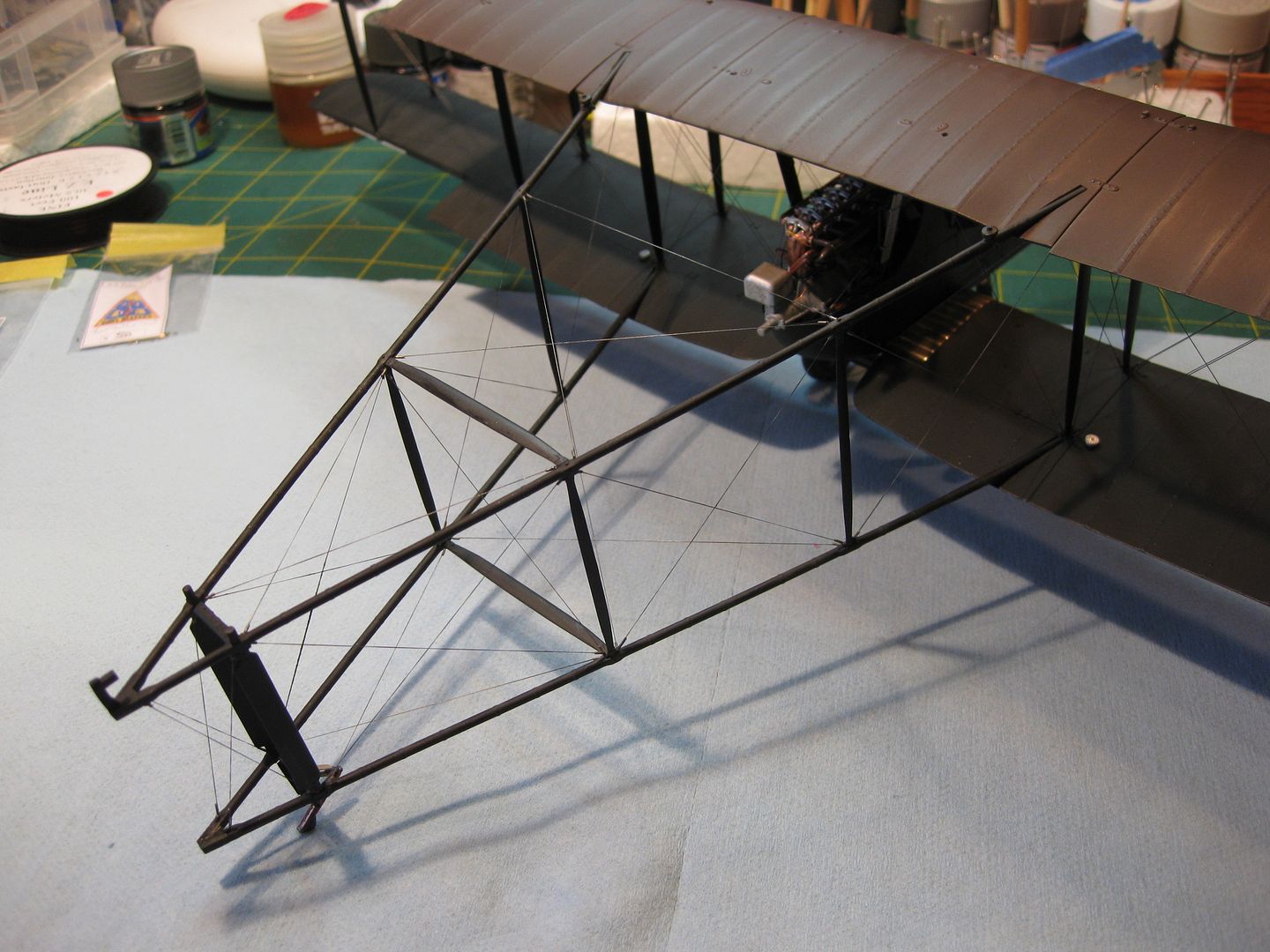

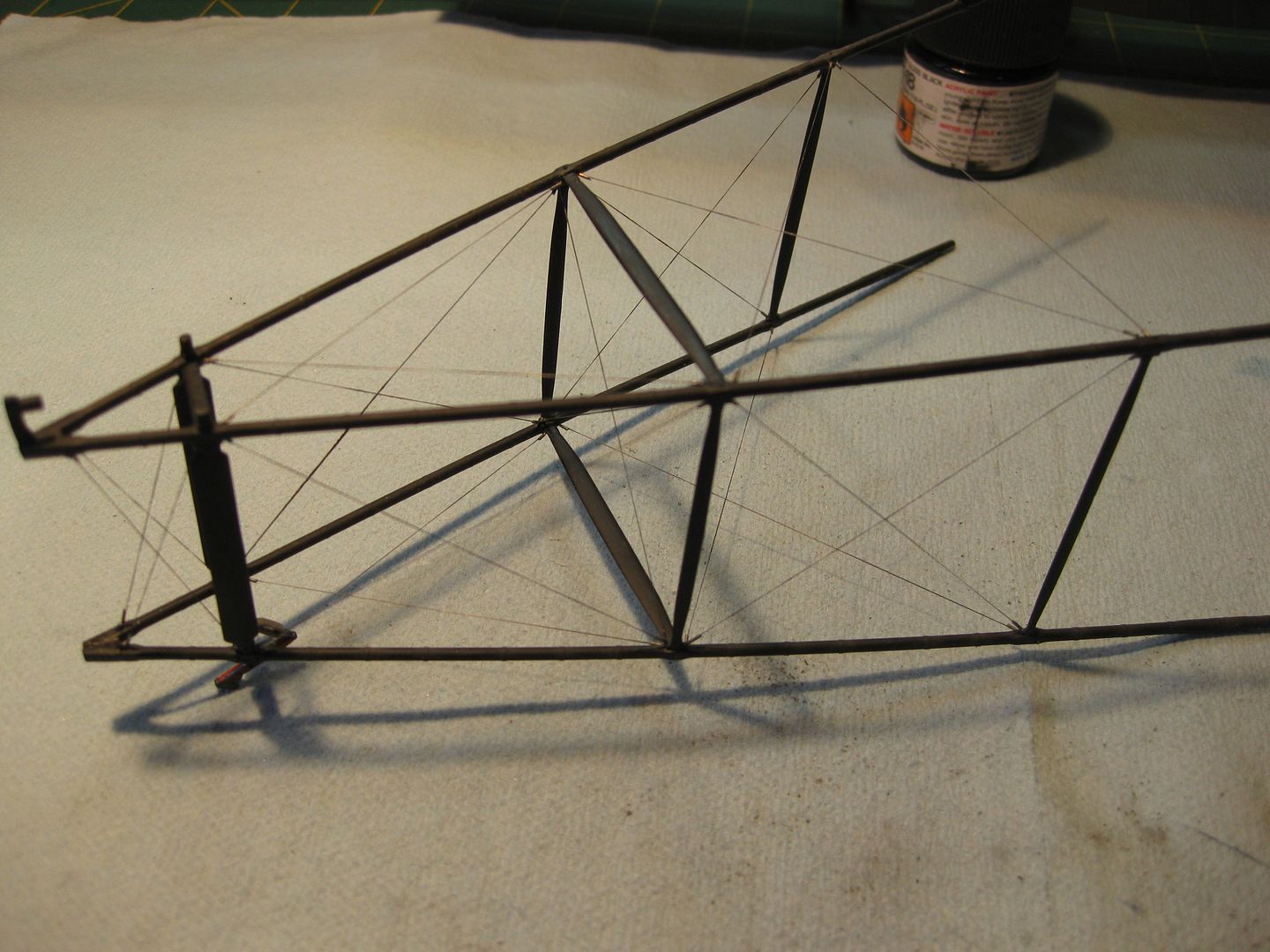

    I've completed the next step in this Build with the assembly and addition of the lattice tail assembly to the main components. The tail unit was pre-rigged with the exception of the forth or furthest forward bay.

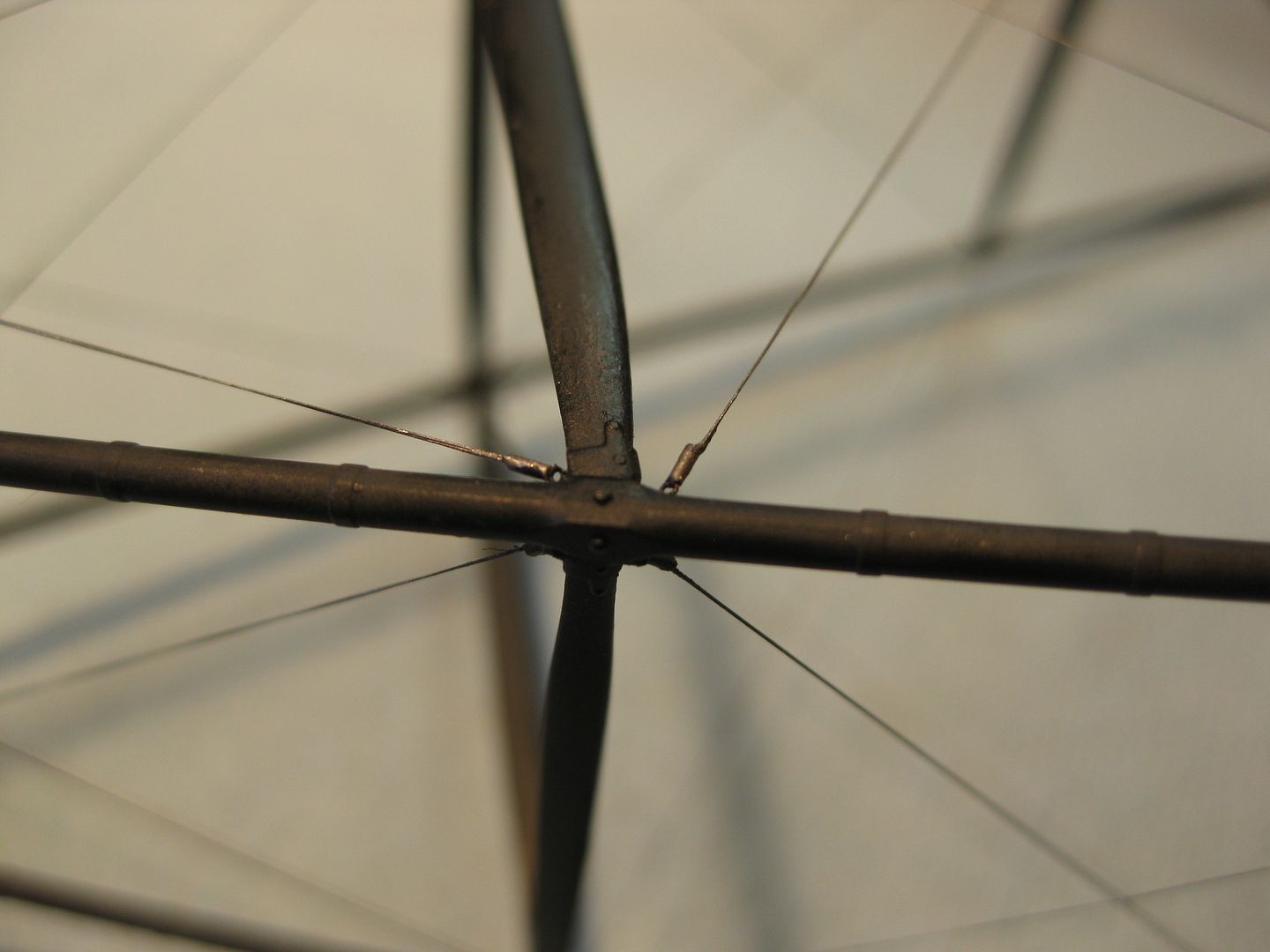

    I used Bob's Buckles and EZ Line to prevent warping of the flimsy lattice boom assembly from the tension on the rigging lines.

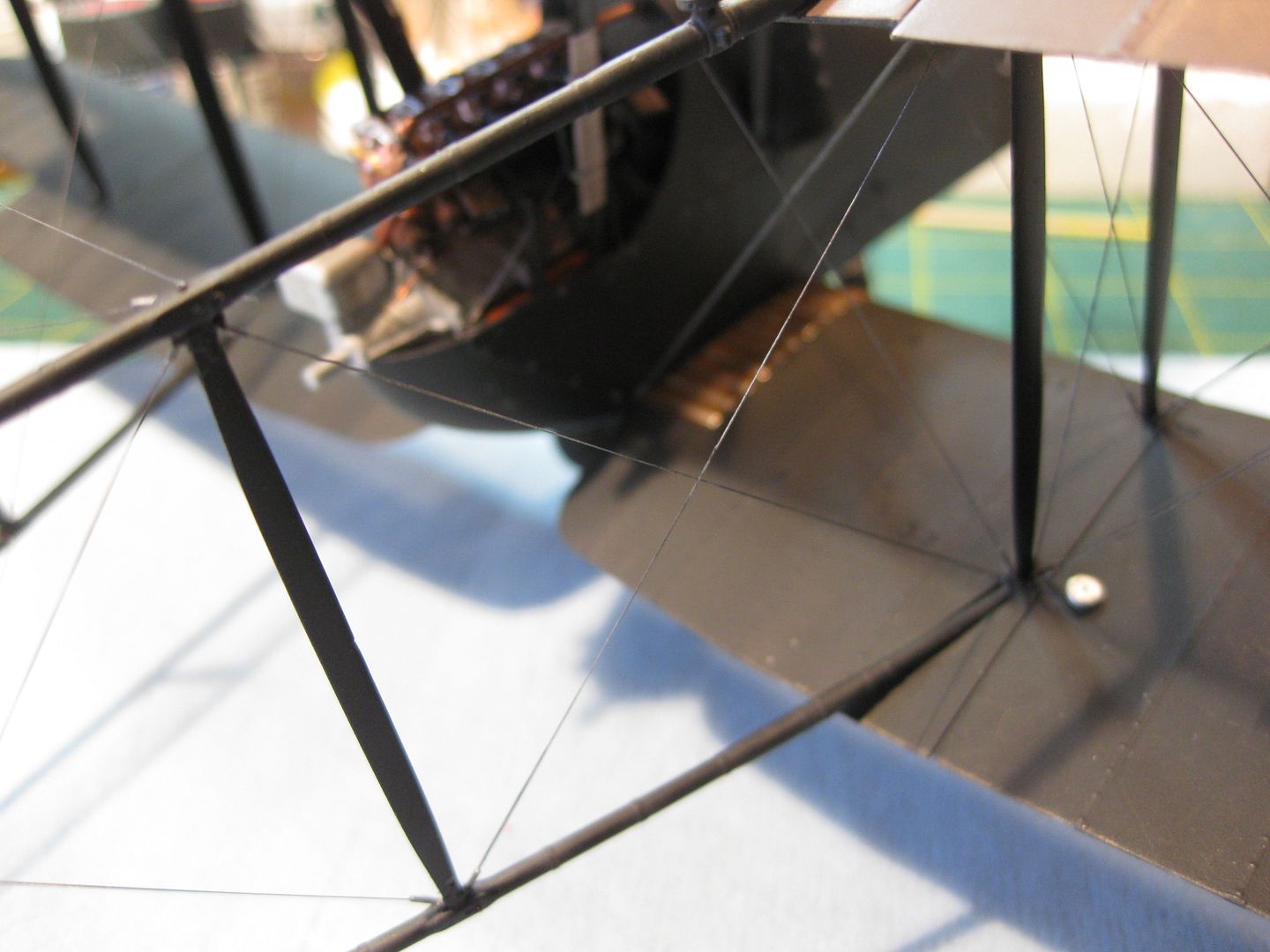

   Once the assembly was attached to the wings the forward bay cross bracing wires were added.

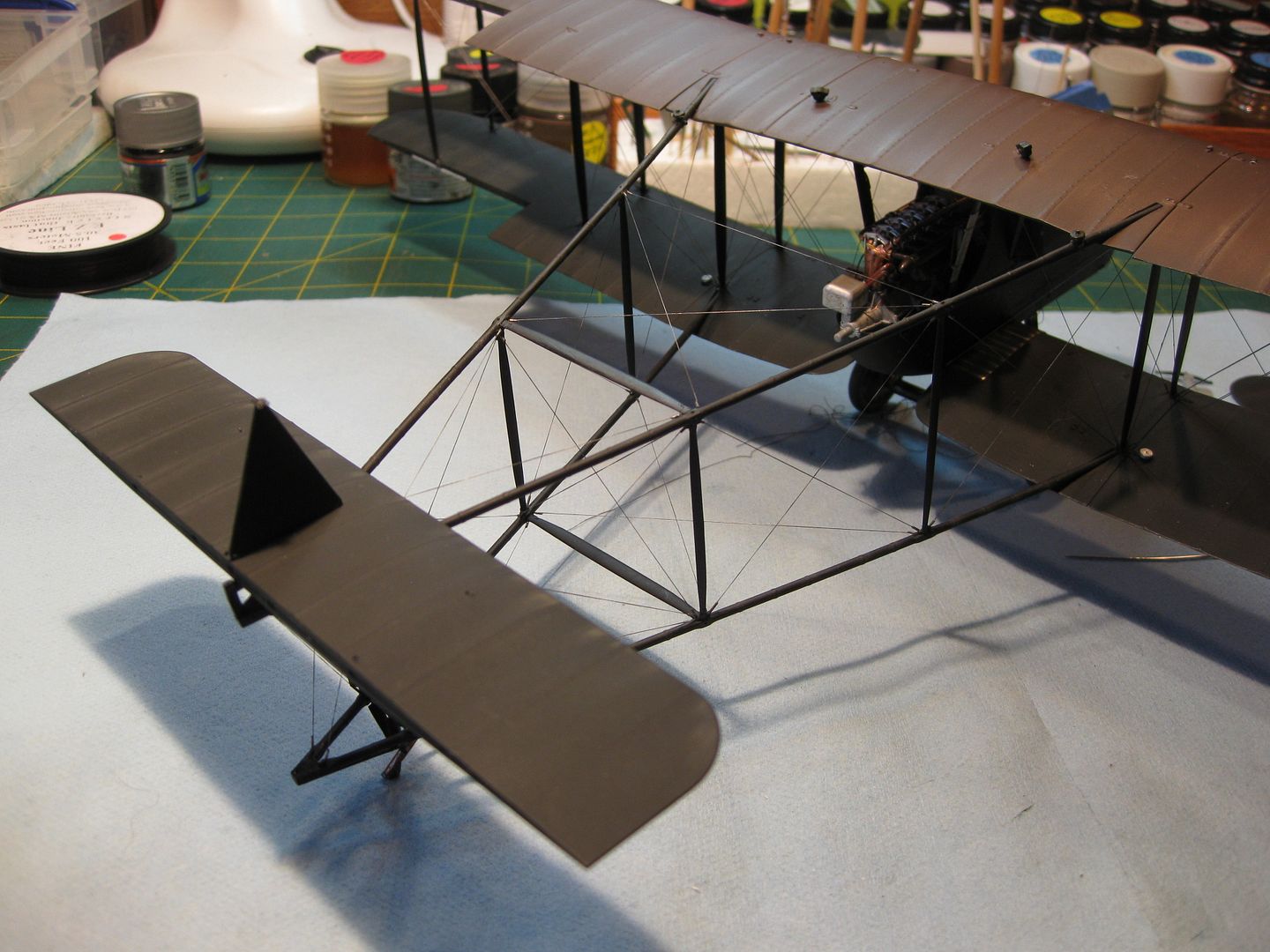

   The horizontal Stabilizer and small vertical stabilizer assembly was then glued to the frame with CA.

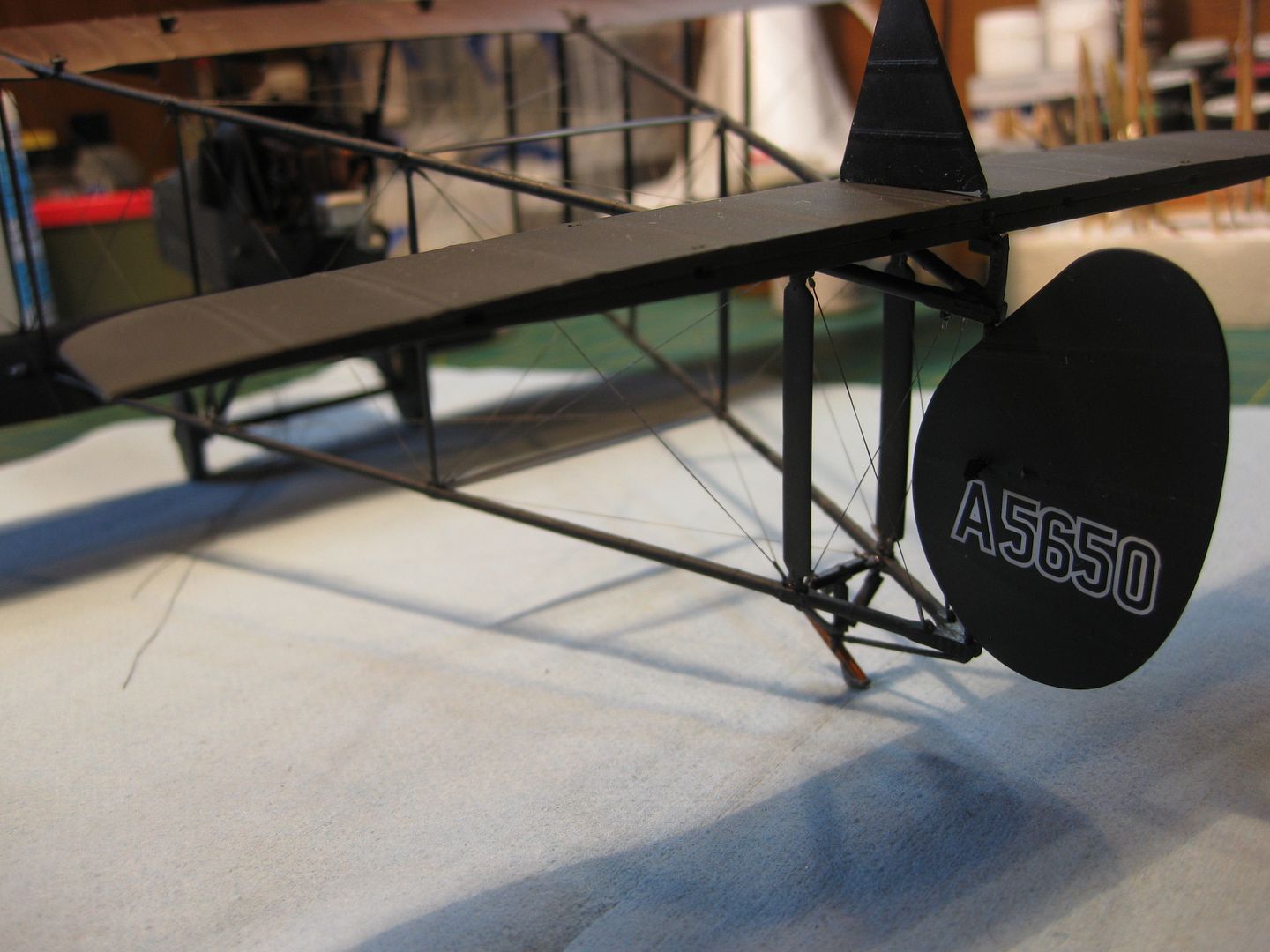

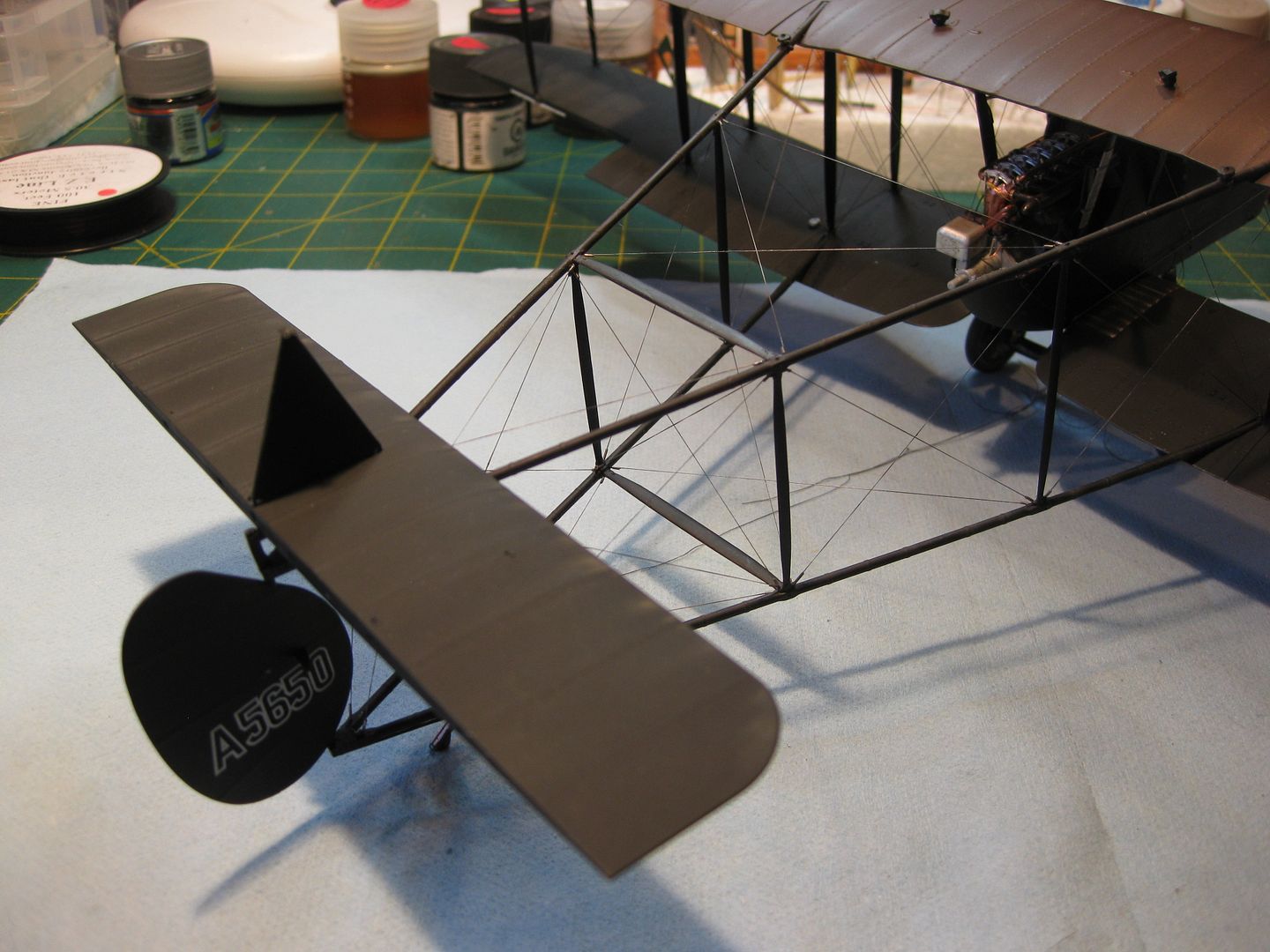

......and here she is with the rudder "posed", a big step completed.





     I've now started the Flight Control Rigging, a slow process as a lot of work has to be done to run lines through pulleys between the wings, a real test of digital dexterity! Parts of these "runs" will be done with Modelkasten elastic rigging however most will be EZ Line to reduce tension on the lattice booms.
     It's still progressing well however working with the delicate gear and tail assembly in place is already becoming a little scary!
Cheers,
Lance

Offline BigBlue

  • Hero Member
  • *****
  • Posts: 640
Re: FE2b (Late) A5650 "Jess" 100 Sqn. 1:32 WNW
« Reply #222 on: April 15, 2016, 03:18:00 AM »
That really looks terrific, Lance.  You must be very happy with your progress!

Out of curiosity, how does the elasticity of the Modelkasten differ from that of the EZ Line such that the former is more likely to warp the boom than the latter?  (I have some experience with EZ Line, but none with Modelkasten).

Chris

Offline lcarroll

  • Administrator
  • Hero Member
  • ******
  • Posts: 8659
Re: FE2b (Late) A5650 "Jess" 100 Sqn. 1:32 WNW
« Reply #223 on: April 15, 2016, 03:40:37 AM »
   Thanks for your comment Chris.
   Although Modelkasten is elastic it does not nearly approach the "stretch" qualities of EZ Line. EZ Line can be stretched easily 4 or 5 times its slack length with little or no strain induced, Modelkasten will only stretch 1/5 or less of it's length and is quite strong thus would easily create enough strain to even break delicate parts such as these tail booms. I like the Modelkasten Product because it will stretch enough to compensate for changes in line tension when, for example, you rig your landing gear and then stand the model on her wheels only to find the weight has induced a force and your line(s) have gone slack. With Modelkasten there's enough tension to absorb the change. It's also round, as opposed to flat like EZ Line.
Cheers,
Lance

Offline BigBlue

  • Hero Member
  • *****
  • Posts: 640
Re: FE2b (Late) A5650 "Jess" 100 Sqn. 1:32 WNW
« Reply #224 on: April 15, 2016, 03:53:45 AM »
Thanks, Lance; very helpful.
