Author Topic: 1/48 Caproni Ca 20 monoplane - scratchbuilt  (Read 2325 times)

Offline ermeio

  • Hero Member
  • *****
  • Posts: 913
1/48 Caproni Ca 20 monoplane - scratchbuilt
« on: August 25, 2015, 06:08:37 AM »

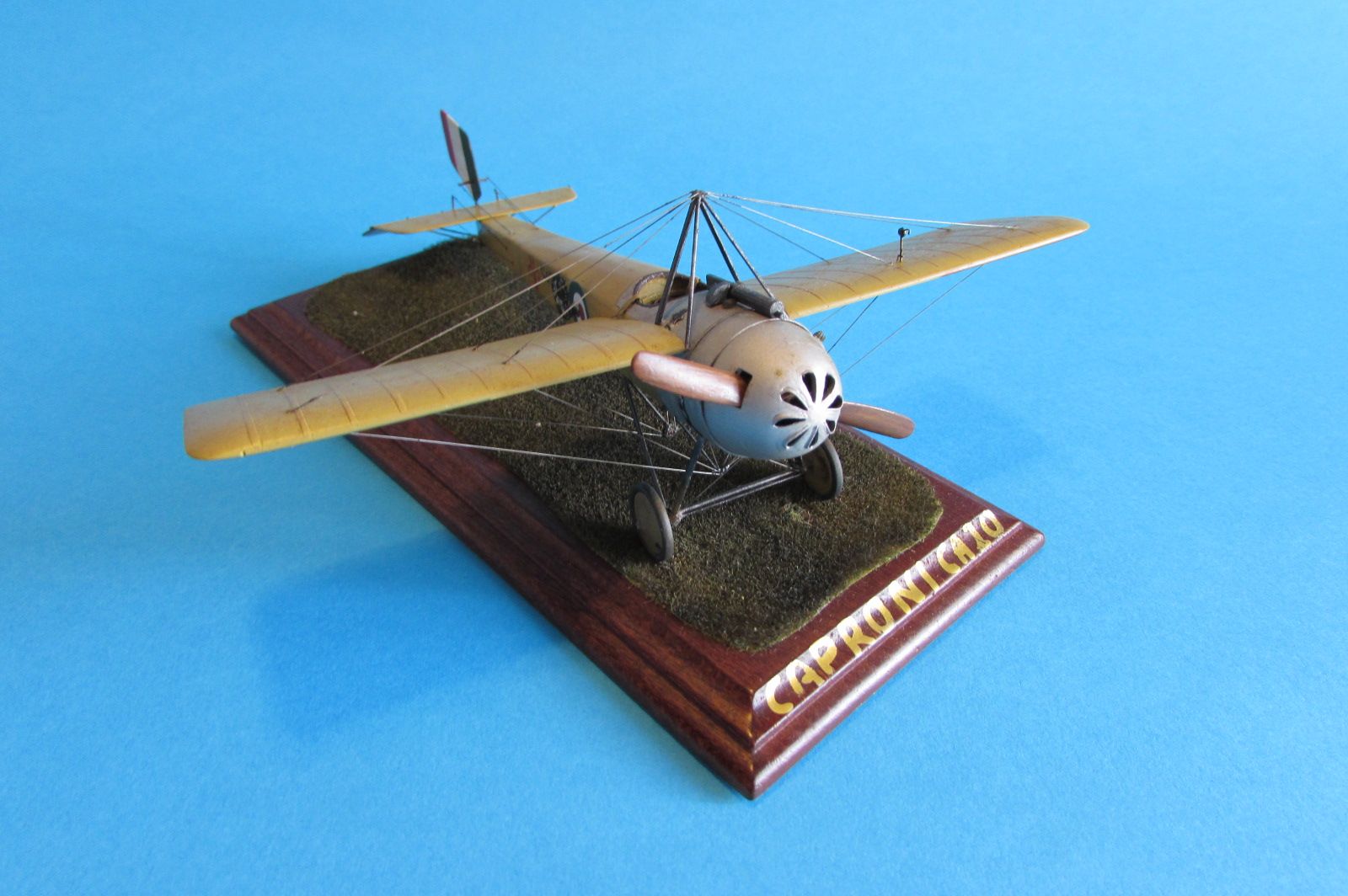

Here is another old scratch built model from my showcase
it dates back to April 1997 and it is the last WW1 models that I managed to complete before a long long hiatus

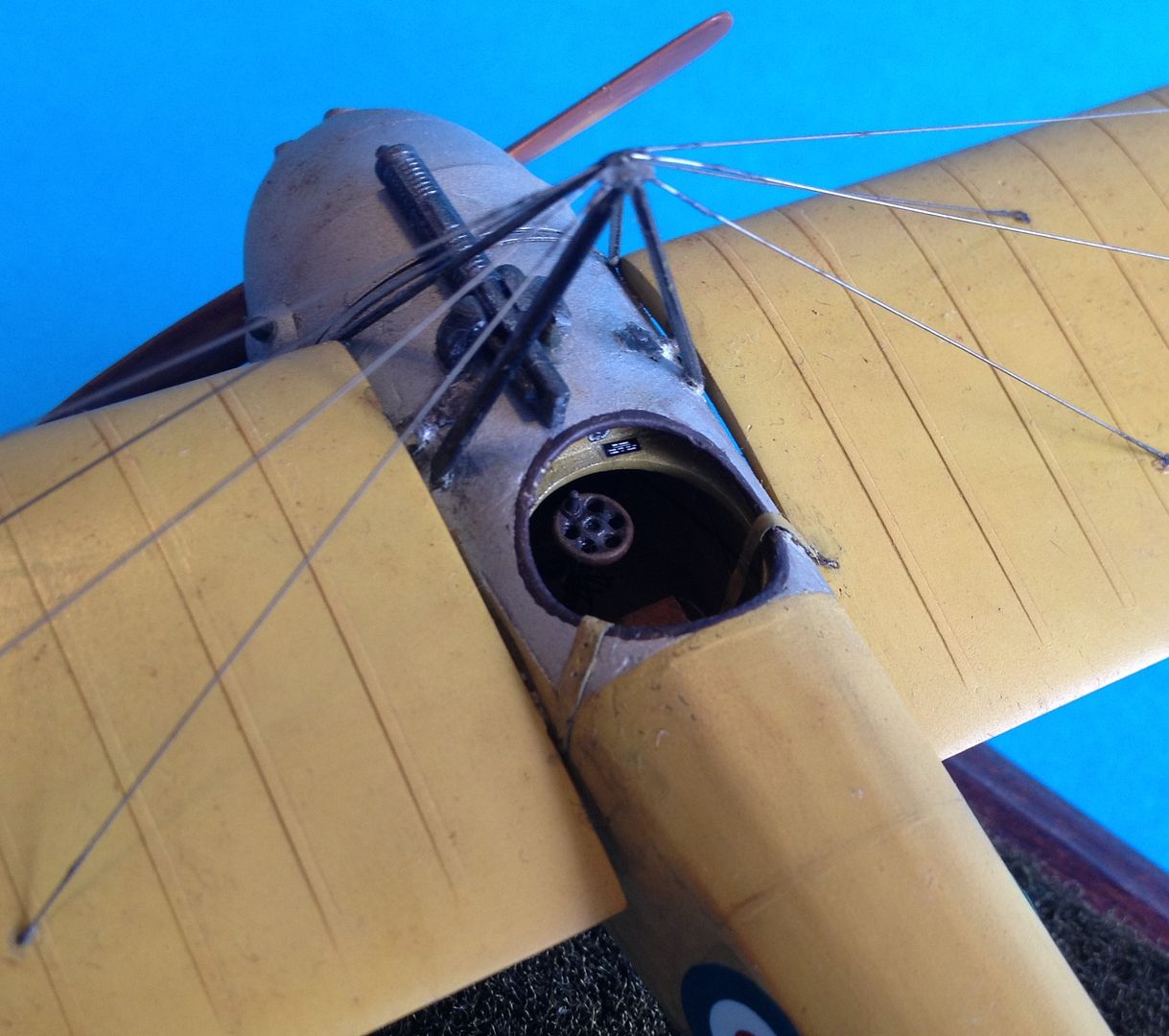

I started the fuselage as soon as I had in my hands the exceptional photo coverage and the 3-View drawing contained in Aerofan and later on borrowed from Windsocks. There was no SPIN resin model around, but the wings of an Eduard Fokker E III were a good basis - I modified the ribs and added a fuselage built from scratch (a box-like structure in plastic card, with some metal items like the louvres under the  nose.

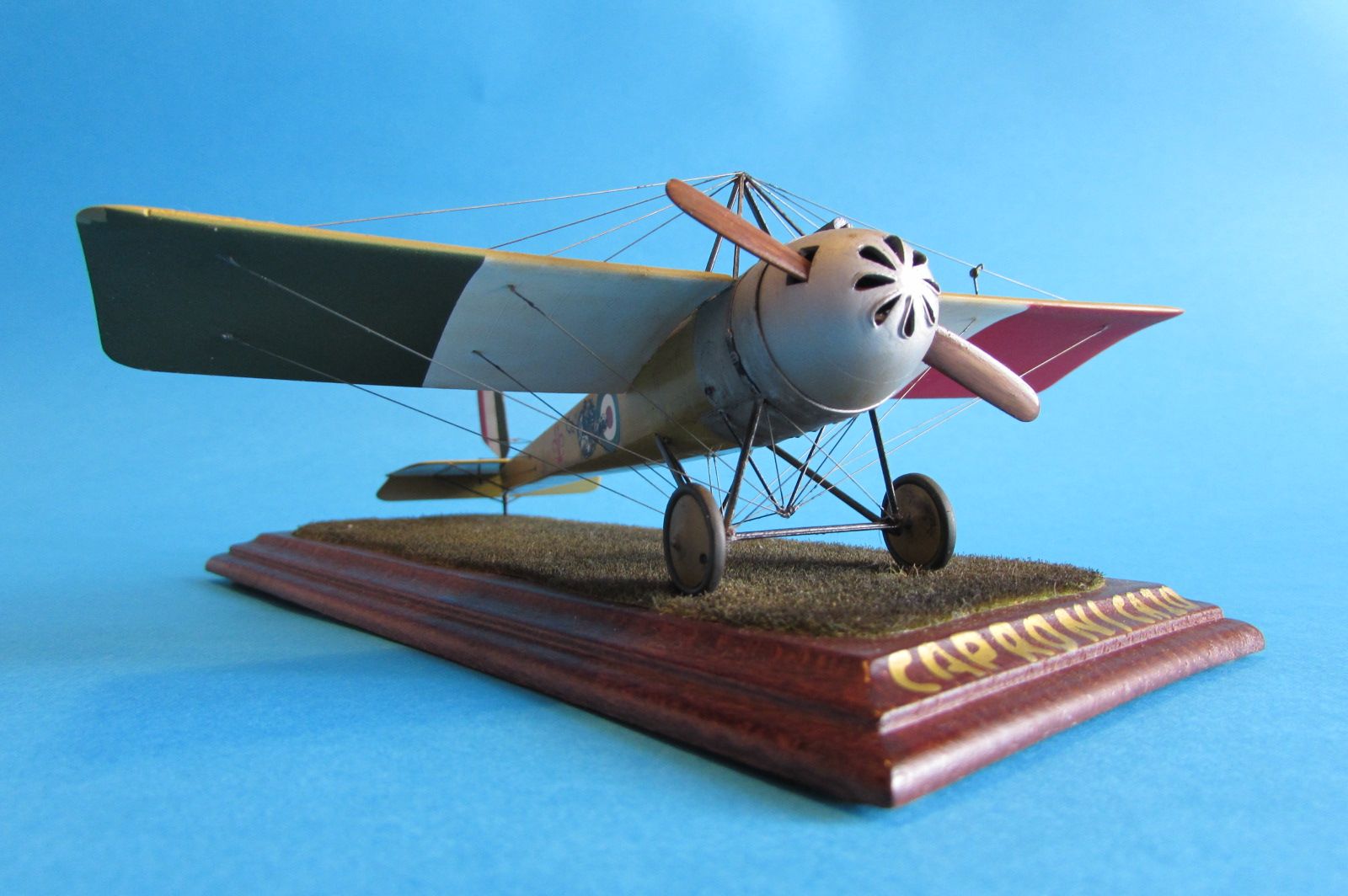

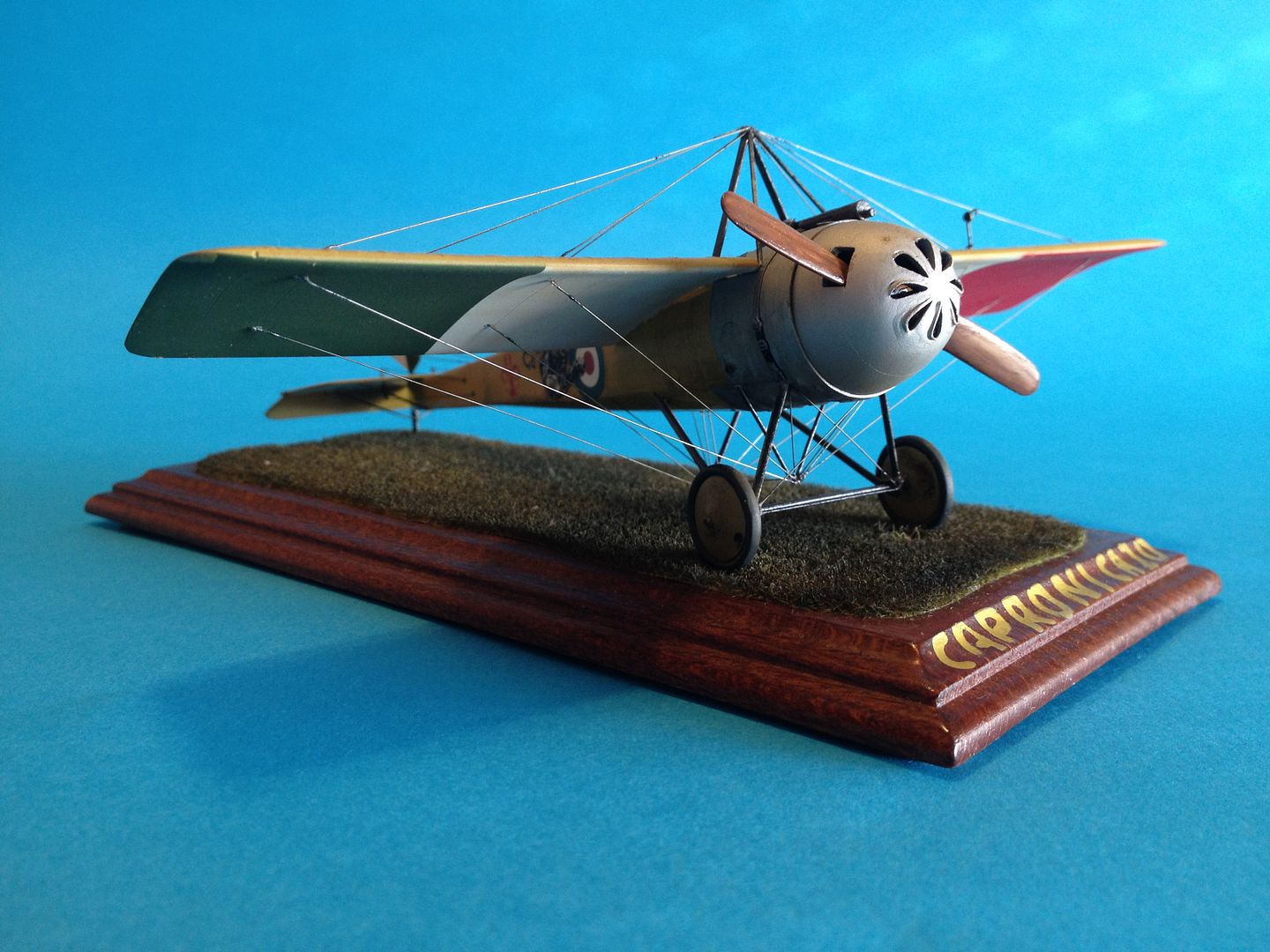

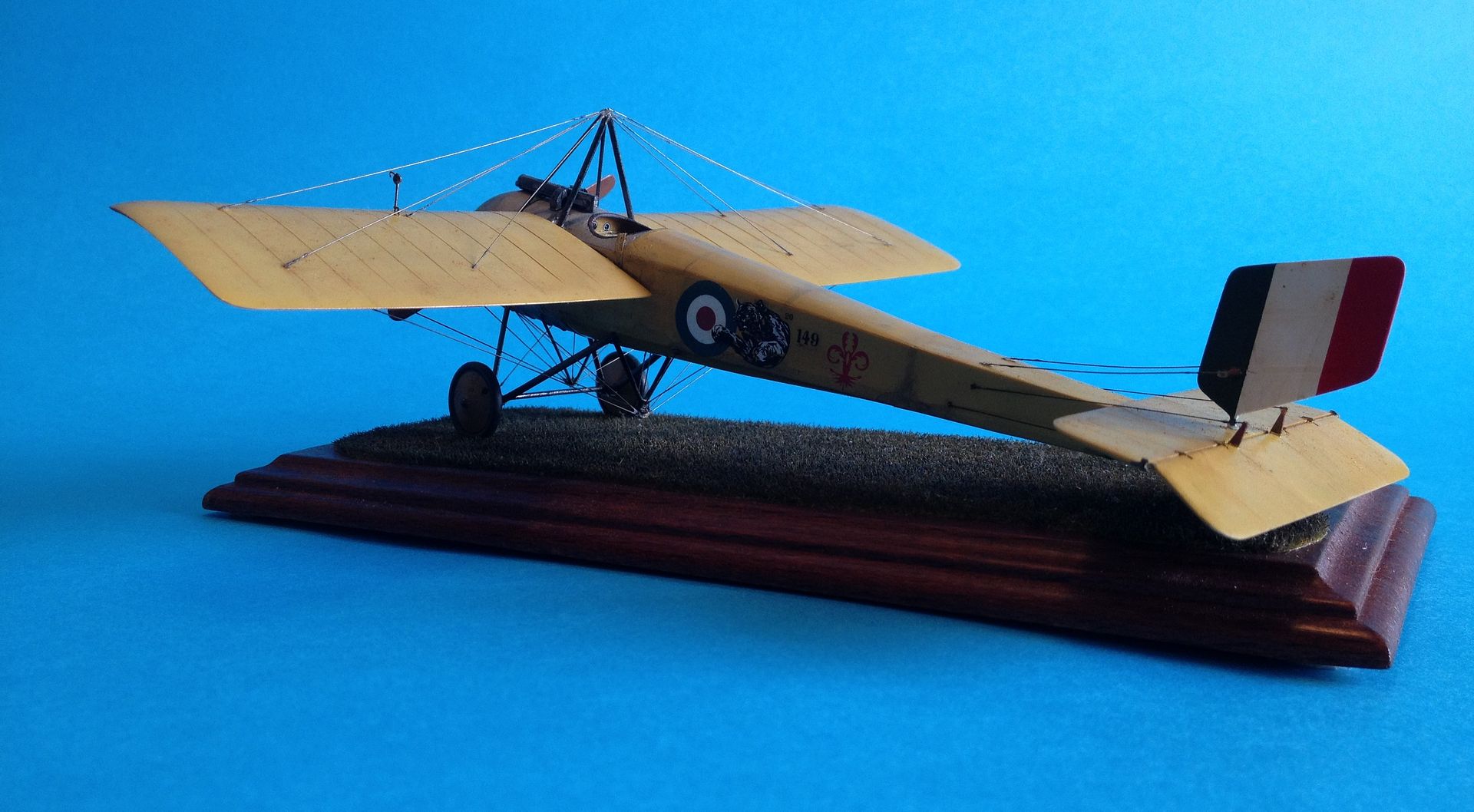

I completed the model in 1998; later on I applied some "what if" decals to the fuselage, since anyway I had modeled an armed version, which never went into production and probably the nose was yellow in the real one.
If you compare this model with the photos of the  real aircraft shared by Bo, you will notice that this one had no alierons.
The photos of the original aircraft show no alierons, therefore I think that the wings of the preserved aircraft are not the original ones - probably they are pieces of Ca 3 wings used to restore the old monoplane.
I have also a pair of SPIN resin models, an 1/72 Ca 20 almost complete and a fuselage in 1/32 preserved in some box - it may be that I will complete one in the next months. The 1/32 one, likely before sir Peters issues one.

















Thanks for your attention and forgive the dusty appearance...
« Last Edit: August 25, 2015, 06:15:45 AM by ermeio »

Offline Epeeman

  • Hero Member
  • *****
  • Posts: 1419
Re: 1/48 Caproni Ca 20 monoplane - scratchbuilt
« Reply #1 on: August 25, 2015, 07:44:36 AM »
Hello, Ermieo  -

Just looking in on your wonderful scratch built models - all are great but this is my favourite.

Regards

Dave
As we say in fencing, what's the point?

Online PrzemoL

  • Hero Member
  • *****
  • Posts: 4881
  • There was Eru... and he made first the Ainur...
    • Przemysław Litewka
Re: 1/48 Caproni Ca 20 monoplane - scratchbuilt
« Reply #2 on: August 25, 2015, 08:07:01 AM »
Beautiful. And scratch-built. Hats off!
Ash nazg durbatuluk, ash nazg gimbatul,
Ash nazg thrakatuluk, agh burzum-ishi krimpatul.

Offline coyotemagic

  • Hero Member
  • *****
  • Posts: 7710
  • "Here's to not buggering it up." -Winston Chuchill
    • My Models
Re: 1/48 Caproni Ca 20 monoplane - scratchbuilt
« Reply #3 on: August 25, 2015, 08:23:02 AM »
Simply stunning, Ermieo!  I love the "what if" scheme.
Cheers,
Bud
"All men dream: but not equally. Those who dream in the dark recesses of the night awake in the day to find all was vanity. But the dreamers of day are dangerous men, for they may act their dreams with open eyes, and make it possible." -T. E. Lawrence

Offline GAJouette

  • Hero Member
  • *****
  • Posts: 3579
  • " Beware of the Spanish Inquisition"
Re: 1/48 Caproni Ca 20 monoplane - scratchbuilt
« Reply #4 on: August 25, 2015, 08:24:57 AM »
 Ermeio,
Bravo my old friend. Fantastic project and Well Done .
Highest Regards,
Gregory Jouette
" What Me Worry"

Offline uncletony

  • Hero Member
  • *****
  • Posts: 4349
    • Aircraft In Pixels
Re: 1/48 Caproni Ca 20 monoplane - scratchbuilt
« Reply #5 on: August 25, 2015, 08:25:49 AM »
Really awesome model of a very interesting aircraft. Thanks for sharing!

Offline Ernie

  • Hero Member
  • *****
  • Posts: 3961
  • "Once more into the breach"
Re: 1/48 Caproni Ca 20 monoplane - scratchbuilt
« Reply #6 on: August 25, 2015, 09:27:20 PM »
Beautiful work, Ermieo!

Cheers,
Ernie :)
The new old guy, take two...

Offline lone modeller

  • Hero Member
  • *****
  • Posts: 5316
Re: 1/48 Caproni Ca 20 monoplane - scratchbuilt
« Reply #7 on: August 26, 2015, 04:25:30 AM »
Never mind the dust, that is a simply beautiful model. You have hosted some very interesting types that I have never heard of - they are fascinating to say the least. It also shows how Italian engineers were coming up with similar solutions to problems at the same time as their other European counterparts. Thanks for putting these on the site - a chance to learn something new is always most welcome. And when it is via models of this standard it becomes a real pleasure.

Offline pietro

  • Full Member
  • ***
  • Posts: 204
  • What?! Are you kidding?!
Re: 1/48 Caproni Ca 20 monoplane - scratchbuilt
« Reply #8 on: August 26, 2015, 04:44:04 AM »
Ermieo, THAT is beautiful!
Pietro

Offline ermeio

  • Hero Member
  • *****
  • Posts: 913
Re: 1/48 Caproni Ca 20 monoplane - scratchbuilt
« Reply #9 on: August 26, 2015, 06:15:50 AM »
Thank you for your kind comments, Dave, PrzemoL, Bud, Gregory, Bo, Ernie, LM and Pietro.
This is one of the models that I brought with me in  my last move, so it must be one of my favorites, too :-)

Offline Des

  • Administrator
  • Hero Member
  • ******
  • Posts: 9325
    • ww1aircraftmodels.com
Re: 1/48 Caproni Ca 20 monoplane - scratchbuilt
« Reply #10 on: August 26, 2015, 08:37:43 AM »
It may be an oldie but it's a goodie Ermeio, you did a great job scratch building this model, it is quite a nice looking aeroplane.

Des.
Late Founder of ww1aircraftmodels.com and forum.ww1aircraftmodels.com

Offline RAGIII

  • Hero Member
  • *****
  • Posts: 18833
Re: 1/48 Caproni Ca 20 monoplane - scratchbuilt
« Reply #11 on: August 26, 2015, 08:48:16 AM »
A beautiful scratch built model of a lesser known subject!
