Author Topic: Udet Triplane Tri-Build, Eduard 1/48  (Read 16134 times)

Offline radio

  • Hero Member
  • *****
  • Posts: 3952
Re: Udet Triplane Tri-Build, Eduard 1/48
« Reply #165 on: March 01, 2016, 09:44:11 AM »
Exellent models Drew.
Cheers
Martin

Offline dtomko

  • Hero Member
  • *****
  • Posts: 527
Re: Udet Triplane Tri-Build, Eduard 1/48
« Reply #166 on: March 01, 2016, 10:41:34 PM »
Thank you, Martin!

Drew

Offline dtomko

  • Hero Member
  • *****
  • Posts: 527
Re: Udet Triplane Tri-Build, Eduard 1/48
« Reply #167 on: March 16, 2016, 11:43:17 AM »

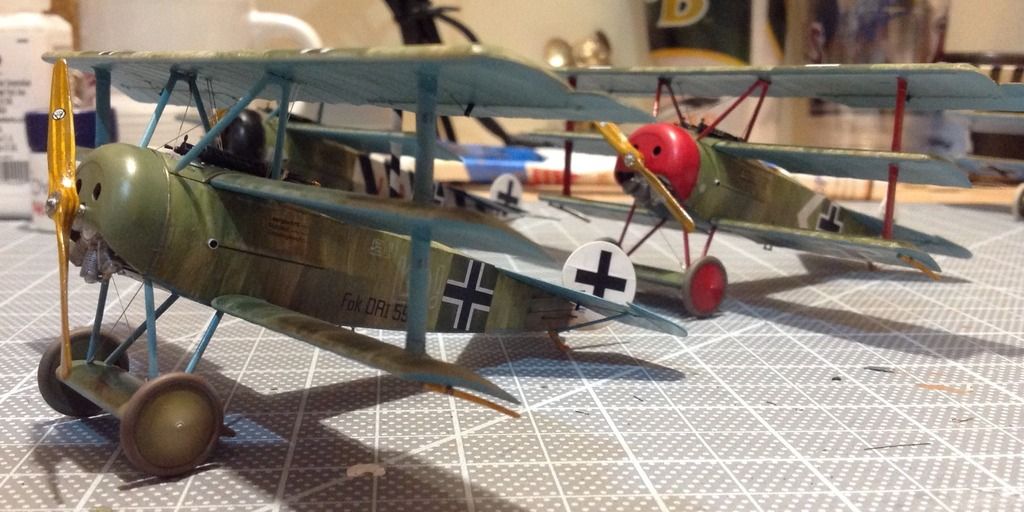

And it's a wrap!  Finally finished.  These are beautiful little models but more work than I reckoned.  I probably still needed to take another couple mm off the landing gear struts, but close enough.  I'll get more shots in the next couple of days and post in the completed models section.  Thanks for all the support and kind words!

Drew


Offline lcarroll

  • Administrator
  • Hero Member
  • ******
  • Posts: 8658
Re: Udet Triplane Tri-Build, Eduard 1/48
« Reply #168 on: March 16, 2016, 11:51:33 AM »
   Great looking gaggle of Fokkers, Drew. I'll keep an eye on Completed Models, looking forward to seeing these beauties in detail. Been a real pleasure watching this project right from the beginning!
Cheers,
Lance

Offline Radarman

  • Hero Member
  • *****
  • Posts: 718
Re: Udet Triplane Tri-Build, Eduard 1/48
« Reply #169 on: March 16, 2016, 02:54:04 PM »
Great little gaggle! I learned a bit watching this build.

          Thanks for posting,
                              Kevin
We are all victims of history!

Offline Des

  • Administrator
  • Hero Member
  • ******
  • Posts: 9325
    • ww1aircraftmodels.com
Re: Udet Triplane Tri-Build, Eduard 1/48
« Reply #170 on: March 16, 2016, 03:43:03 PM »
A gorgeous looking trio of Fokkers Drew, well done.

Des.
Late Founder of ww1aircraftmodels.com and forum.ww1aircraftmodels.com

Offline RAGIII

  • Hero Member
  • *****
  • Posts: 19691
Re: Udet Triplane Tri-Build, Eduard 1/48
« Reply #171 on: March 16, 2016, 07:47:47 PM »
Absolutely gorgeous DR1s Drew! I have really enjoyed following along!
RAGIII
"A man has to know his limitations": Harry Callahan

"Don't slop it on" Lynda Geisler

Offline dtomko

  • Hero Member
  • *****
  • Posts: 527
Re: Udet Triplane Tri-Build, Eduard 1/48
« Reply #172 on: March 16, 2016, 10:20:53 PM »
Thanks, Lance, Kevin, Des, and Rick!
Just a few final notes:  I like the look of the photoetch cowling hold-down wire, but it was tough to glue it on after painting without getting CA blobs on the cowling.  First, I taped the piece around a pen overnight to get it in shape, and then applied CA with a piece of wire.  If I had to do it again, I would add the photoetch piece to the cowl with it extending slightly past the rear edge, then paint it and install so it covers the seam with the fuselage.  After painting, I used a sanding stick to expose the metal wire.  Looks great.

The plastic foot step and lift grab handles have mismatched seams and look too thick.  I scraped the footsteps and used them, but they are prone to breaking and still look too thick.  I replaced the grab handles with wire, but that was difficult to keep in place and I wound up with CA blobs on the underside.

Rigging on the landing gear is EZ Line with Bob's Buckles.  I used the thicker line and separated it by pulling it apart so the strands are round, not the flat profile.  Control wires are invisible sewing thread darkened with a Sharpie.  And after the photo I added the wing stacking pads with drops of fabric glue painted dark grey.

Drew

Offline Isitwindyyet

  • Jr. Member
  • **
  • Posts: 68
Re: Udet Triplane Tri-Build, Eduard 1/48
« Reply #173 on: March 17, 2016, 12:06:59 AM »
They look nice.

Offline moustique

  • Full Member
  • ***
  • Posts: 242
Re: Udet Triplane Tri-Build, Eduard 1/48
« Reply #174 on: March 18, 2016, 04:14:00 AM »
beautiful triplane
very great job

Offline radio

  • Hero Member
  • *****
  • Posts: 3952
Re: Udet Triplane Tri-Build, Eduard 1/48
« Reply #175 on: March 18, 2016, 11:14:01 AM »
You have very great birds build, Drew.
Cheers
Martin

Offline dtomko

  • Hero Member
  • *****
  • Posts: 527
Re: Udet Triplane Tri-Build, Eduard 1/48
« Reply #176 on: March 24, 2016, 10:22:52 PM »
Thank you all very much!

Drew
