Author Topic: Jeannin Taube - 1:32 scale  (Read 44666 times)

Offline Des

  • Administrator
  • Hero Member
  • ******
  • Posts: 9325
    • ww1aircraftmodels.com
Jeannin Taube - 1:32 scale
« on: August 08, 2012, 08:15:23 AM »

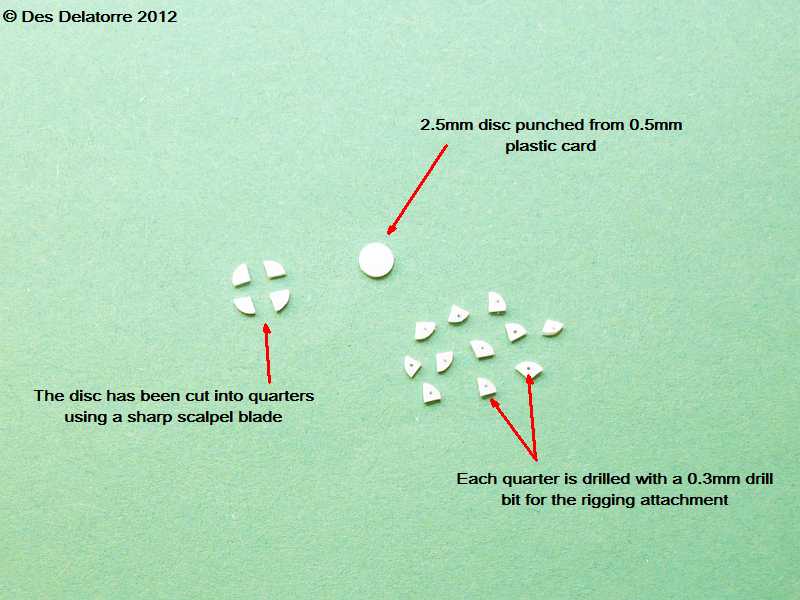

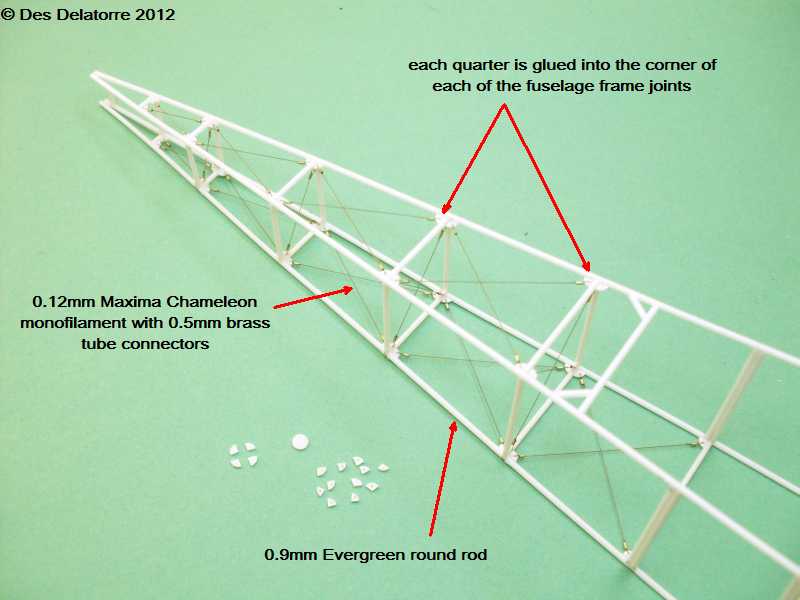

This will be my second scratch build, this time the Jeannin Taube in 1:32 scale. I have started by building the entire fuselage frame, I used 0.9mm Evergreen round stock to simulate the tubing used in the real aircraft. To attach the rigging I needed to make small gussets which were fitted to the frame, a 0.3mm hole provides the attachment point for the rigging. I rigged the frame using 0.12mm Maxima Chameleon mono, once it was fitted I painted it with Mr Metal Color Stainless then buffed it lightly.

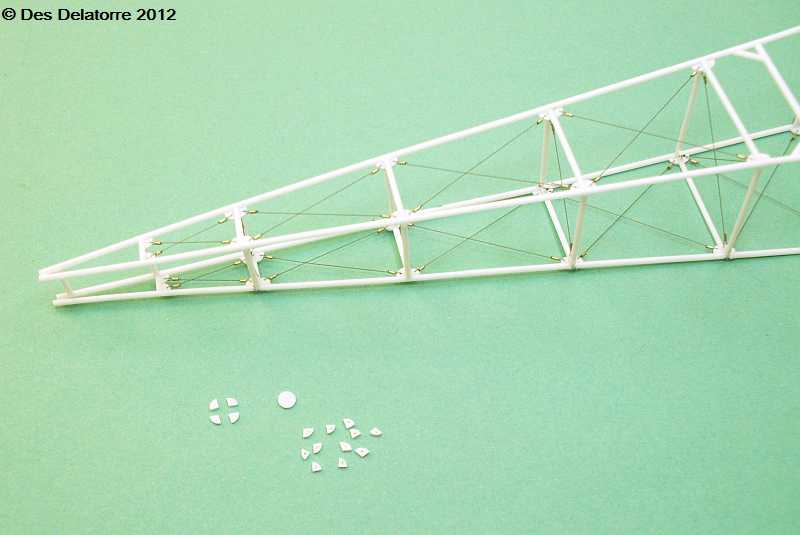

I have used a green backing for these three photos to allow the white to stand out against the background.

Des.





« Last Edit: August 08, 2012, 08:23:22 AM by Des »
Late Founder of ww1aircraftmodels.com and forum.ww1aircraftmodels.com

Offline Des

  • Administrator
  • Hero Member
  • ******
  • Posts: 9325
    • ww1aircraftmodels.com
Re: Jeannin Taube - 1:32 scale
« Reply #1 on: August 08, 2012, 08:20:19 AM »

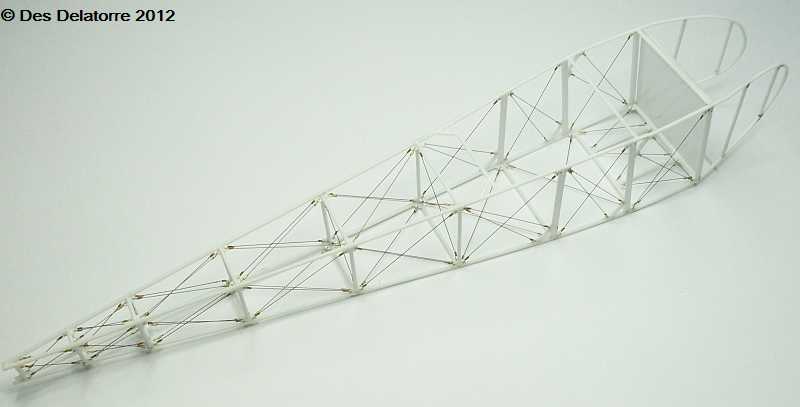

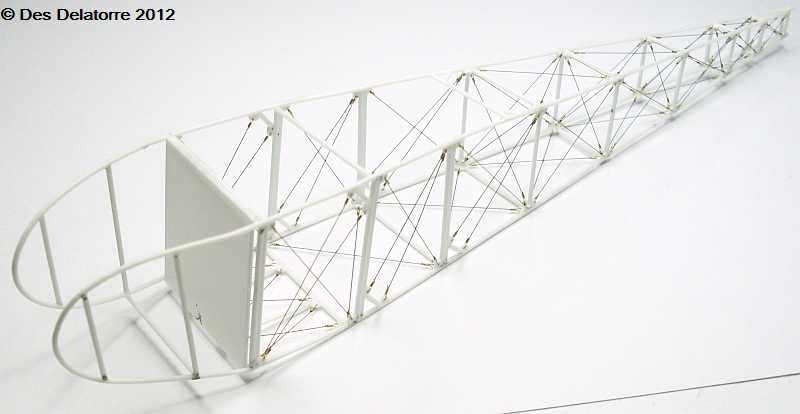

These photos show the fuselage frame rigging just about done, still need to do a little bit around the engine bay. The evergreen round stock is pretty good but is fairly weak, the rigging certainly strengthens the entire frame and makes it a solid unit. All the frame pieces were glued with plastic glue while the rigging is secured with CA.

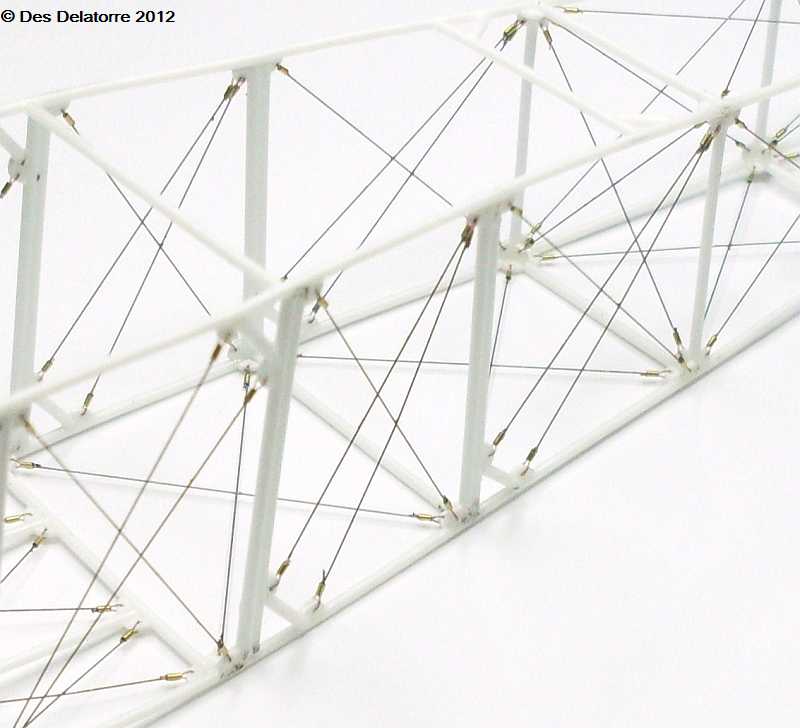

The close-up photo shows the little gussets which needed to be fitted to support the rigging wires, very tedious and time consuming work making and fitting them.

Des.





« Last Edit: August 08, 2012, 08:21:58 AM by Des »
Late Founder of ww1aircraftmodels.com and forum.ww1aircraftmodels.com

Offline Chris Johnson

  • Hero Member
  • *****
  • Posts: 1959
Re: Jeannin Taube - 1:32 scale
« Reply #2 on: August 08, 2012, 08:20:35 AM »
You’re doing your usual spectacular work on this model Des, just as I would expect. I honestly don’t know how you execute such intricate detail but it’s always a treat to see it. Having just visited your web site, I know your aim is to make it as authentic as possible, but I didn’t think it would extend to the hidden framework. Is there a structural reason why you’re doing it, or is it strictly for authenticity? Whatever the case, it’ll be a pity to see it covered up.

Keep up the good work!

Cheers,

Chris
